Bently Nevada 105401-02 Transient Data Sampler Backplane

Quick Overview

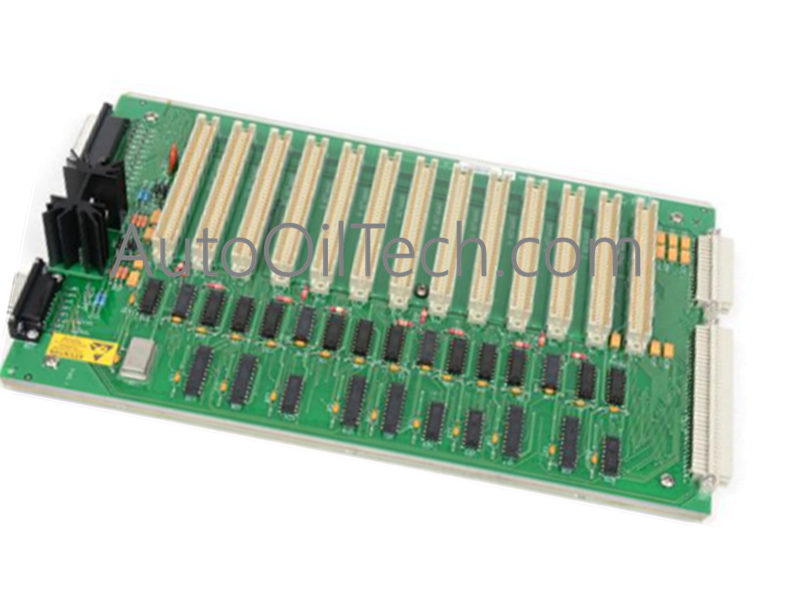

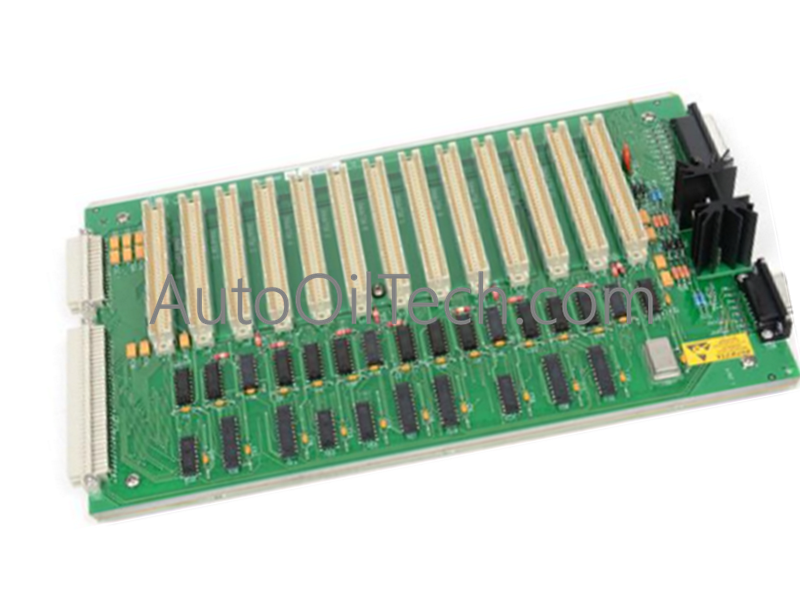

The 105401-02 is a high-performance Sampler Backplane Board (TDX) designed for the Bently Nevada 3500/53 series machinery protection system. As a critical infrastructure component, it serves as the physical and electrical backbone for sampling modules, enabling high-speed real-time data acquisition.

Technical Data

• Product Type: Module Backplane TDX

• System Series: Bently Nevada 3500/53

• Power Supply: 24 V DC

• Input Channels: Multi-channel (Vibration & Temperature)

• Communication: Ethernet and Serial Ports

• Operating Temp: -30°C to +70°C

• Weight: 0.55 kg

Key Features

• High-Speed Data Sampling: Optimized for rapid data collection, ensuring that transient vibration events and sudden temperature spikes are captured with precision.

• Integrated Communication: Features built-in Ethernet and serial connectivity, allowing for efficient data transmission to higher-level management systems and diagnostic software.

• Rugged Infrastructure: Designed to operate in harsh industrial climates, maintaining structural and electrical integrity across a wide temperature range (-30°C to +70°C).

• Multi-Sensor Support: Provides a unified interface for various input types, streamlining the integration of both dynamic vibration probes and static temperature sensors.

• System 1 Compatibility: Acts as a reliable data conduit for Bently Nevada’s condition monitoring software, supporting advanced predictive maintenance programs.
