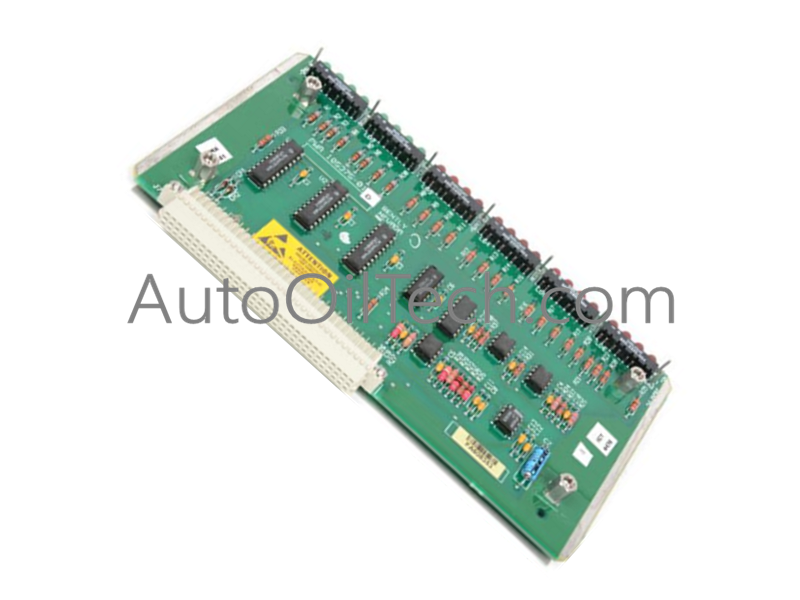

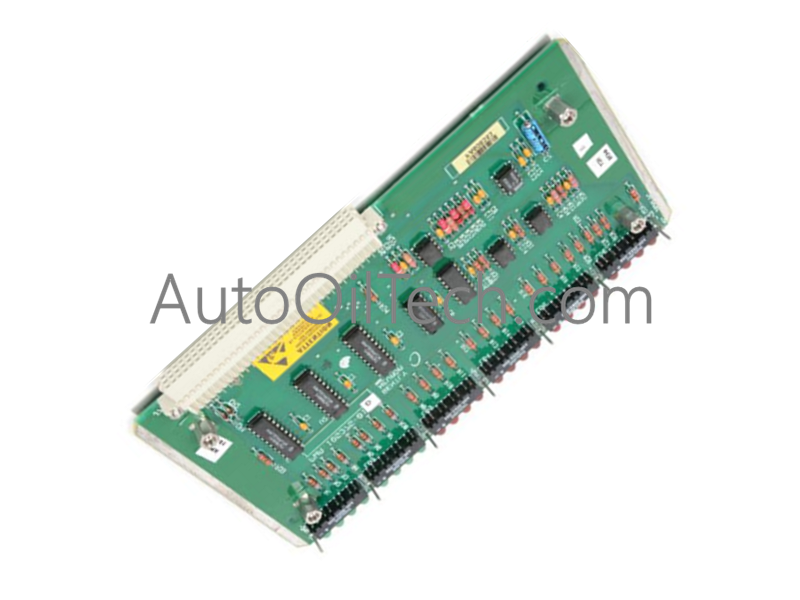

Bently Nevada 105375-01 System Indicator

Quick Overview

The 105375-01 is a specialized LED Indicator Board for the Bently Nevada 3500/53 Series Machinery Protection System. It serves as the primary visual interface for rack status, providing operators with real-time feedback on system health, alarm states, and communication integrity.

• Manufacturer: General Electric (Bently Nevada)

• System Series: 3500/53 System

• Module Type: LED Indicator / Interface Board

• Transient Interface: TDXnet Support

• Data Transmission: Ethernet Link to Data Manager

• Operating Recovery: Immediate Power-Loss Recovery logic

Key Features

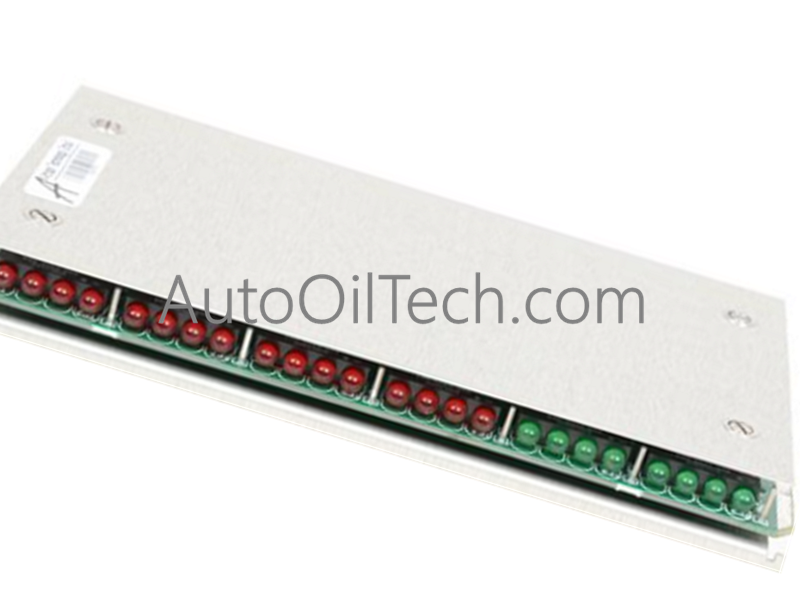

• Visual Diagnostics: Features a high-visibility LED array that provides instantaneous status updates for the entire 3500/53 rack system.

• TDXnet Connectivity: Integrates with the TDXnet Transient Data Interface, allowing for seamless communication with Bently Nevada’s online machinery management software.

• Transient Data Buffering: Equipped with two independent startup and shutdown buffers, ensuring that high-resolution data is captured during the most critical phases of machine operation.

• Advanced Analysis Support: Facilitates the transmission of high-resolution static, orbit, and spectrum data, enabling deep-dive mechanical diagnostics.

• Robust Network Link: Includes a dedicated Ethernet interface for efficient, high-speed data transfer to the System Data Manager and remote monitoring stations.
