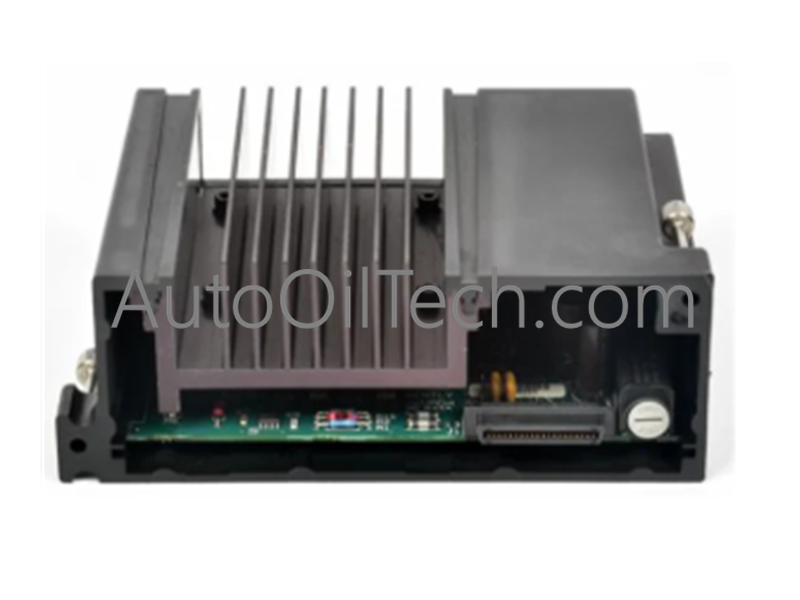

Bently Nevada 1034549-10 Power Supply

Quick Overview

The 1034549-10 is a specialized 24V DC Power Supply Module specifically engineered for the Bently Nevada FieldMonitor™ system. This module is the energy backbone for distributed monitoring, converting raw DC input into the precise logic and transducer voltages required by FieldMonitor modules. Designed for high-reliability industrial environments, it installs directly into the dedicated power slots of 1701/05 or 1701/06 Terminal Bases.

Technical Data

• Part Number: 1034549-10

• Product Type: FieldMonitor Power Supply

• Input Voltage Range: +18 V to +36 V DC

• Inrush Current: 30 Amp peak (Nominal)

• Overvoltage Protection: Sustains up to 50 V DC without damage

• Isolation Voltage: 850 V DC (Primary to Chassis)

• Internal Fuse: 250 V, 3 Amp, slow-blow

• Dimensions (H × W × D): 105 mm x 150 mm x 56 mm

• Weight: 0.57 kg (1.26 lbs)

• Operating Temp: -20°C to +70°C (-4°F to +158°F)

Key Features

• Direct Terminal Base Integration: Engineered to slide into 1701 series terminal bases, providing a tool-free mechanical fit that simplifies field installation and maintenance.

• High Electrical Isolation: Features 850V DC isolation between the primary power and the chassis, protecting downstream modules from ground loops and electrical interference.

• Wide Input Tolerance: Accepts a broad DC input range (+18V to +36V), allowing it to operate reliably on standard 24V battery systems or industrial power loops that may experience voltage fluctuations.

• Integrated Protection: Built-in overvoltage circuitry ensures the power supply survives sudden spikes in the DC line, while the internal slow-blow fuse provides a final layer of safety against catastrophic faults.

• Ruggedized for the Edge: Capable of operating in extreme temperatures from -20°C to +70°C, making it suitable for unconditioned field enclosures located near the machinery.

• Field-Proven Reliability: As a core component of the FieldMonitor ecosystem, this unit is built for continuous 24/7 operation in high-criticality sectors like power generation and oil & gas.
