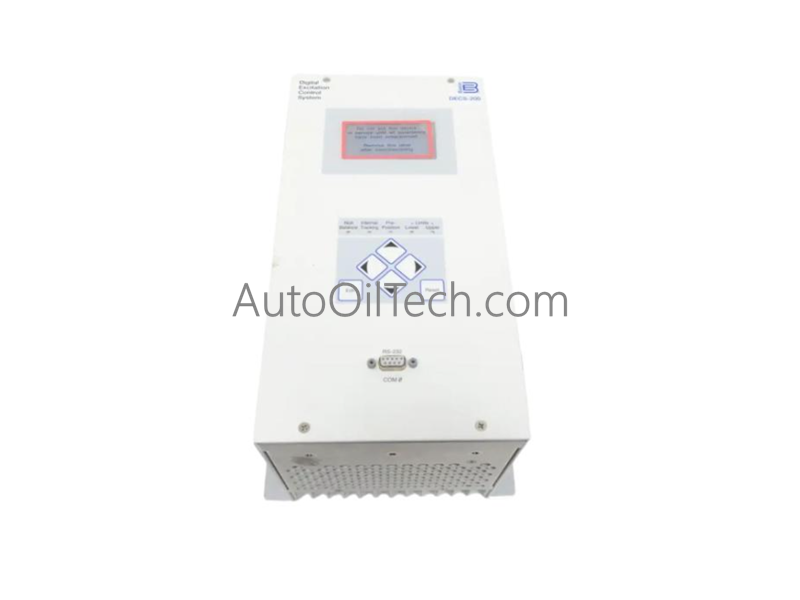

BASLER DECS-200-1L Digital Excitation Control System

Configured for synchronous generator excitation control, the Basler DECS-200-1L (DECS-200-1L Controller Module) provides direct physical/electrical execution of voltage regulation and field current output across power generation management platforms.

Hardware Specifications

Actuator Loop Feedback Response

• V/Hz and field-oriented vector control: The module executes field-oriented control algorithms to regulate generator output, maintaining stable terminal voltage during variable frequency and load transients.
• Harmonic distortion suppression: The output stage utilizes filtering to mitigate harmonic content in the excitation field, protecting winding insulation from high-frequency electromagnetic stress.
• Actuator loop feedback response: High-bandwidth PID control loops process field current feedback signals to provide rapid transient response and active damping of generator oscillations during grid disturbances.
• Thermal heat sink dissipation profiles: The chassis incorporates passive thermal management to maintain semiconductor junction temperatures within limits during continuous high-current field excitation.

Frequently Asked Questions

Q: Does the DECS-200-1L support field-flashing from an external source?

A: Yes, the unit includes logic to support field-flashing via a dedicated input if the residual magnetism is insufficient for initial voltage build-up during start-up sequences.

Q: Is the unit compatible with redundant control configurations?

A: The DECS-200-1L can be configured for parallel operation and reactive power sharing; however, redundant master-slave failover requires external interlocks and specific parameter matching between the primary and standby excitation controllers.

Field Installation Guidelines

• Mounting: Install the controller in an upright position within an enclosure to facilitate effective convection cooling. Ensure sufficient clearance for the cable entry and terminal block access.
• Grounding: Connect the chassis ground terminal to the station common earth bus using a low-impedance copper conductor. This is required to maintain electromagnetic compatibility and to provide a reference for shielding control signal cables.
• Wiring: Keep AC sensing circuits (PT inputs) separate from high-current field output wiring to prevent induced noise. All control and communication cabling should utilize shielded, twisted-pair conductors with shields terminated to a common grounding point at the controller to mitigate external electromagnetic interference.
