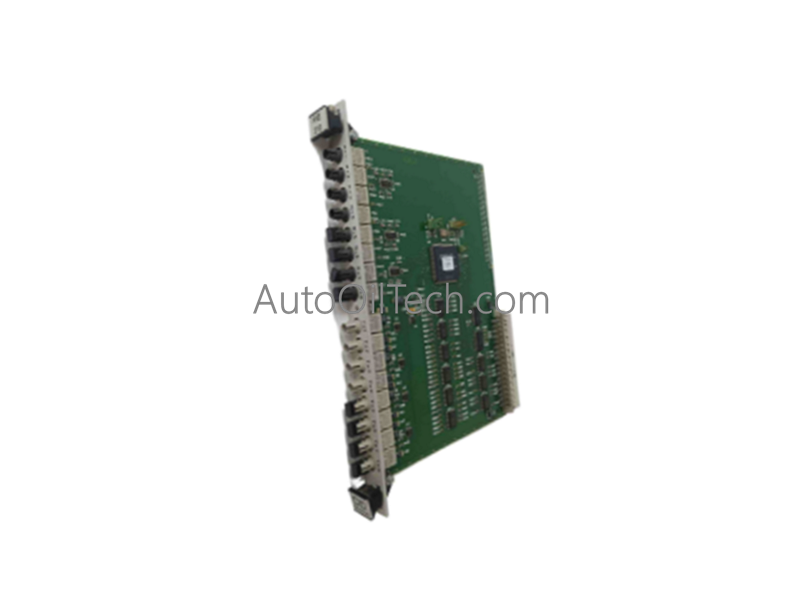

ALSTOM PIB310 Power Interface

Configured for motion control and protection in industrial automation platforms, the Alstom PIB310 (PIB310 Power Interface Board) provides direct physical/electrical execution of PID algorithms, signal processing, and relay interlocking.

Suffix Breakdown & Model Matrix

The PIB310 functions as a dual-purpose hardware platform. The "PCB" configuration operates as a motion control module (IP20), while the "Relay" configuration utilizes integrated harmonic restraint and CT inputs (IP52 front panel) for power system protection applications.

Hardware Specifications

Industrial Control and Network Characteristics

• Backplane bus communication velocity: The PIB310 utilizes high-speed backplane integration to manage synchronous data exchange. This velocity is necessary to support deterministic motion control loops and sub-cycle differential protection timing across Alstom control platforms.
• Profinet / EtherNet/IP deterministic networks: The module facilitates integration into industrial networks via dual RS485 and 10/100 Mbps Ethernet channels, ensuring low-latency communication between the control logic and the physical actuators or protective relaying nodes.
• I/O density scaling: The high-density routing supports a multi-layer design, allowing for the consolidation of digital I/O channels and CT inputs within a modular footprint, suitable for complex robotic or substation applications.
• Firmware flash compatibility: The hardware architecture supports field-upgradeable firmware, permitting the transition between motion control logic and protection relay algorithms to accommodate evolving industrial application requirements.

Frequently Asked Questions

Q: Does the PIB310 support hot-swapping within the control rack?

A: The PIB310 is designed for modular rack mounting; however, hot-swapping is not supported. Ensure the control power is disconnected before insertion or extraction to prevent electrical surges from damaging the high-density signal pins on the backplane connector.

Q: How is the harmonic restraint feature implemented in the relay variant?

A: The relay variant employs a 64 samples/cycle sampling rate to perform real-time digital signal processing, enabling the hardware to block 2nd and 5th harmonics during transformer inrush conditions, thereby preventing maloperation of the differential protection scheme.

Field Installation Guidelines

• Mounting: Seat the PIB310 module into the designated industrial rack or panel enclosure. Ensure the PCB variant is protected within an IP20-rated environment, while the relay variant front panel must be sealed to meet IP52 ingress protection standards.
• Grounding: Terminate the chassis ground connection to the cabinet's low-impedance earth bus. This is mandatory to ensure signal integrity for the 100 MHz high-frequency pathways and to facilitate the suppression of electromagnetic noise in high-speed motion loops.
• Wiring: Utilize shielded, twisted-pair cabling for all communication (RS485/Ethernet) and CT signal paths. Route these lines through separate dedicated conduits at least 150 mm away from high-current motor leads or power switching circuits to prevent inductive interference injection.
