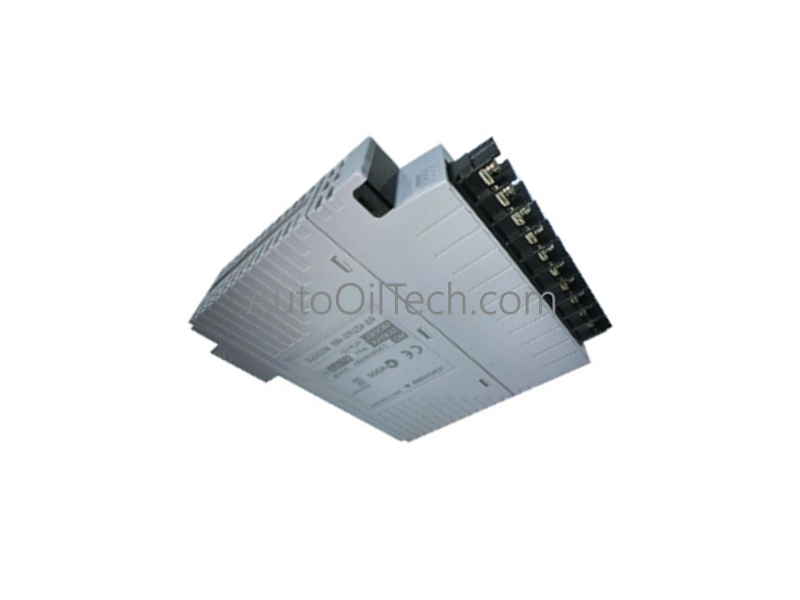

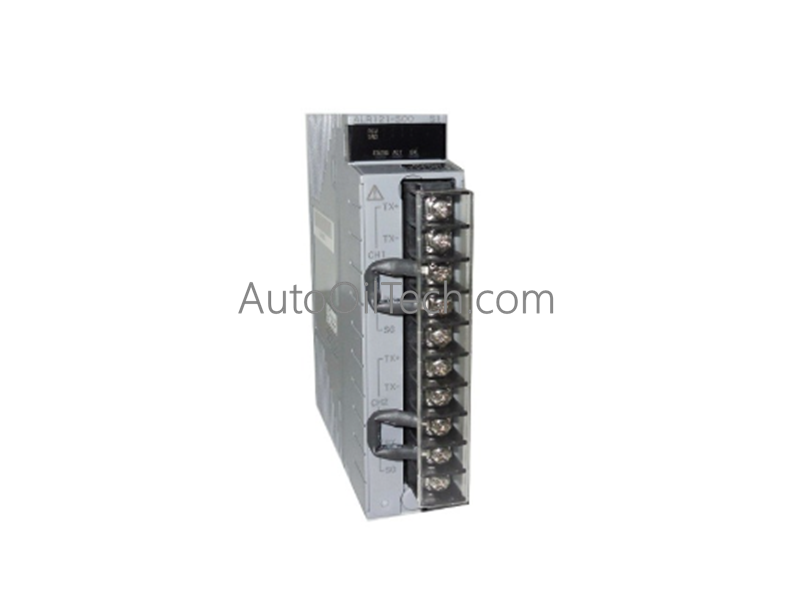

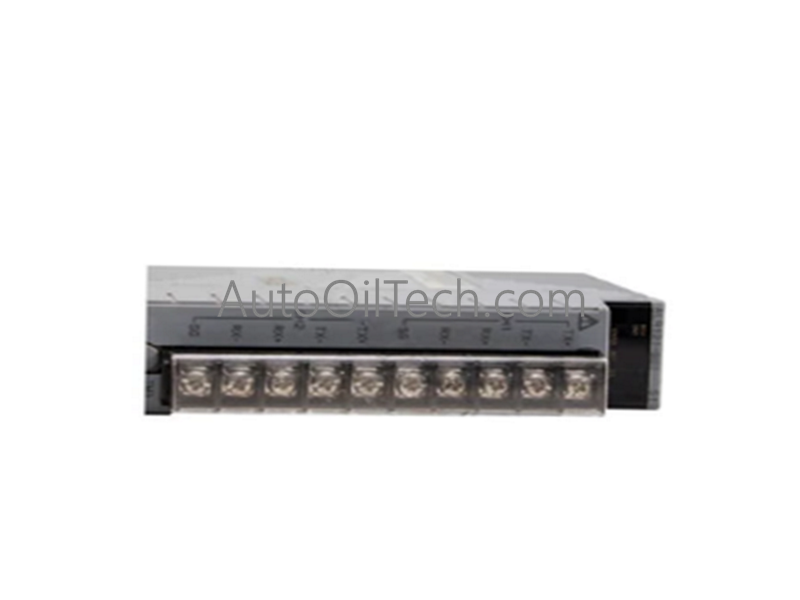

ALR121-S00 S1 Yokogawa Serial Module

The Yokogawa ALR121-S00 S1, also cataloged as the ALR121 Serial Communication Module, operates as a dedicated hardware component for half-duplex subsystem integration and data conversion within distributed control system (DCS) architectures.

Suffix Breakdown & Model Matrix

The ALR121 series utilizes explicit engineering suffixes to define hardware builds, communication interface variants, and hardware style revisions. Below is the technical breakdown for the ALR121-S00 S1 configuration:

• ALR121: Core base model designator for the dual-port serial communication module.
• -S: Standard type construction baseline for standard industrial enclosure installation.
• 0: Phase indicator slot mapping designator.
• 0: Basic functionality block revision baseline.
• S1: Style code indicating the physical hardware design revision or updated sub-component generation.

Hardware Specifications

Process Control System Specifications

• 4-20 mA HART Loop Protocol Network Arbitration The serial communication module establishes a deterministic hardware gateway over its dual RS-422/RS-485 channels, linking external subsystems like PLCs or specialized gas analyzers directly into the primary DCS architecture. It maps external variables into internal system register blocks, allowing digital subsystem data to coordinate alongside central 4-20 mA regulatory loops.
• Channel-to-Channel Isolation Performance Ground loops and common-mode noise are suppressed via built-in electrical isolation barriers. This design prevents field-side electrical anomalies, lightning-induced surges, or localized short circuits on the long-distance RS-485 differential lines from migrating to adjacent communication paths or disrupting the internal backplane logic bus.

Frequently Asked Questions

Q: How does the ALR121-S00 S1 manage transmission flow control over its half-duplex serial channels?

A: The module executes start-stop asynchronous timing constraints combined with precise line arbitration logic. This configuration controls the transmit and receive sequencing over the shared RS-485 differential pair, preventing data packet collisions and data truncation during polling cycles.

Q: What is the significance of the S1 suffix on this specific communication module?

A: The S1 suffix represents the manufacturer's internal style code revision. It denotes a specific hardware update layer—such as updated internal component routing or refreshed board-level circuitry—while maintaining total functional and backplane compatibility with original ALR121 series modules.
