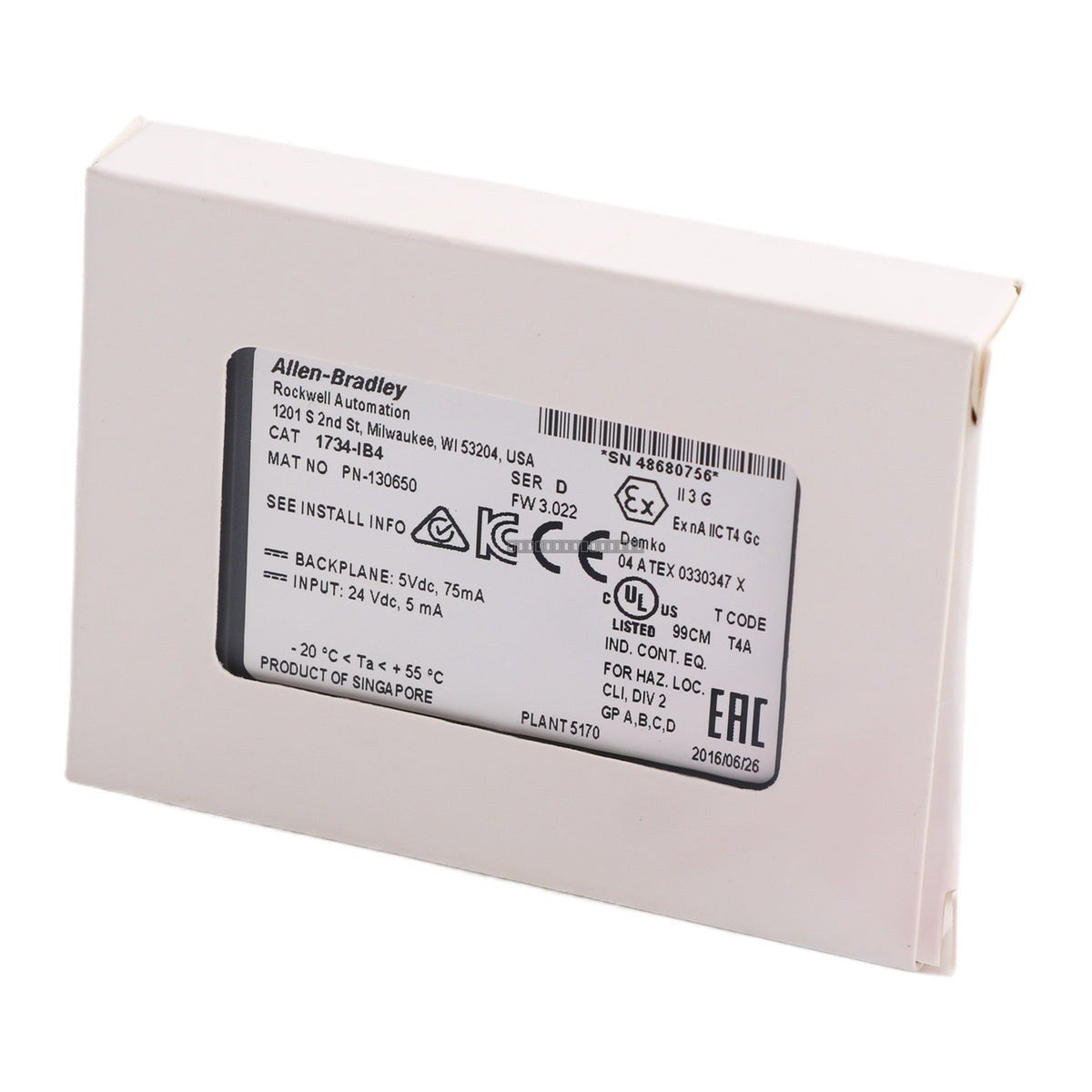

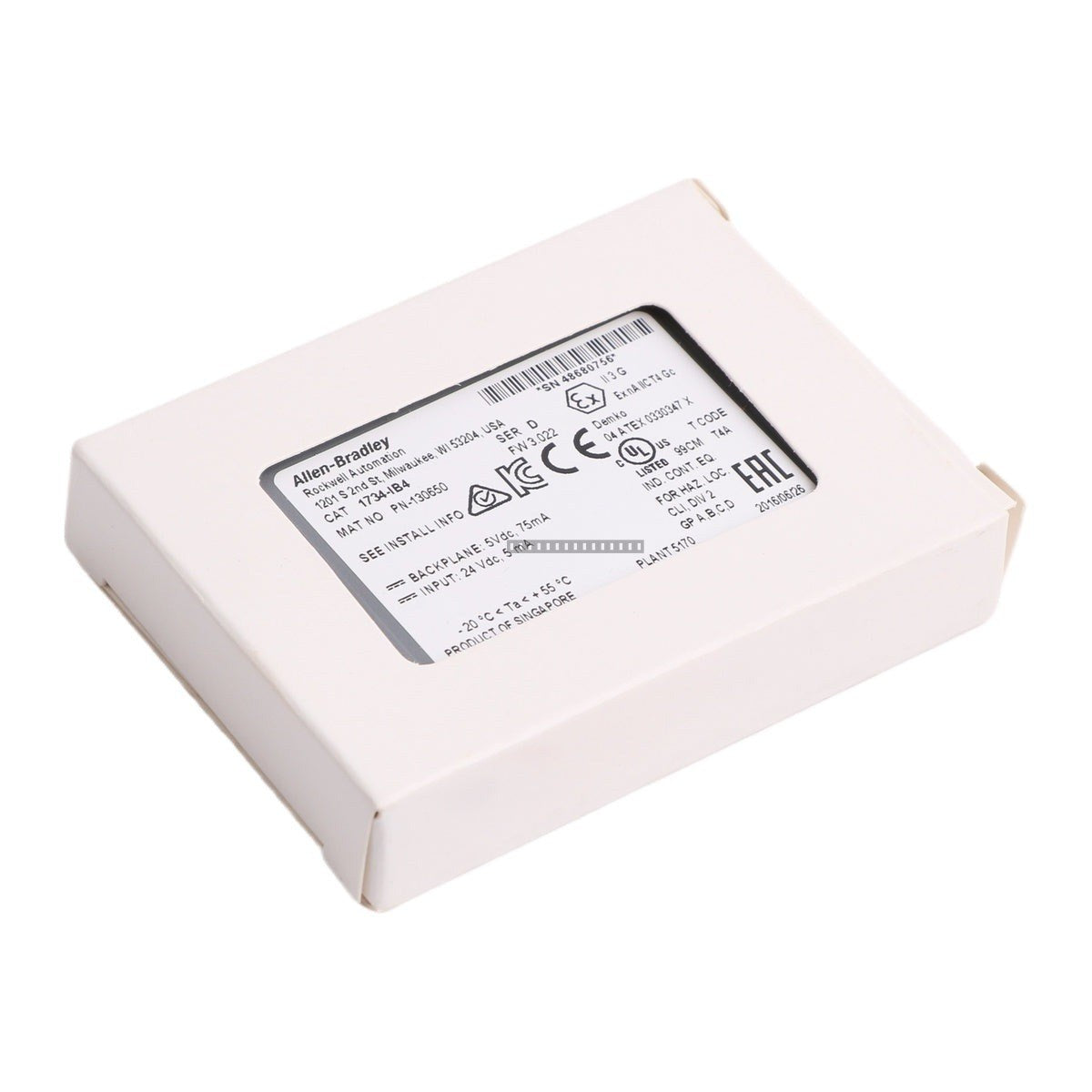

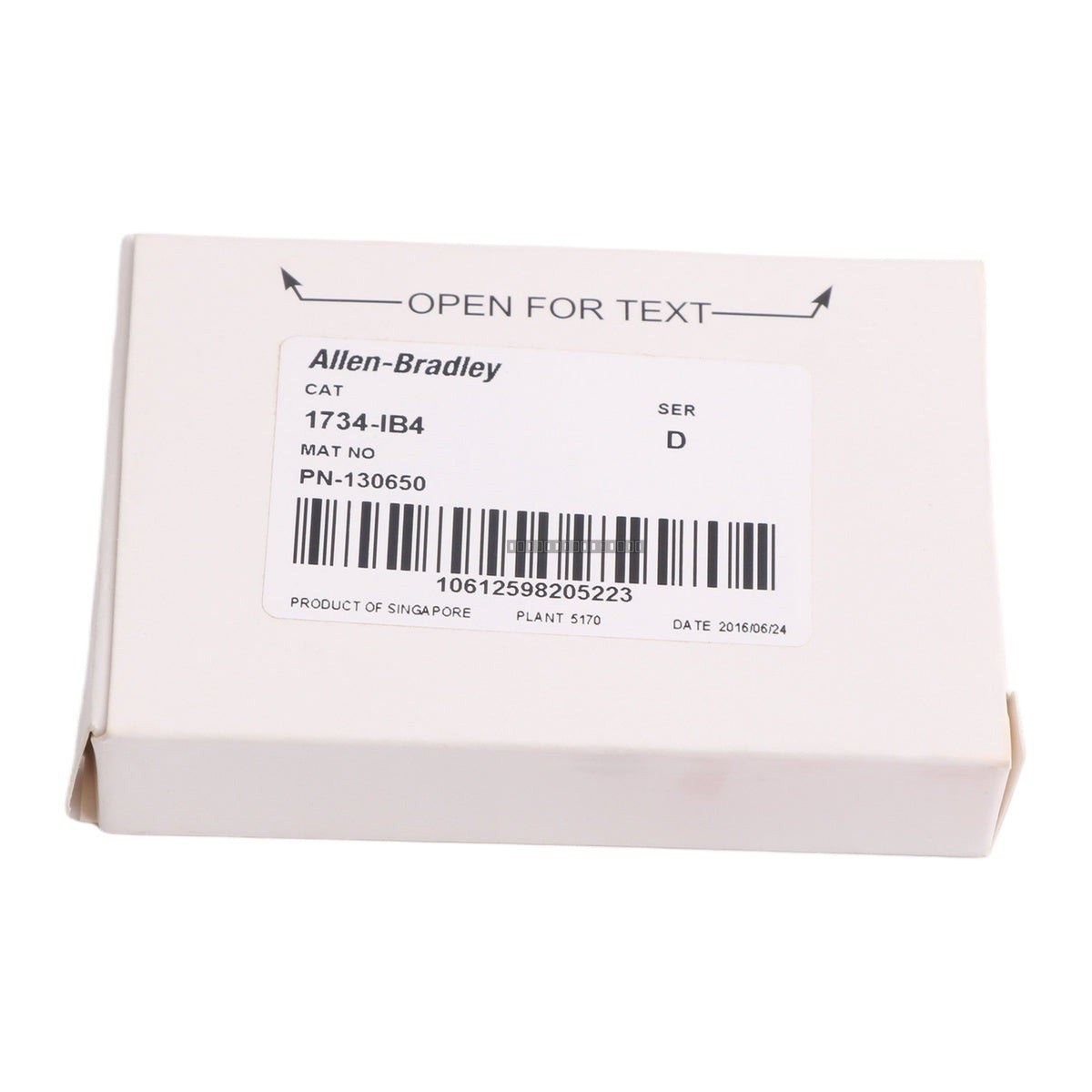

The Allen-Bradley 1734-IB4 is a 4-channel digital input module designed for the POINT I/O system. This compact module is engineered to interface with 24V DC field devices, providing reliable signal acquisition for industrial control applications. As part of the POINT I/O platform, it offers a space-saving solution for distributed I/O architectures, allowing for flexible configuration and easy integration into larger automation networks.
Features
4-channel digital input configuration.
Designed for 24V DC operation.
Compact, modular design for high-density I/O requirements.
Supports DIN-rail mounting for efficient cabinet space utilization.
Seamless integration with the Allen-Bradley POINT I/O communication adapters.
Technical Specifications
Product Model
1734-IB4
Input Type
Digital (DC)
Number of Channels
4
Voltage Rating
24V DC
Mounting Style
DIN Rail
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the power is disconnected from the I/O base and the communication adapter before installing or removing the module.
Mount the module onto a standard 35mm DIN rail by aligning it with the POINT I/O base unit.
Ensure the module is securely locked into the base unit to maintain proper electrical contact with the backplane.
Use shielded cables for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate clearance around the module to ensure proper ventilation and heat dissipation.
Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.
FAQ
What is the primary function of the 1734-IB4?
The 1734-IB4 is a digital input module used to detect the status of 24V DC field devices and transmit that data to a PLC or controller via the POINT I/O network.
Is this module compatible with other POINT I/O components?
Yes, the 1734-IB4 is designed to be used with standard POINT I/O communication adapters and terminal bases within the same product family.
What type of mounting does this module require?
This module is designed for standard 35mm DIN-rail mounting, typically installed on a POINT I/O terminal base.
