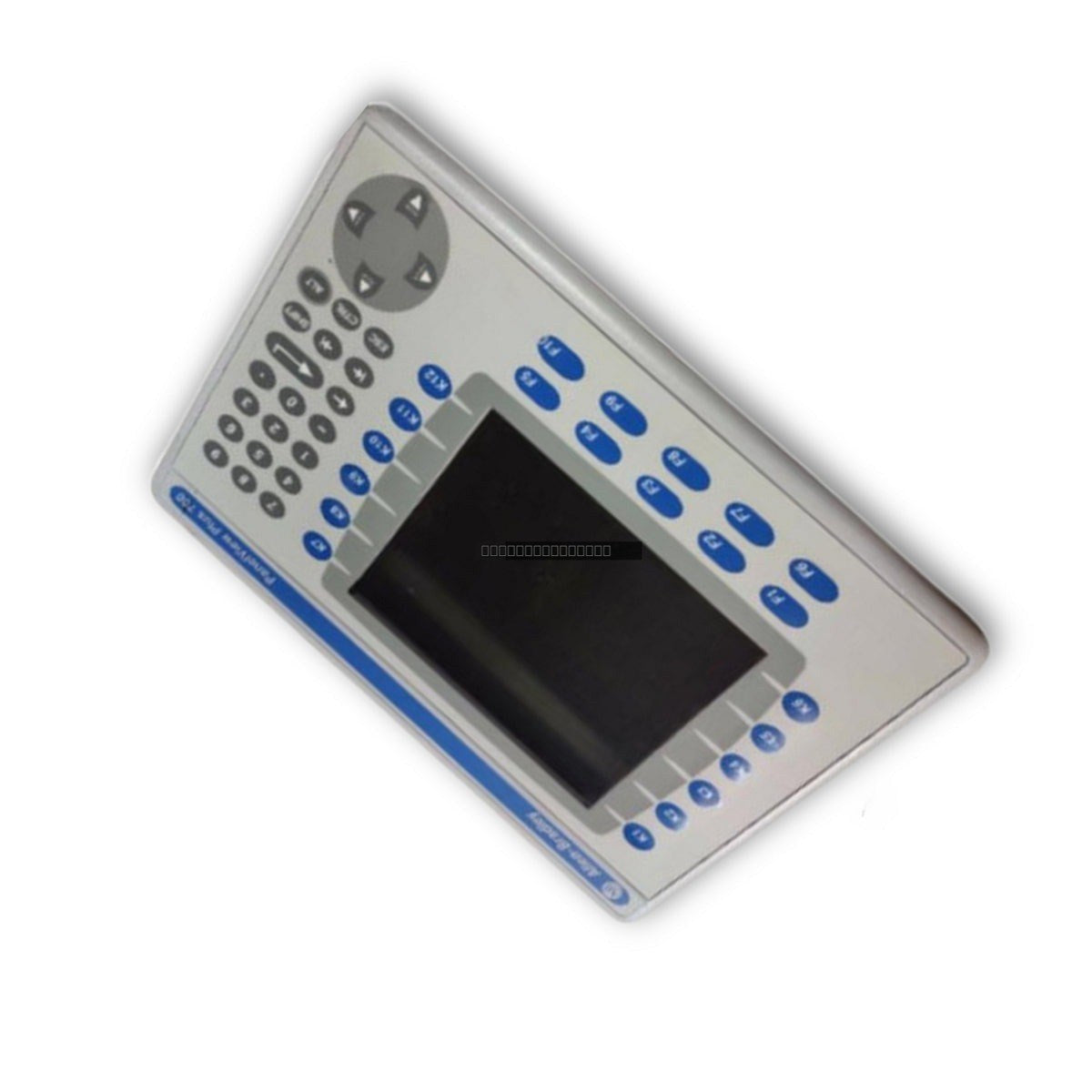

The Allen-Bradley 2711P-K10C4D8 is a PanelView Plus 6 1000 operator terminal designed for robust industrial human-machine interface (HMI) applications. This unit features a 10.4-inch color display and a dedicated keypad interface, allowing operators to interact with machine processes, monitor real-time data, and input setpoints effectively.
Features
10.4-inch color display with 640 x 480 resolution (18-bit color graphics).
Integrated keypad interface including function keys (F1-F16, K1-K16), numeric keypad, and navigation buttons.
512 MB RAM and 512 MB non-volatile flash memory for application storage.
Connectivity options include embedded Ethernet (EtherNet/IP), RS-232 serial port, and two USB host ports.
Operates on an 18-32V DC input power supply.
Applications
Packaging and palletizing lines for high-speed control and jam clearing.
Material handling systems, including conveyor control and ASRS management.
Process skids for chemical dosing, pumping, and filtration.
Food and beverage processing environments, including mixing and bottling lines.
Machine tool and CNC support for coolant and chip removal monitoring.
Technical Specifications
Model
2711P-K10C4D8
Display Size
10.4 inches
Resolution
640 x 480
Input Type
Keypad
Memory
512 MB RAM / 512 MB Flash
Input Voltage
18-32V DC
Communication Ports
Ethernet, RS-232, 2x USB Host
Weight
4.28 kg
Installation Guidelines
Panel Cutout: Prepare a precise cutout in the enclosure; ensure the area is free of metal debris before installation.
Sealing: Ensure the integrated sealing gasket is properly seated against the enclosure to maintain the required NEMA/IP rating.
Mounting: Insert the terminal into the cutout and secure it using the provided mounting clips. Tighten screws in a cross-pattern to 0.90–1.1 N·m (8–10 lb·in) to ensure uniform pressure.
Power Wiring: Connect to a stable 18-32V DC supply. Always isolate power before performing wiring tasks.
Environment: Install in a location with adequate ventilation to prevent overheating. Avoid high-EMI sources near communication cabling.
FAQ
What is the primary input method for this terminal?
The 2711P-K10C4D8 utilizes a physical keypad interface, which includes function keys, numeric keys, and directional buttons for operator input.
Can this terminal be used on an EtherNet/IP network?
Yes, the unit includes an embedded Ethernet port that supports EtherNet/IP for real-time I/O messaging and data exchange with controllers.
What should I do if the unit fails to power up?
Check the DC power supply connections. A common issue in DC-powered PanelView units is a blown internal fuse, often caused by a short circuit between the power supply and the chassis.
