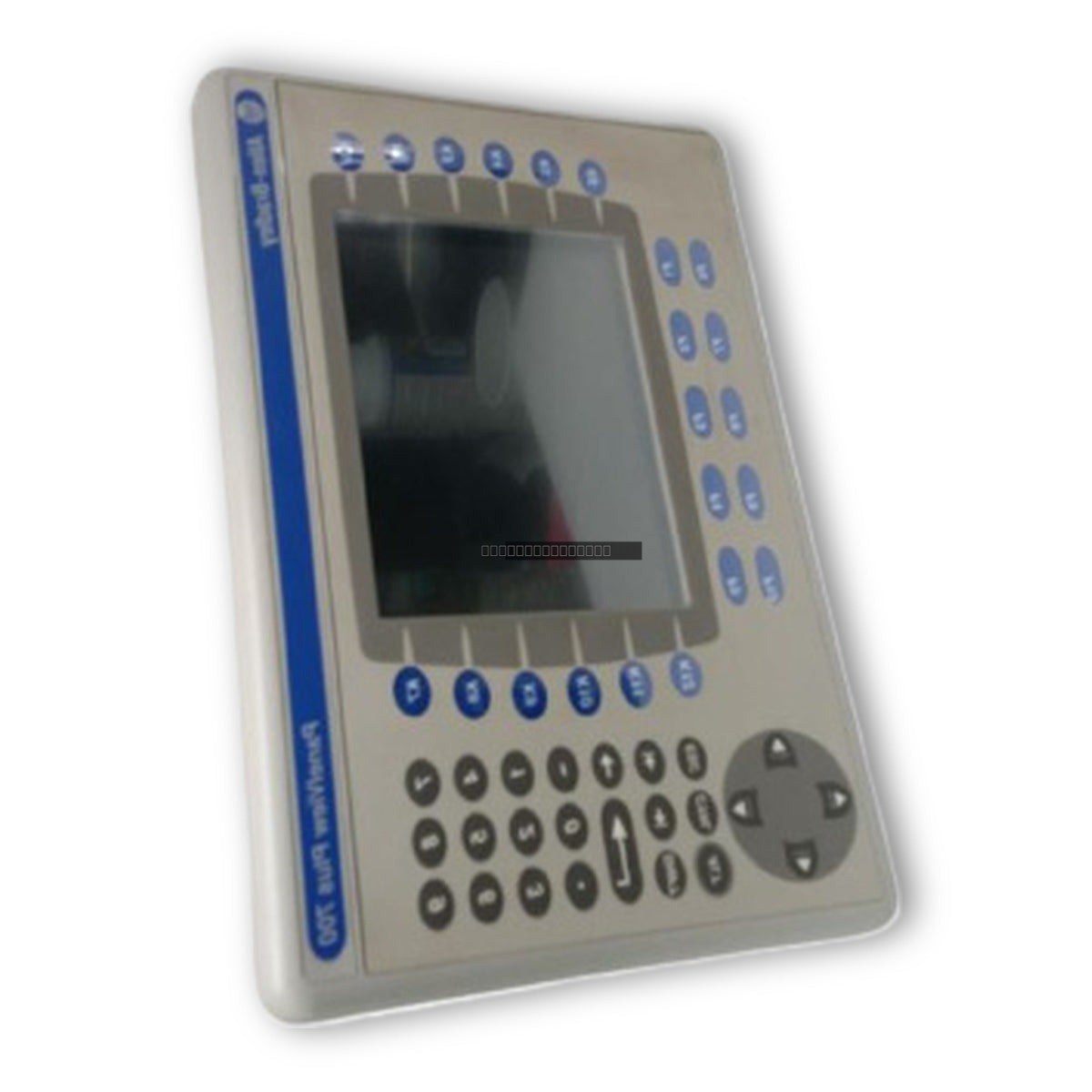

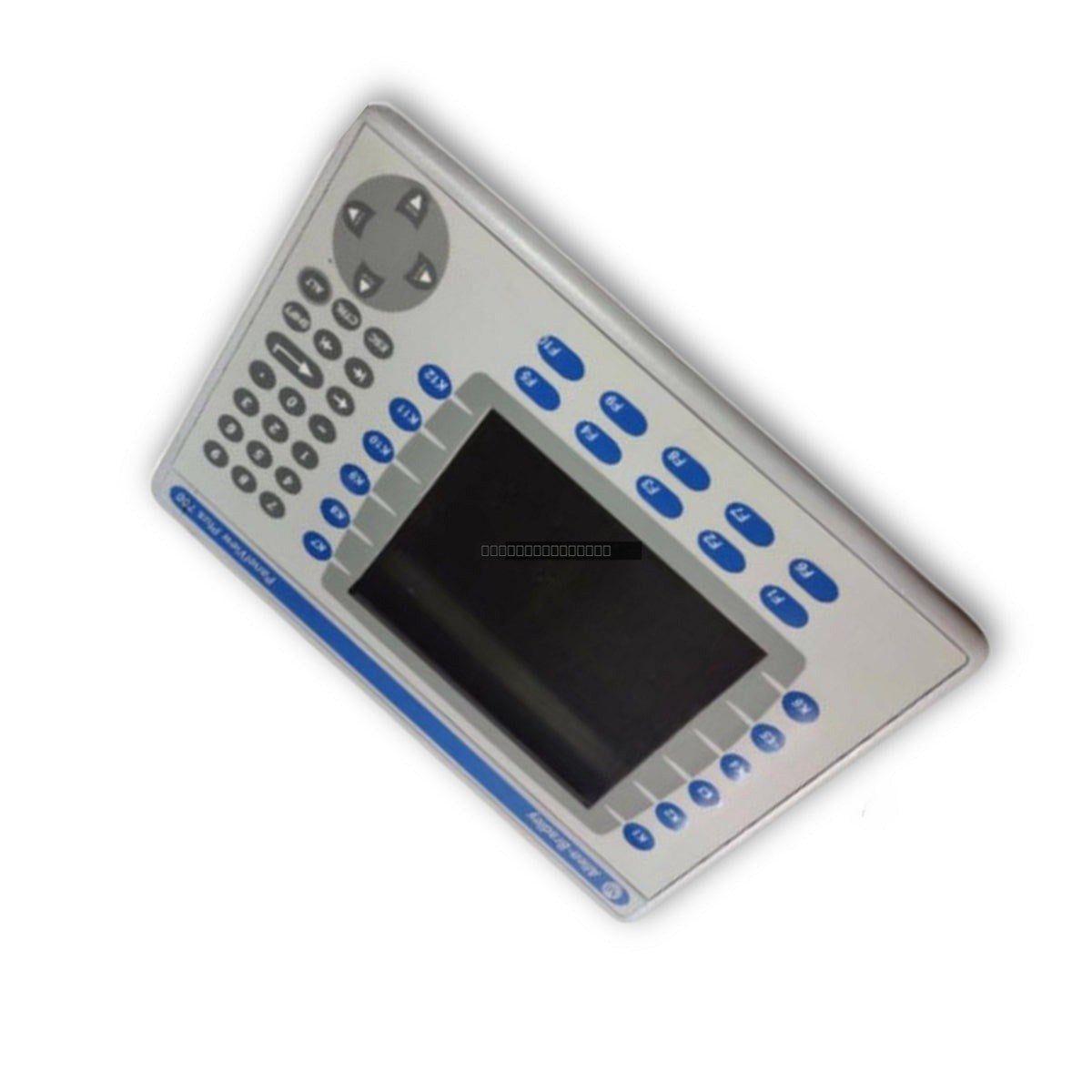

The Allen-Bradley 2711P-B7C4D1 is a PanelView Plus 700 operator interface terminal designed for industrial visualization and control applications. This unit features a 6.5-inch color active-matrix TFT display with a resolution of 640 x 480 pixels, providing clear graphical feedback for machine and process monitoring. The terminal is equipped with both a touch screen and a keypad, offering flexible input methods for operators in demanding environments.
Features
Integrated keypad with 22 function keys (F1-F10 and K1-K12) and touch-screen interface.
6.5-inch color display supporting 18-bit color graphics.
Connectivity options include Ethernet, RS-232, and two USB ports for peripheral integration.
Robust memory configuration with 512 MB RAM and 512 MB non-volatile storage.
Designed for 24V DC nominal input voltage operation.
Technical Specifications
Model
2711P-B7C4D1
Display Size
6.5 inches
Resolution
640 x 480 (18-bit color)
Luminance
300 cd/m2 (Nits)
Input Voltage
18-32V DC (24V DC nominal)
Power Consumption
70 W max
Communication
Ethernet, RS-232, USB
Memory
512 MB RAM / 512 MB Non-volatile
Installation Guidelines
Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain the required NEMA/IP seal rating.
Use shielded communication cables for Ethernet and RS-232 connections to minimize electromagnetic interference (EMI).
Verify that the power supply provides a stable 24V DC source within the 18-32V range.
Maintain proper ventilation around the unit to prevent overheating, as the terminal is convection-cooled.
Always disconnect power before installing or removing the logic module or communication cables.
Ensure the unit is properly grounded to the enclosure chassis to protect against electrical surges.
FAQ
What is the primary input method for this terminal? The 2711P-B7C4D1 supports both touch-screen input and a physical keypad with 22 dedicated function keys.
Does this unit support Ethernet communication? Yes, it includes an integrated Ethernet port for network connectivity, alongside RS-232 and USB ports.
What is the required power supply for this model? This model operates on a 24V DC nominal input, with an acceptable operating range of 18-32V DC.
