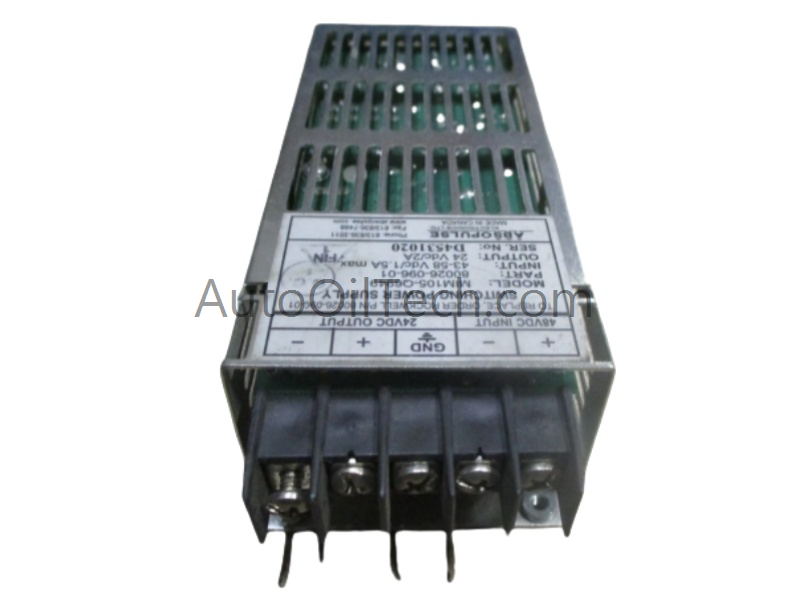

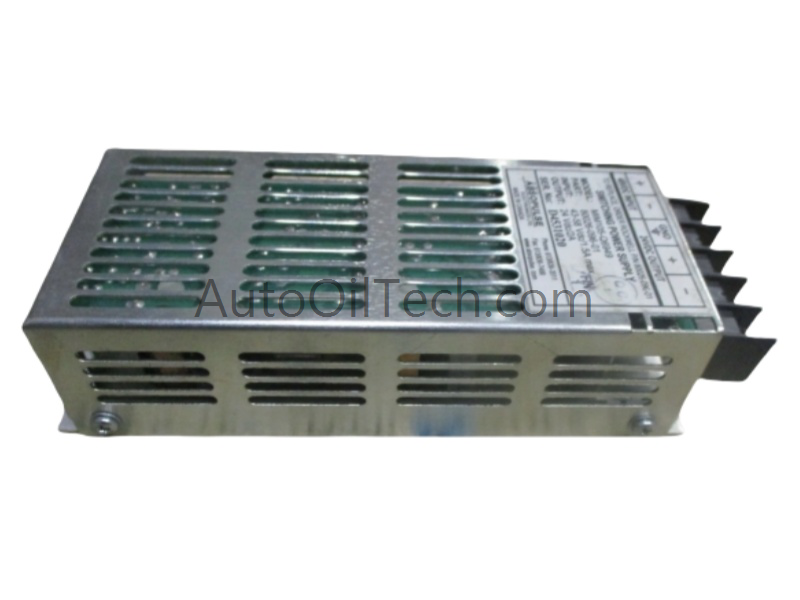

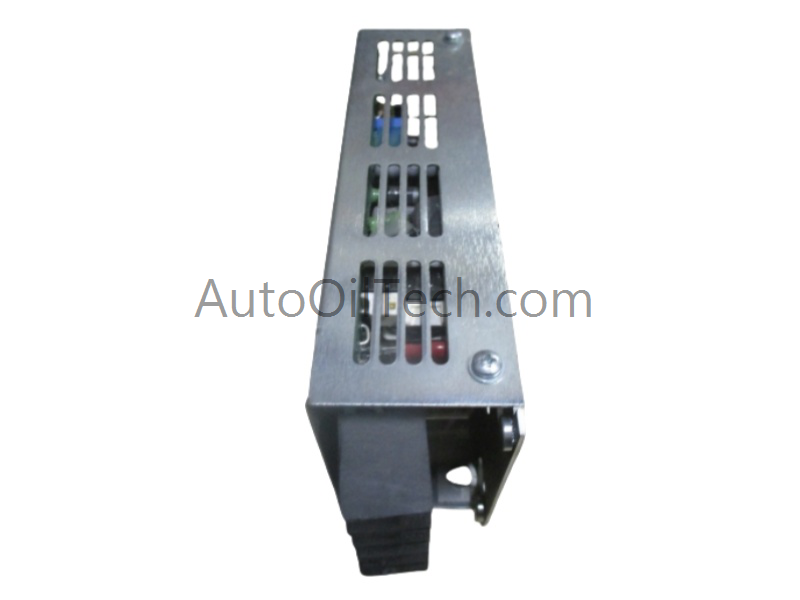

The Allen-Bradley MIM105-Q6949 80026-096-01 is a compact DC switching power supply engineered for industrial automation. It accepts a 48V DC input at 1.5A max and delivers a stable 24V DC output at 2A, ensuring precise and regulated voltage for sensitive automation systems. With its efficient DC/DC conversion and robust design, the MIM105-Q6949 80026-096-01 provides reliable power distribution in space-constrained installations.
Technical Specifications
Parameter
Value
Model Number
MIM105-Q6949 80026-096-01
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Power Supply
Input Voltage
48V DC, 1.5A max
Output Voltage
24V DC, 2A
Conversion Type
DC/DC switching
Dimensions
20.7 × 5 × 2.5 cm
Weight
0.1 kg
Protection Features
Stable regulated output, durable design
System
PLC integration
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
Compact switch-mode design for easy integration into control cabinets.
Stable 24V DC regulated output protects sensitive automation components.
High reliability with minimal voltage fluctuation for continuous operation.
Lightweight and space-efficient form factor for constrained installations.
Seamless compatibility with Allen-Bradley automation systems.
