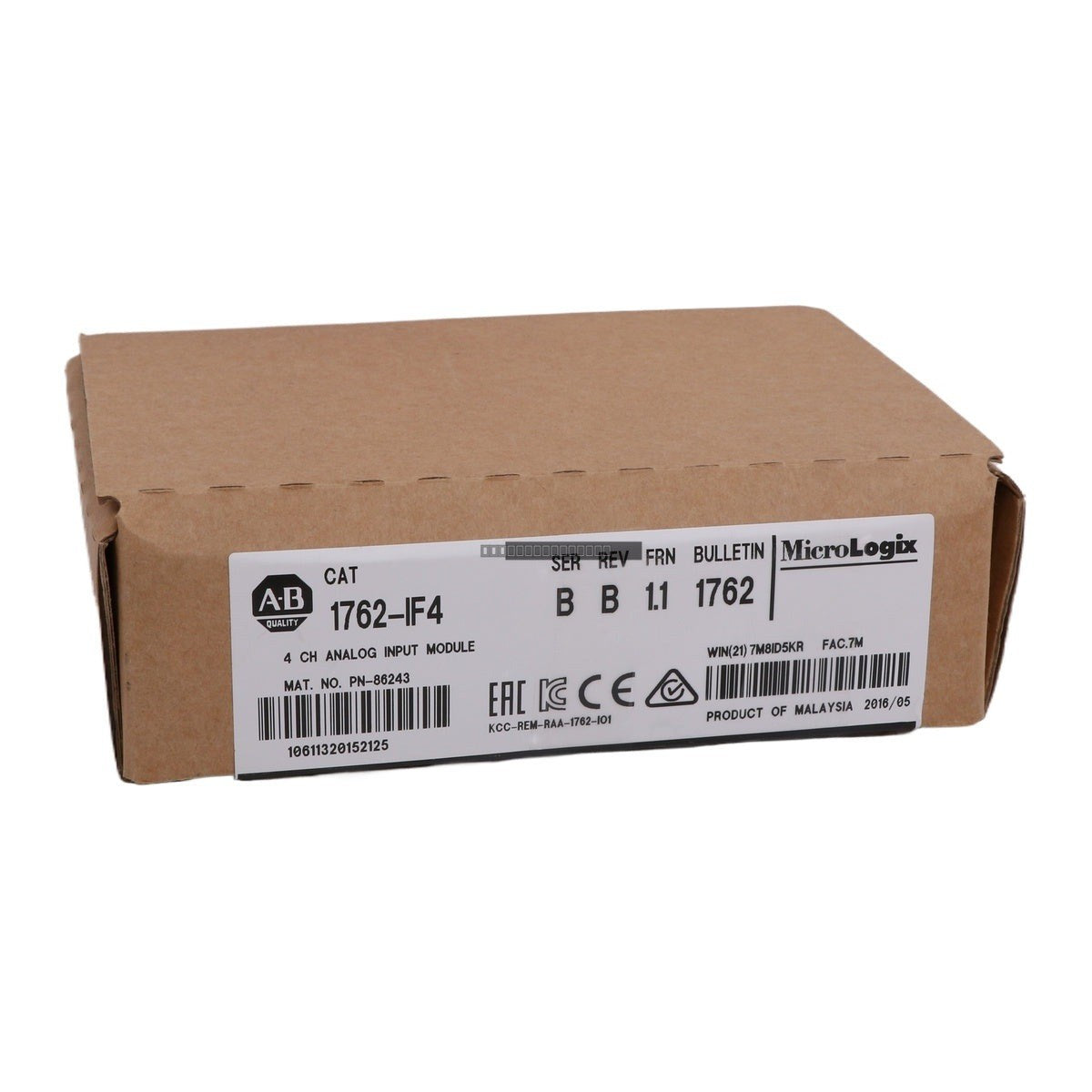

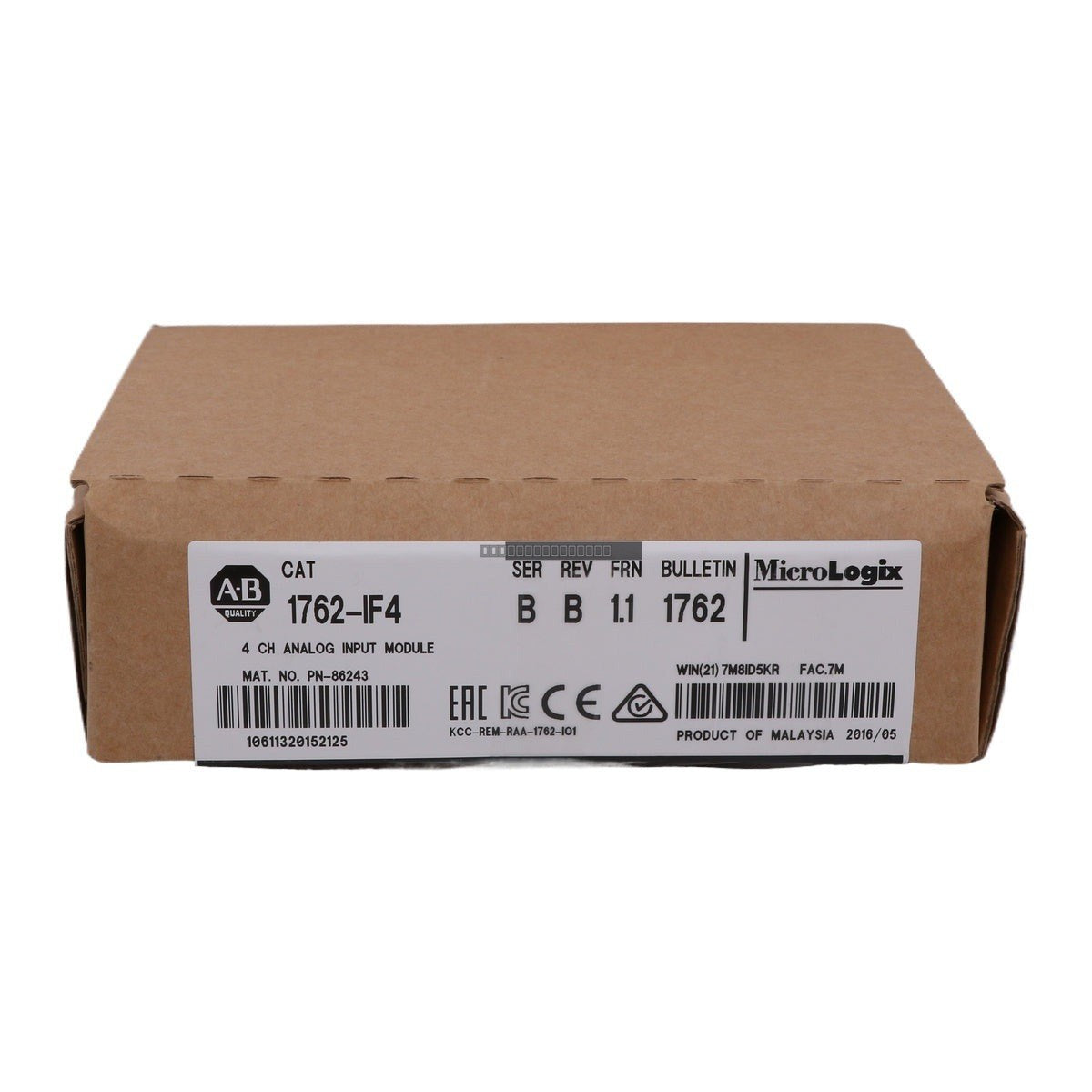

The Allen-Bradley 1762-IF4 is a high-performance analog input expansion module designed for use with the MicroLogix 1200 and 1400 programmable logic controller systems. This module provides four differential, bipolar analog input channels, allowing for precise monitoring of voltage and current signals in industrial automation environments. It is engineered to integrate seamlessly into the MicroLogix I/O bus, providing reliable data acquisition for process control applications.
Features
Four differential, bipolar analog input channels.
Supports both voltage (-10.5 to +10.5V DC) and current (4 to 20 mA) signal ranges.
High-resolution 15-bit data conversion for accurate signal processing.
Repeatability of ±0.12% for consistent measurement performance.
Compact design optimized for MicroLogix expansion racks.
Technical Specifications
Product Model
1762-IF4
Product Family
MicroLogix
Number of Inputs
4 Differential (Bipolar)
Voltage Range
-10.5 to +10.5V DC
Current Range
4 to 20 mA (Full range -21 to +21 mA)
Resolution
15 bit
Repeatability
±0.12%
Weight
0.2 kg
Installation Guidelines
Ensure the controller power is disconnected before installing or removing the module from the I/O bus.
Mount the module in a clean, dry environment with adequate ventilation to prevent overheating.
Use shielded twisted-pair cabling for analog signal connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the cable shields at the signal source or the module common, depending on system design requirements.
Verify that all terminal connections are secure and that the module is firmly seated in the expansion slot.
FAQ
What is the primary function of the 1762-IF4?
The 1762-IF4 is an analog input module that converts external voltage or current signals into digital values that the MicroLogix PLC can process for control and monitoring tasks.
Is this module compatible with all MicroLogix controllers?
The 1762-IF4 is specifically designed for the MicroLogix 1200 and 1400 series. Please verify your specific controller model's compatibility with 1762-series expansion I/O before installation.
Can this module handle both voltage and current inputs?
Yes, the module supports both voltage (-10.5 to +10.5V DC) and current (4 to 20 mA) signals, which can be configured per channel via the PLC software.
