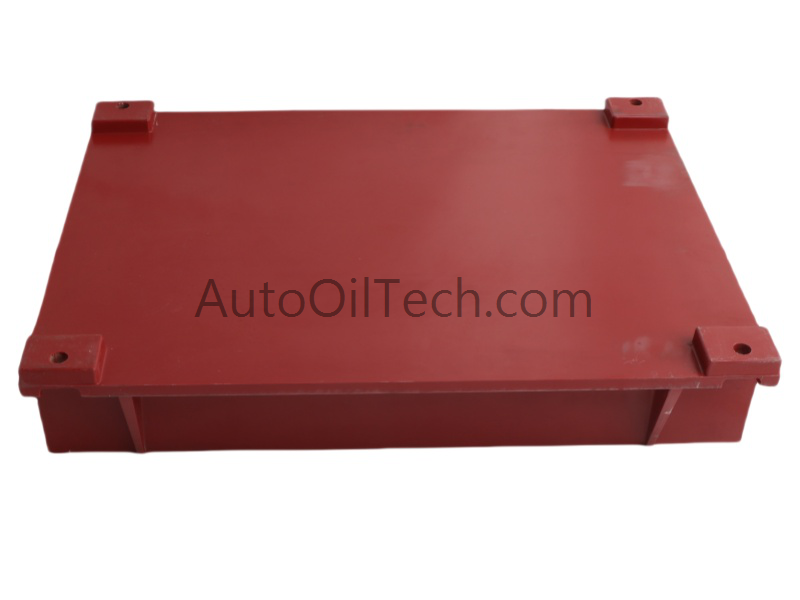

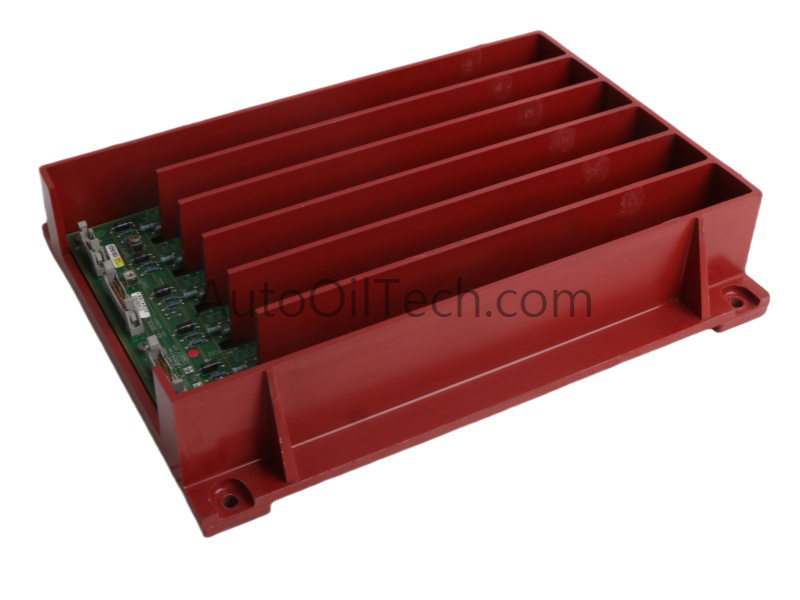

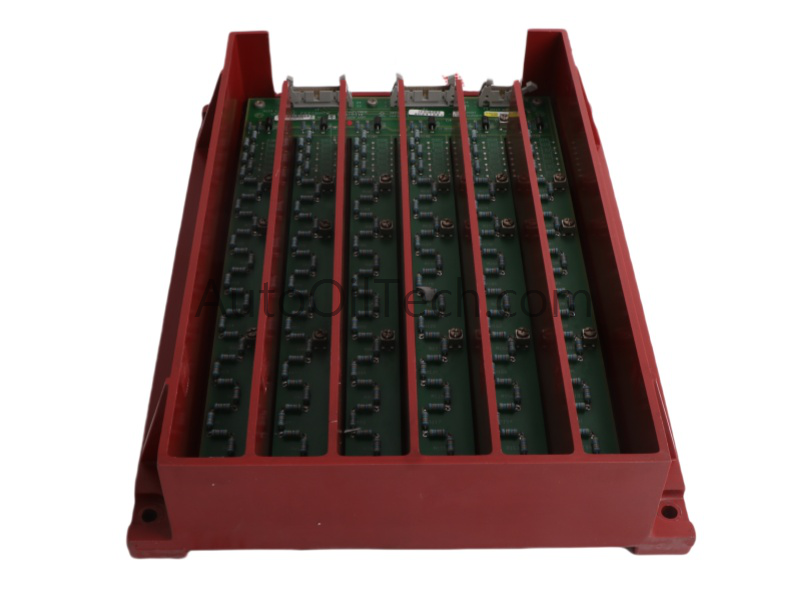

The Allen-Bradley 81000-199-53-R Interface Board is a precision-engineered voltage feedback module designed for reliable analog signal processing in industrial automation. With high input impedance and fine resolution, it ensures minimal signal loading and accurate feedback for demanding control applications.
Technical Specifications
Parameter
Value
Model Number
81000-199-53-R
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Interface Board
Input Range
±10V DC
Input Impedance
1 MΩ
Output
Buffered 0–10V DC
Resolution
16-bit (0.15 mV)
Accuracy
±0.1% full scale
Bandwidth
10 kHz (-3 dB)
Power Supply
24V DC ±10%
Current Draw
50 mA
Dimensions
38.3 × 28.8 × 7.8 cm
Weight
3.6 kg
System
PLC integration
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
High input impedance (1 MΩ) preserves signal integrity with minimal loading.
16-bit resolution ensures fine control and precise feedback.
Buffered 0–10V DC output provides stable downstream signal transmission.
Low power consumption (50 mA at 24V DC) supports efficient operation.
Wide bandwidth (10 kHz) enables high-speed signal processing in dynamic environments.
Designed for seamless integration into advanced PLC and machine control systems.
