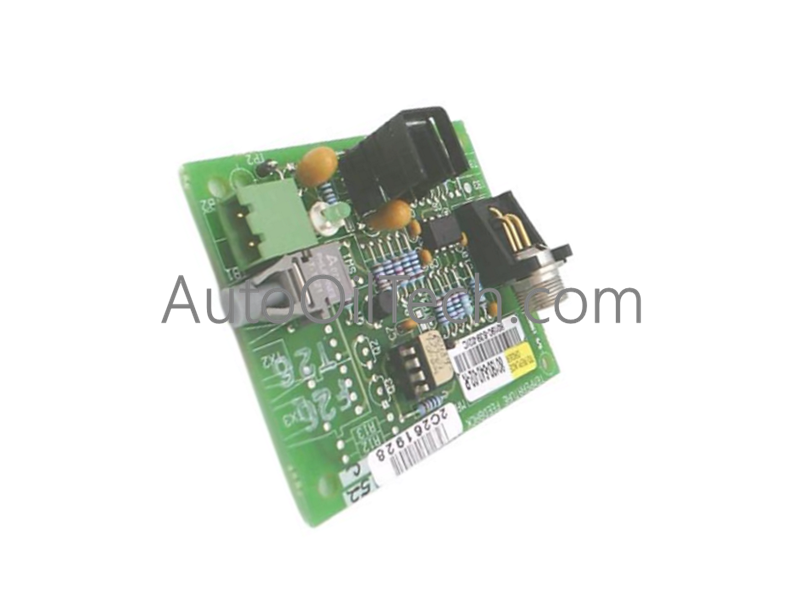

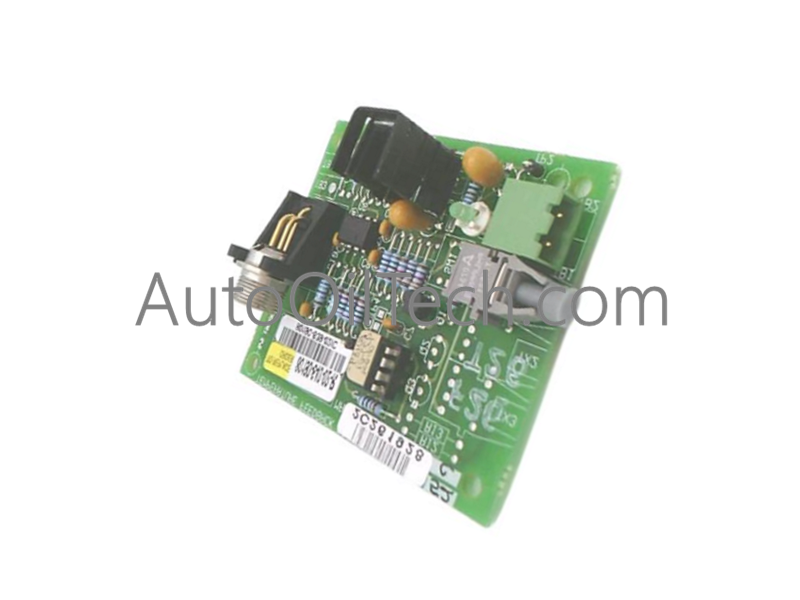

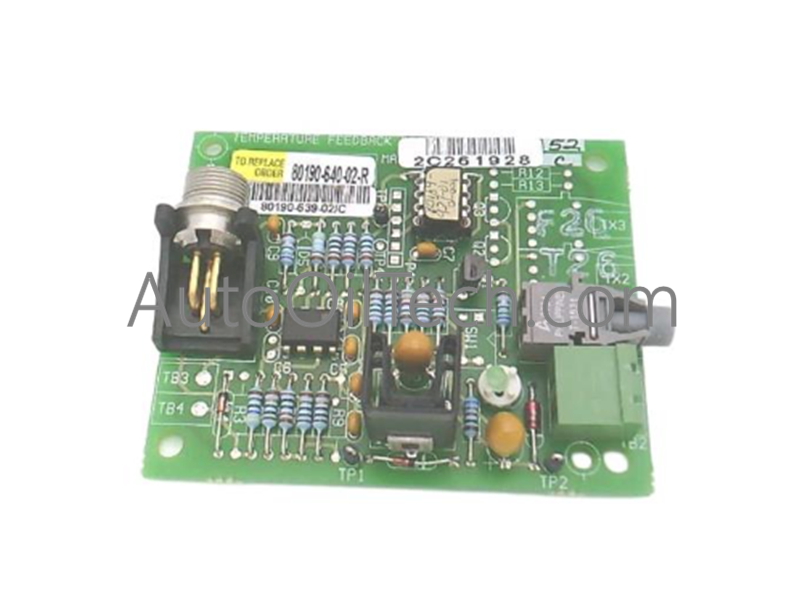

The Allen-Bradley 80190-640-02-R serves as the primary 80190-640-02-R CPU/Control Board utilized to execute thermal monitoring algorithms and temperature feedback loop logic across Allen-Bradley drive and industrial controller platforms.
Hardware Specifications
Parameter
Specification
Model
80190-640-02-R
Brand
Allen-Bradley
Origin
USA
Weight
0.04 lbs (0.018 kg)
Dimensions
Compact Industrial Sub-assembly Board
Operating Temp
0 to 60 deg C (32 to 140 deg F)
Power Consumption
Low-power bus supplied (3.3 VDC / 5 VDC internal rail)
Board Type
Temperature Feedback CPU / Control PCB Assembly
Replacement Model
80190-540-02-R
Mounting Type
Internal Standoff / Rack Mountable
Backplane Bus Communication & Temperature Signal Processing
The Allen-Bradley 80190-640-02-R CPU control board incorporates dedicated temperature feedback circuitry designed to process real-time thermal sensor signals from power electronics and internal driver stages. Operating with high backplane bus communication velocity, the board transmits digitized thermal data across internal system buses to execute dynamic thermal protection routines. Firmware flash compatibility ensures seamless instruction set execution and integration with existing system control architectures.
Frequently Asked Questions
Q: What function does the 80190-640-02-R perform within the host drive assembly?
A: The board functions as a dedicated CPU control sub-assembly that acquires temperature sensor feedback and processes real-time thermal data to prevent over-temperature conditions in the host system.
Q: Is the 80190-640-02-R interchangeable with the 80190-540-02-R board?
A: Yes, official engineering documentation designates part number 80190-540-02-R as a direct functional replacement variant for the 80190-640-02-R.
Q: How is electrical power delivered to the 80190-640-02-R board?
A: Power is drawn directly from the host system's internal backplane/bus power rail via edge card connectors or multi-pin ribbon headers.
Field Installation Guidelines
De-energize the host equipment and verify all main power sources and DC bus capacitors are fully discharged before opening the enclosure.
Put on an anti-static wrist strap connected to a verified chassis ground point prior to touching the PCB assembly.
Remove the defective board by loosening non-conductive mounting hardware and disconnecting internal ribbon cable headers.
Align the replacement 80190-640-02-R board with the chassis standoffs, applying even pressure until pin headers and edge connectors align securely.
Fasten all mounting screws, reconnect internal wiring, and verify clean cable routing away from high-voltage power paths.
