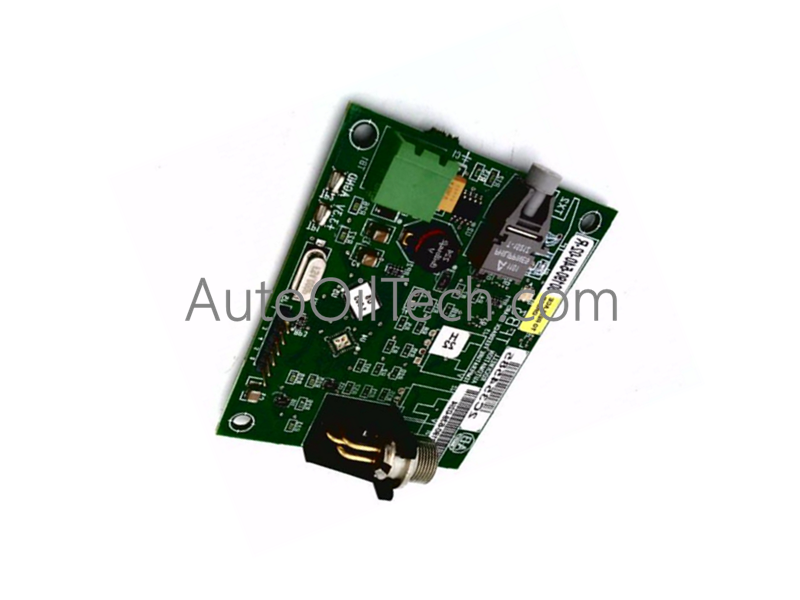

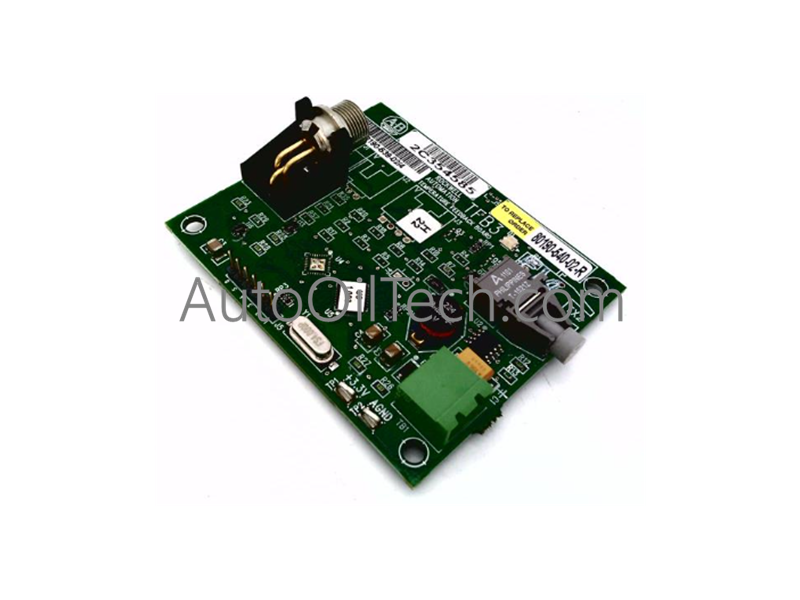

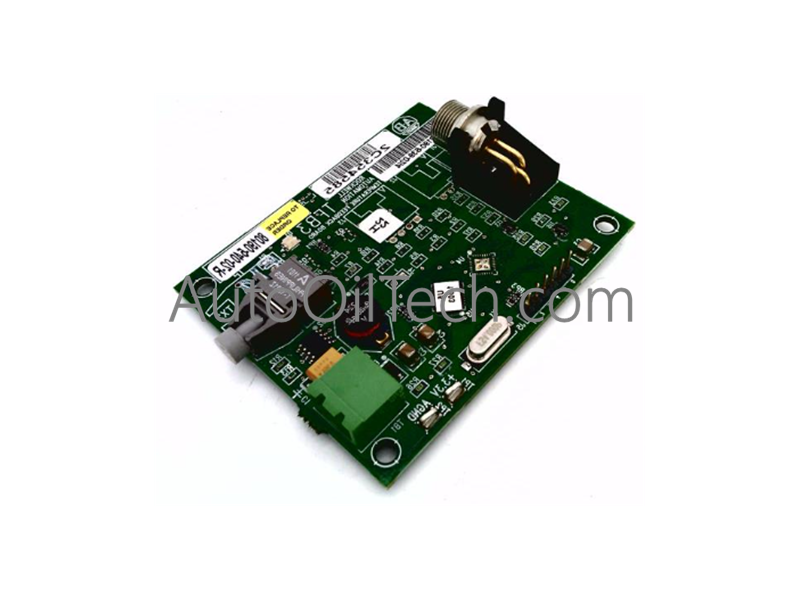

The Allen-Bradley 80190-540-02-R, also cataloged as the 80190-540-02-R Temperature Feedback PLC Board, operates as a dedicated hardware component for direct thermal sensor signal acquisition and feedback processing within Allen-Bradley PLC control platforms.
Hardware Specifications
Parameter
Specification
Model
80190-540-02-R
Brand
Allen-Bradley
Origin
USA
Weight
12.00 lbs (5.44 kg)
Dimensions
Industrial Control Sub-Chassis Mountable
Operating Temp
0 to 60 deg C (32 to 140 deg F)
Power Consumption
Power supplied via system backplane / internal power bus
Board Coating
Conformal Coated PCB
Board Type
Temperature Feedback Add-On PCB Assembly
Mounting Type
Internal Chassis / Frame Mounting
Backplane Bus Communication Velocity & Conformal Coating Protection
The Allen-Bradley 80190-540-02-R incorporates factory conformal coating over all exposed circuit traces to prevent dielectric breakdown from humidity, airborne contaminants, and corrosive atmospheric elements. Designed to interface directly with host processor racks, the board utilizes high backplane bus communication velocity to stream digitized temperature feedback signals with minimal conversion latency. Firmware flash compatibility maintains deterministic loop execution and synchronized integration across Allen-Bradley PLC architectures.
Frequently Asked Questions
Q: What environmental protection is applied to the 80190-540-02-R circuit board assembly?
A: The printed circuit board features a protective conformal coating layer that safeguards surface-mounted electronic components against moisture, condensation, and chemical dust accumulation.
Q: How is electrical ground established for the 80190-540-02-R board inside the rack?
A: Grounding is maintained through plated mounting hole pads that make direct metal-to-metal contact with the grounded internal chassis standoffs upon installation.
Q: Does the 80190-540-02-R board support live backplane insertion or hot-swapping?
A: Hot-swapping is not permitted; the main host system power must be completely de-energized before removing or inserting the PCB assembly to prevent voltage transients on the system bus.
Field Installation Guidelines
Isolate and lock out main AC supply power to the control enclosure before opening the access panel.
Wear a grounded ESD wrist strap attached to an unpainted metal surface of the chassis prior to unboxing or handling the board.
Position the 80190-540-02-R PCB over the designated chassis standoffs and ensure proper alignment with internal backplane connectors.
Secure the board using mounting screws tightened hand-tight to ensure grounding continuity without stressing the PCB substrate.
Reconnect internal wiring harnesses and verify that all sensor cable shields are grounded at the enclosure entry point.
