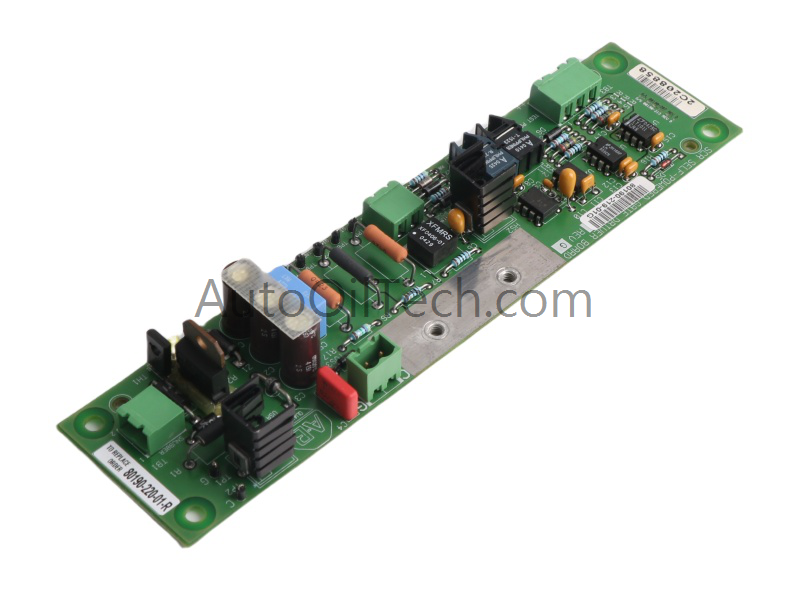

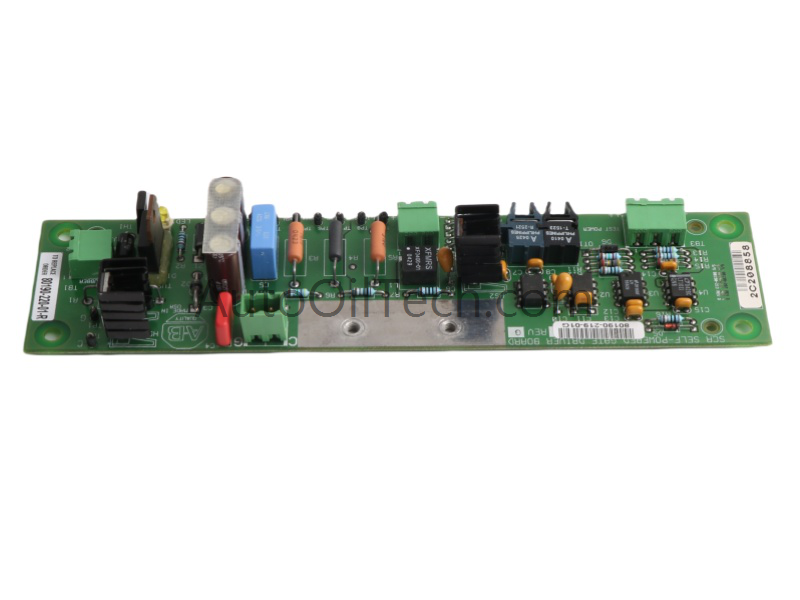

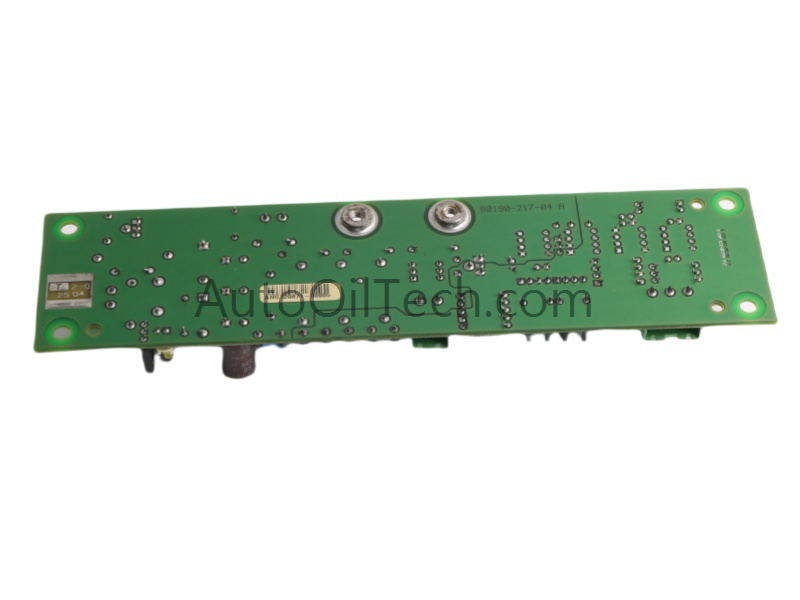

The Allen-Bradley 80190-220-01-R Driver Board is a precision-engineered PC board designed for SCR (Silicon-Controlled Rectifier) applications in industrial automation. Acting as a gate driver, it ensures efficient triggering and control of power semiconductors. With robust construction and self-powered operation, the 80190-220-01-R delivers dependable performance in high-voltage, high-current environments such as motors, drives, and power conversion systems.
Technical Specifications
Parameter
Value
Model Number
80190-220-01-R
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Driver Board / CPU Board
Application
SCR gate driver for power semiconductors
Power Supply
Self-powered unit
Integration
Compatible with multiple automation platforms
Dimensions
20.7 × 5 × 2.5 cm
Weight
0.1 kg
System
PLC integration
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
SCR gate driver board for efficient triggering and control of semiconductors.
Self-powered design reduces installation complexity and eliminates need for external supplies.
Robust construction ensures durability in harsh industrial environments.
Seamless integration with a wide range of automation platforms.
Provides accurate and responsive control with minimal signal loss or delay.
Trusted by OEMs and maintenance professionals for critical applications.
