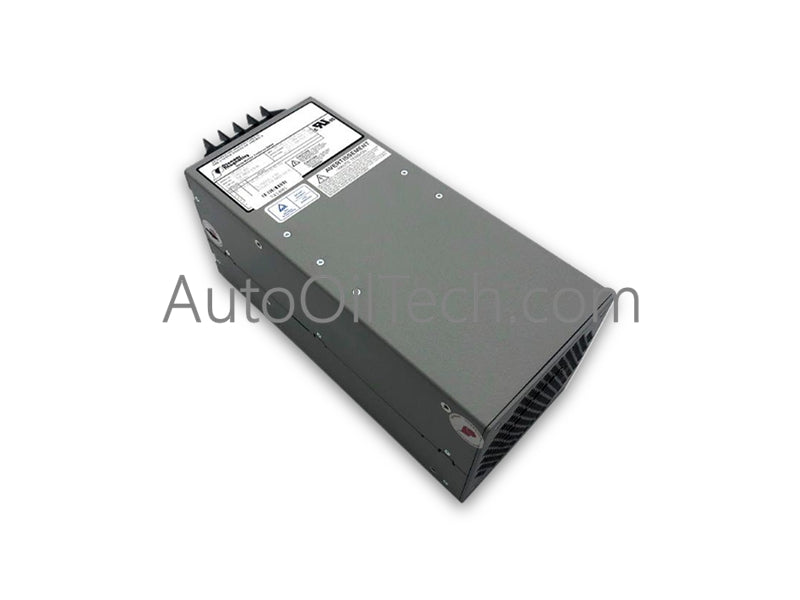

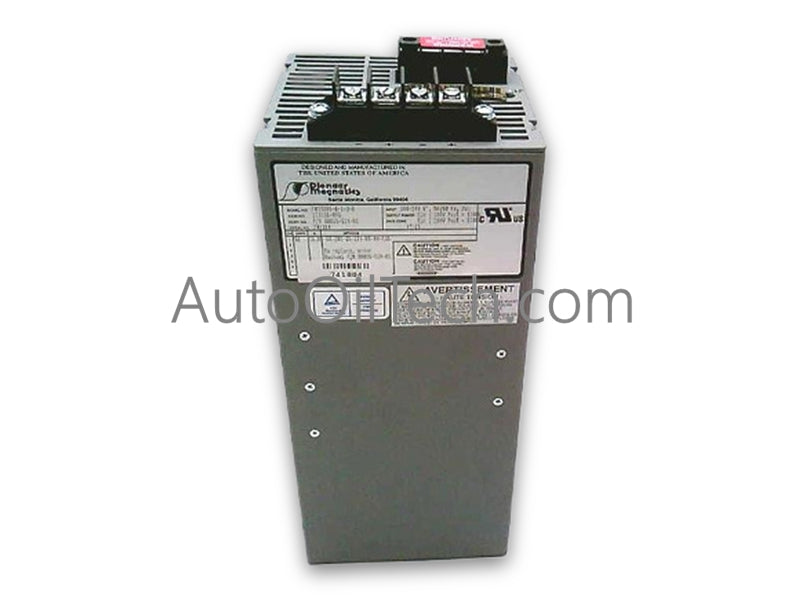

Allen-Bradley 80026-524-01 Power Supply

Configured for high-density DC power delivery and voltage regulation in Allen-Bradley industrial control racks, the Allen-Bradley 80026-524-01 (80026-524-01 Power Supply) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The catalog identifier 80026-524-01 designates a 1500 W single-phase power supply unit within the 80026 hardware series. The base model number 80026-524 specifies the primary circuit topology and 100-240 VAC input handling, while the revision suffix 01 indicates factory component revisions and assembly specifications corresponding to manufacturer cross-reference PM3328B-6-1-3-E.

Hardware Specifications

Backplane Bus Communication Velocity & Power Distribution

The Allen-Bradley 80026-524-01 power supply delivers 1500 W of high-capacity regulated power across universal single-phase input voltages from 100 to 240 VAC at 50/60 Hz. Operating at up to 23 A input current, the unit supports high backplane bus communication velocity and logic processing across connected Allen-Bradley expansion chassis. Internal thermal dissipation structures and over-current protection circuitry maintain stable voltage rails for high-density I/O configurations and processor racks.

Frequently Asked Questions

Q: What input AC voltage range is acceptable for operating the 80026-524-01 power supply?

A: The module accepts wide-range single-phase AC input voltages between 100 VAC and 240 VAC at 50/60 Hz frequency.

Q: What is the maximum current rating required on the primary AC supply line for this unit?

A: The unit draws up to 23 A under full load conditions and requires appropriately rated circuit breakers and wire gauges on the incoming mains supply line.

Q: Can the 80026-524-01 module be removed or inserted into the chassis while power is applied?

A: No, incoming AC supply power must be completely switched off and isolated before mounting, removing, or servicing the power supply unit.

Field Installation Guidelines

1. Isolate and lock out incoming AC power lines prior to opening the control panel or mounting the power supply.
2. Mount the 80026-524-01 securely into the chassis frame, verifying that ventilation openings have adequate clearance for cooling airflow.
3. Fasten all mounting bolts and chassis ground terminals to establish low-impedance earth grounding continuity.
4. Wire incoming 100-240 VAC single-phase power lines to the input terminals, adhering to local electrical code wire gauge specifications for 23 A loads.
5. Verify output DC rail wiring and polarity prior to energizing the primary supply.
