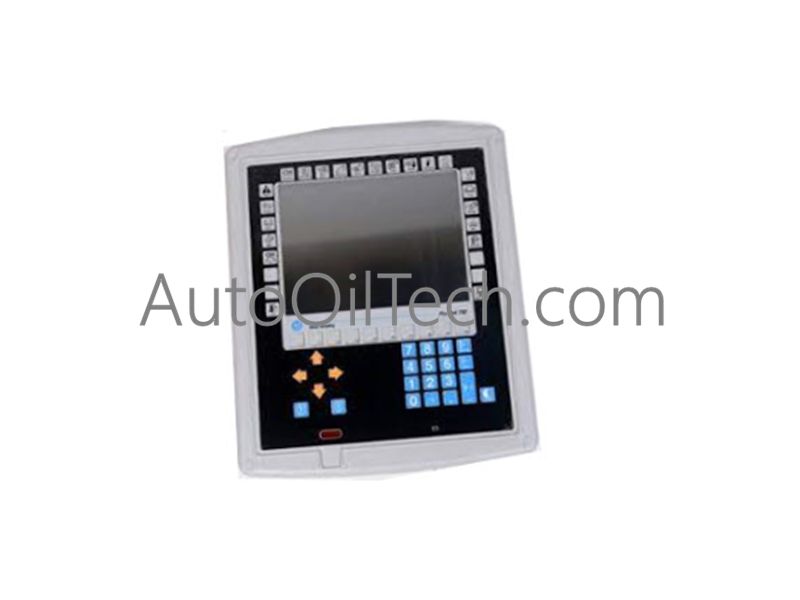

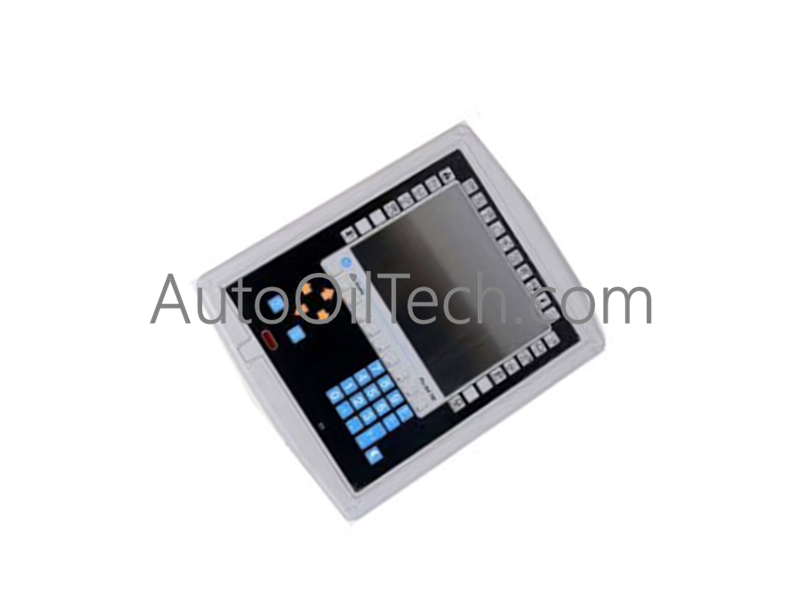

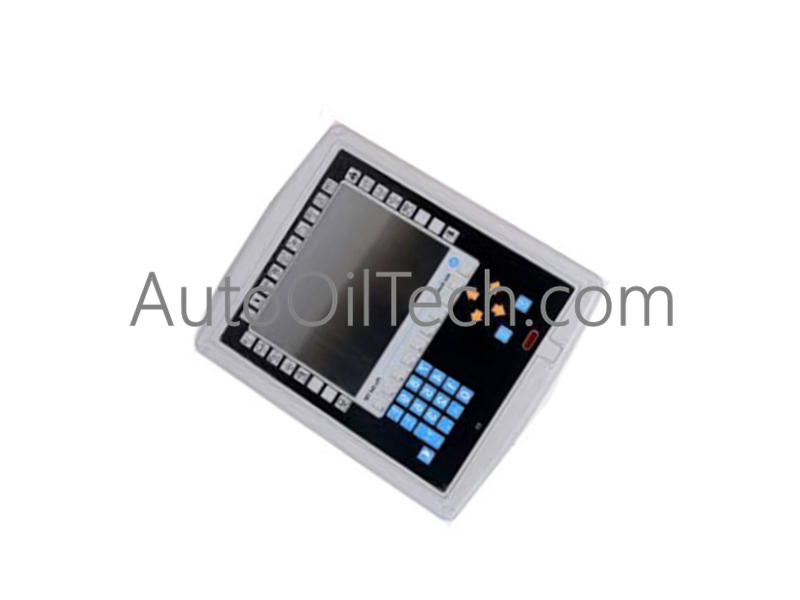

Allen-Bradley 6500-PS7TS ProSet 700 Operator Interface

The Allen-Bradley 6500-PS7TS, also cataloged as the 6500-PS7TS Operator Interface, operates as a dedicated hardware component for graphical visualization and process parameter entry within industrial automation networks. The panel features a TFT color display with integrated touchscreen hardware (field-serviceable via glass replacement part PRO-SET700-REPLACEMENT), providing direct operator control and status monitoring for machine-level control systems.

Hardware Specifications

EtherNet/IP Deterministic Networks & Hardware Execution

The 6500-PS7TS operator terminal utilizes EtherNet/IP deterministic networks and firmware flash compatibility to deliver real-time process monitoring across Allen-Bradley ControlLogix and CompactLogix platforms. The high-density TFT display driver processes graphical register updates with deterministic response times, enabling low-latency touch response for critical control prompts. Onboard communication interfaces translate operator touch events into high-speed controller data tags, maintaining deterministic data exchanges without overloading backplane communication velocity.

Frequently Asked Questions

Q: Is the touchscreen glass replaceable on the 6500-PS7TS without replacing the main electronics chassis?

A: Yes, the front touchscreen glass assembly can be serviced independently using designated replacement part PRO-SET700-REPLACEMENT.

Q: How does the unit maintain front-panel ingress protection when panel-mounted?

A: The bezel incorporates an industrial-grade sealing gasket that, when compressed against a smooth panel cutout using specified mounting clamps, provides an IP65 / NEMA 4X dust- and water-tight seal.

Field Installation Guidelines

1. Cut a precise opening in the enclosure door using the panel template dimensions, ensuring edges are smooth and free of burrs.
2. Verify that the sealing gasket is intact and correctly seated in the bezel channel before inserting the terminal into the cutout.
3. Slide the 6500-PS7TS into the opening and secure it using the supplied mounting clamps, tightening screws uniformly to ensure even gasket compression.
4. Route power (24 VDC) and communication cabling through grounded, metal conduit, maintaining separation from high-voltage AC motor drives.
5. Connect the chassis ground terminal directly to the enclosure main earth grounding bus using a heavy-gauge copper bonding strap (impedance under 1 ohm).
