Allen-Bradley 5201-DFNT-MCM ProSoft Communication Module

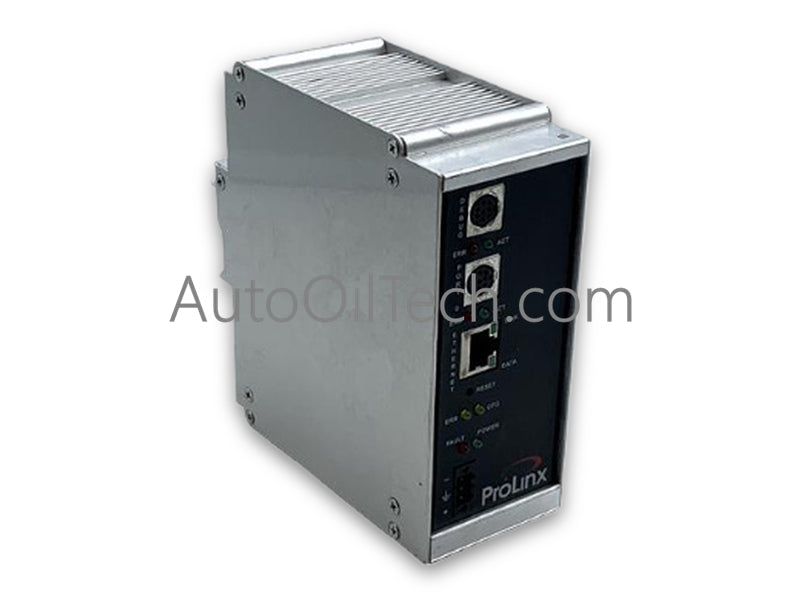

The Allen-Bradley 5201-DFNT-MCM, also cataloged as the 5201-DFNT Communication Module, operates as a dedicated hardware component for protocol conversion and bi-directional data transfer between EtherNet/IP networks and Modbus serial bus architectures. Equipped with 1 Ethernet port and 2 serial connection ports supporting RS-232, RS-422, and RS-485 physical interfaces, the DIN-rail mounted module executes Modbus master or slave data polling at rates up to 110-115 kbps. Integrated LED status indicators provide real-time diagnostic visual verification across active communication channels.

Hardware Specifications

Protocol Conversion Latencies & Bus Synchronization

The Allen-Bradley 5201-DFNT-MCM optimizes internal memory mapping to maintain rapid backplane bus communication velocity and low protocol conversion latencies when translating EtherNet/IP explicit/implicit messaging into Modbus RTU/ASCII command packets. The internal gateway logic executes autonomous data mapping registers, isolating host Ethernet controllers from serial bus polling delays. Onboard processing firmware ensures continuous firmware flash compatibility, maintaining deterministic I/O table synchronization across interconnected industrial control networks.

Frequently Asked Questions

Q: What serial pinout configurations are supported by the two serial connection ports?

A: The two serial ports support jumper-selectable RS-232, RS-422, and RS-485 physical interface standards for flexible point-to-point or multi-drop serial topology integration.

Q: How are network interface state and serial port activity monitored on the hardware unit?

A: Front-panel LED status indicators provide immediate local visual status for Ethernet link/activity, serial port transmit/receive states, and module configuration errors.

Field Installation Guidelines

Mount the module securely on a standard 35 mm DIN rail inside a protective industrial enclosure. Connect 24 VDC external control power ensuring correct polarity on the power terminal block. When wiring serial communication lines to the RS-232, RS-422, or RS-485 ports, utilize shielded twisted-pair cables and terminate the shield ground at one end only to prevent ground loop currents. Keep all communication cables isolated from high-voltage AC motor drives and power wiring to prevent electromagnetic interference from interrupting data transmission.
