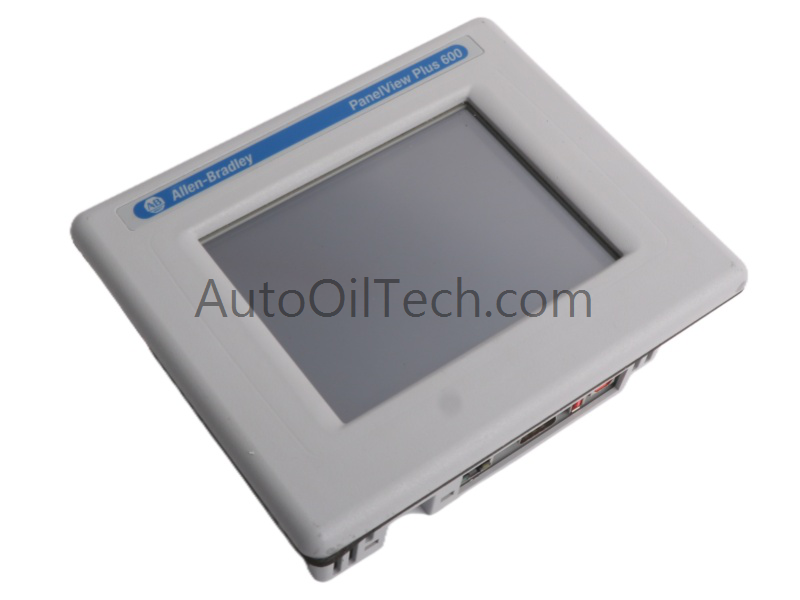

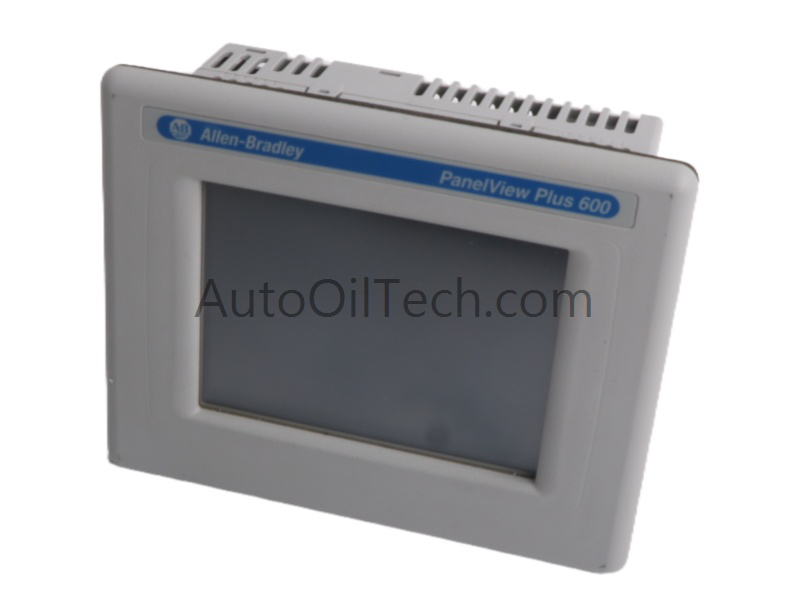

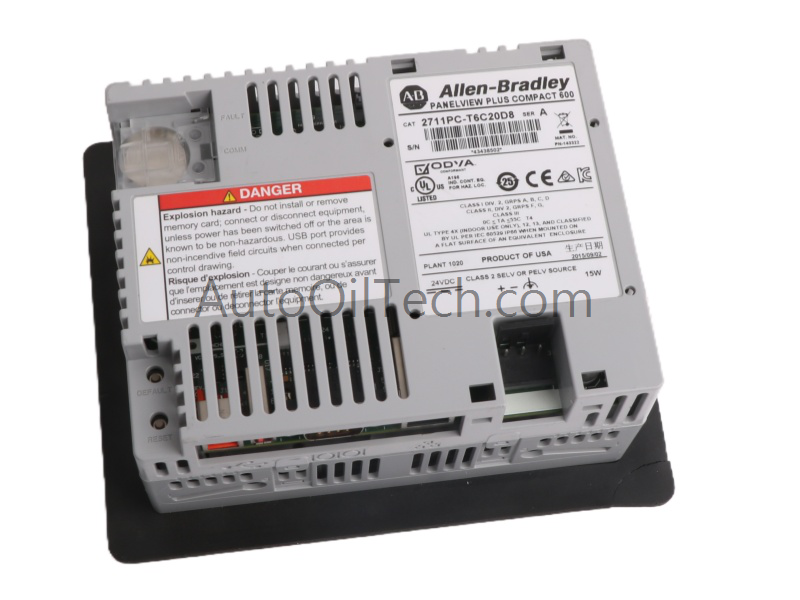

The Allen-Bradley 2711PC-T6C20D8 PanelView Plus 6 Compact 600 Touch Screen is a compact operator interface terminal designed for small to medium automation projects. Featuring a 5.7-inch TFT color display with 320×240 resolution and resistive touchscreen technology, it provides clear visualization and reliable machine-level control. With multiple communication options, enhanced memory, and robust durability, the 2711PC-T6C20D8 is an efficient solution for industrial HMI applications.
Technical Specifications
Parameter
Value
Model Number
2711PC-T6C20D8
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Touch Screen / HMI
Display Size
5.7-inch TFT color
Resolution
320 × 240 pixels
Color Depth
18-bit
Touchscreen Type
Resistive, rated for 1 million actuations
RAM
256 MB
Power Supply
18–30V DC
Communication Ports
Ethernet, RS-232
Supported Displays
Up to 25
Alarm Messages
Up to 200
Backlight Life
25,000 hours
Clock
Battery-backed, 4-year minimum life
External Peripherals
Keyboard support
Enclosure Compatibility
NEMA, UL, IP-rated
Dimensions
6 × 7.28 × 2.86 in (approx.)
Weight
1.31 lbs (0.9 kg)
System
PLC integration
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
Compact HMI with clear visualization for machine-level control.
Supports up to 25 displays and 200 alarm messages for flexible monitoring.
Enhanced processor speed and memory for faster response times.
Built-in PDF viewer and CSV file support for easy document access.
Battery-backed clock ensures reliable timestamping of data.
Rugged design with NEMA, UL, and IP-rated enclosure compatibility.
Secure login feature for controlled parameter modifications.
