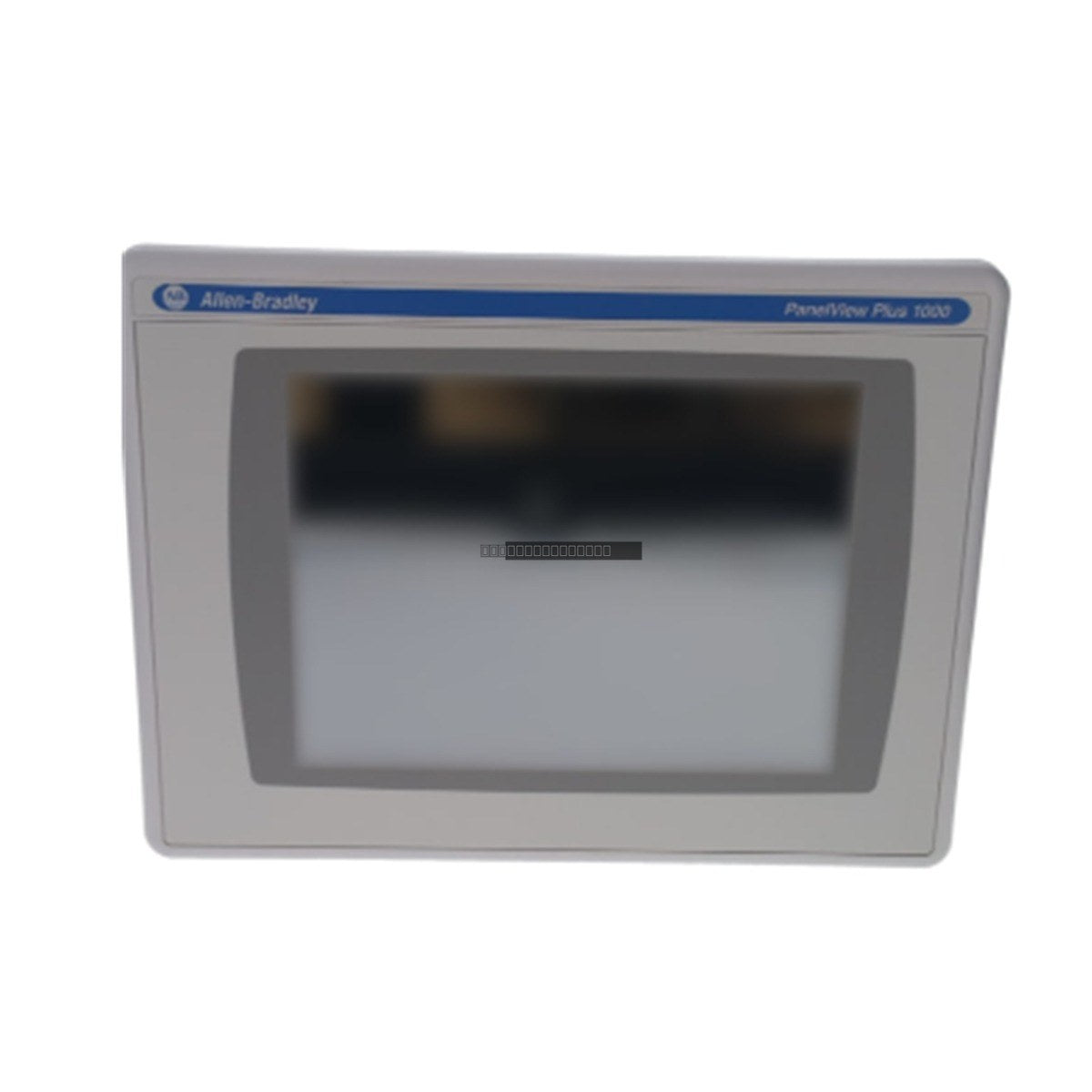

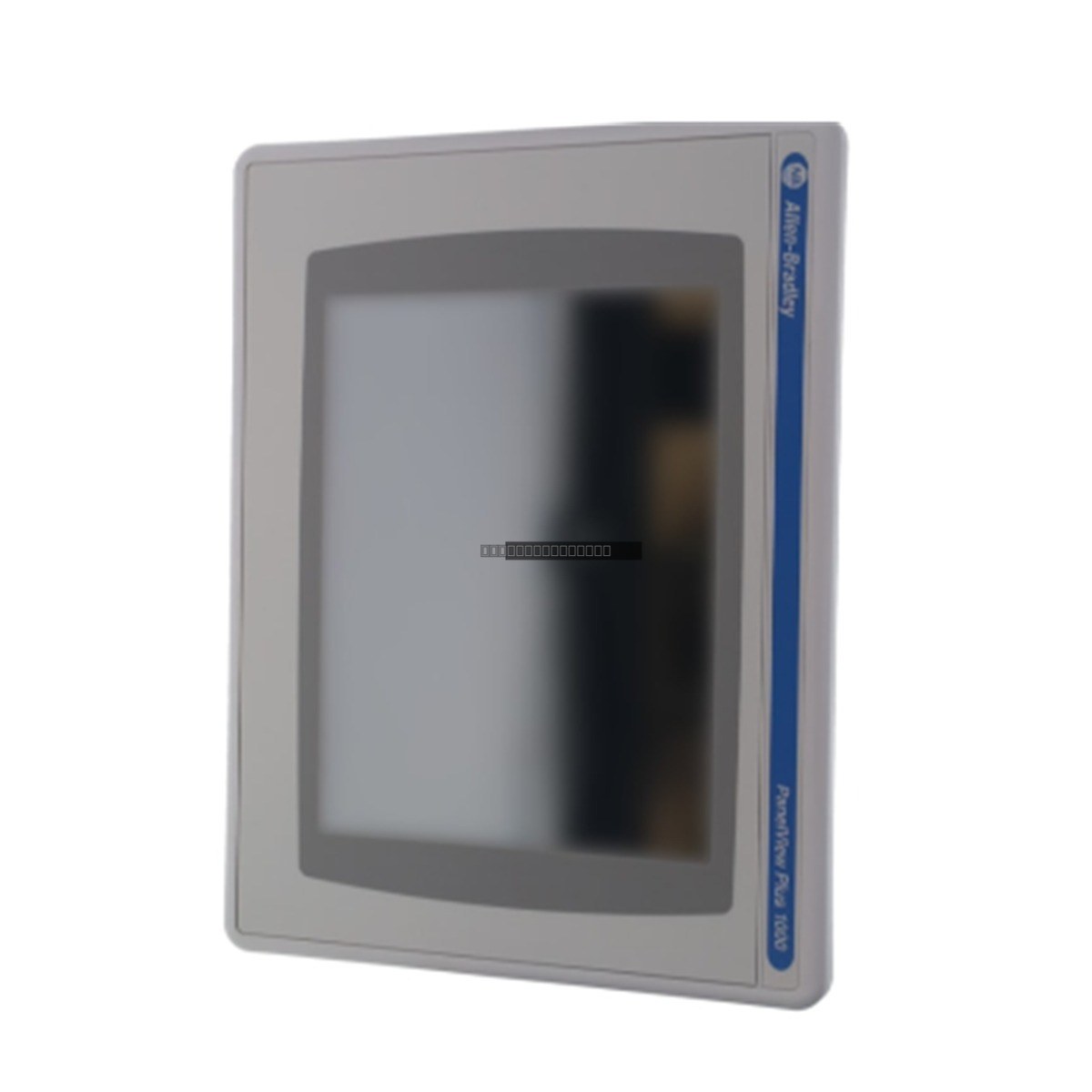

Allen-Bradley 2711PC-T10C4D8 PanelView Plus 6 Compact 1000

The Allen-Bradley 2711PC-T10C4D8 is a PanelView Plus 6 Compact 1000 operator terminal designed for localized graphic visualization and real-time supervisory control in industrial automation environments. Operating on a Windows CE 6.0 platform, this terminal facilitates direct communication with CompactLogix and ControlLogix controllers, making it suitable for applications in automotive assembly, packaging, and chemical processing. The unit centralizes machine control, alarm management, and trend monitoring to enhance operational efficiency and reduce downtime.

Features

• 10.4-inch active-matrix color TFT display with 640 x 480 VGA resolution.
• Analog resistive touchscreen interface for reliable operator input.
• Integrated 10/100 Mbps Ethernet port supporting EtherNet/IP protocol.
• RS-232 serial interface and two USB host ports for peripheral device support and firmware updates.
• Robust NEMA Type 12, 13, 4X (Indoor) and IEC IP66 enclosure ratings.

Applications

This operator interface terminal is engineered for demanding industrial environments requiring high-visibility HMI solutions. It is commonly deployed in machine-level control systems where space is at a premium and direct integration with Allen-Bradley controller families is required for system monitoring and command execution.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the integrity of the NEMA/IP seal.
• Use the provided mounting clips to secure the terminal firmly against the enclosure surface.
• Verify that the power supply is within the 18-30 VDC range before connection to prevent damage.
• Maintain proper grounding practices to minimize electromagnetic interference (EMI).
• Ensure adequate clearance around the unit for ventilation and to prevent overheating during operation.
• Always power down the system before connecting or disconnecting communication cables or USB peripherals.

FAQ

What controllers are compatible with the 2711PC-T10C4D8?

This terminal is designed to interface directly with Allen-Bradley CompactLogix and ControlLogix controller families.

Can I use a mouse or keyboard with this terminal?

Yes, the unit features two integrated USB host ports that support standard peripheral devices such as keyboards, mice, or external storage for firmware management.

What is the required power supply for this unit?

The unit operates on a nominal 24 VDC power input, with an acceptable operating range of 18 to 30 VDC.
