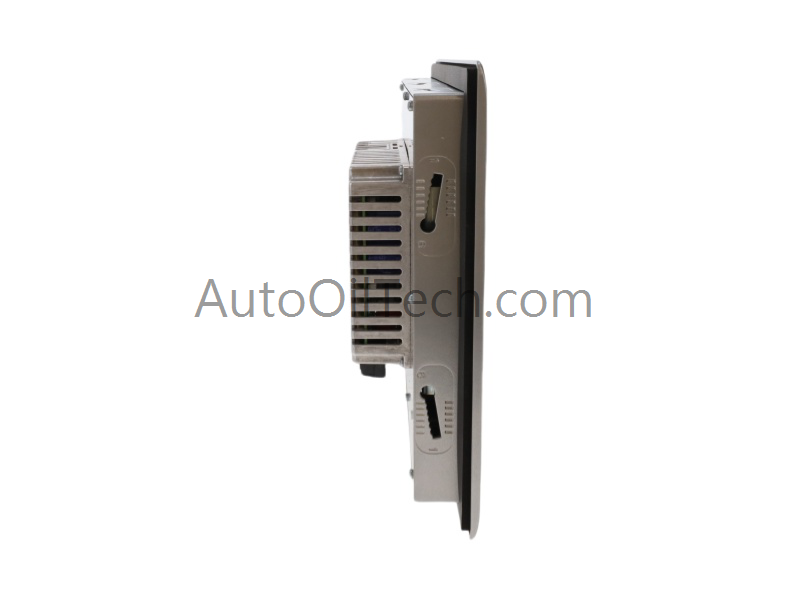

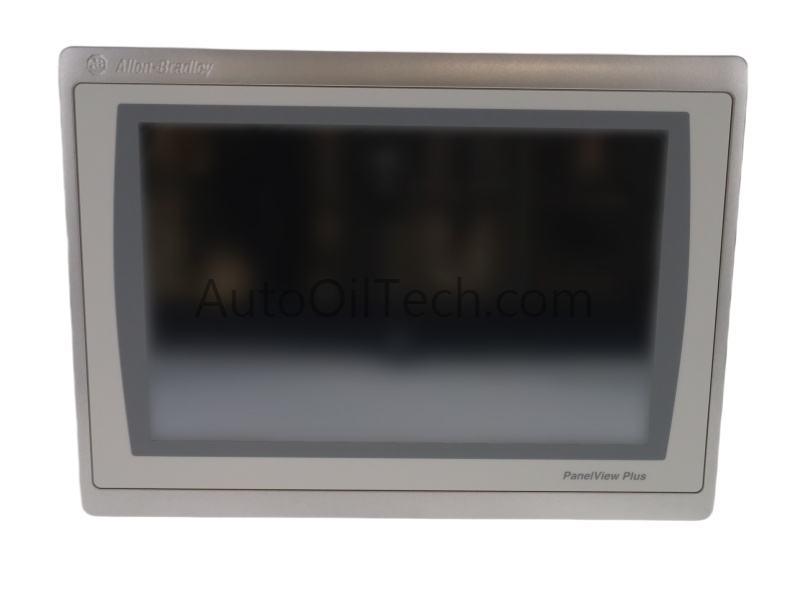

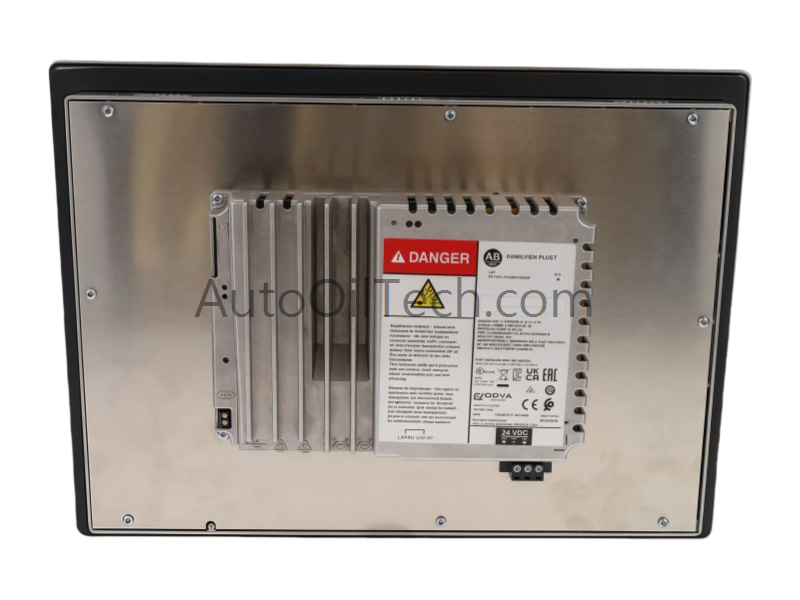

The 2711P-T12W22D9P Touch Screen by Allen-Bradley is a high-performance HMI terminal from the PanelView Plus 7 Performance series. With a 12.1-inch widescreen display and advanced processing capabilities, it delivers intuitive control and robust visualization for industrial automation systems.
Technical Specifications
Parameter
Value
Manufacturer
Allen-Bradley
Model Number
2711P-T12W22D9P
Module Type
Touch Screen HMI
Product Range
PanelView Plus 7 Performance Series
Display Size
12.1 inches (WVGA)
Display Type
TFT, resistive touchscreen
Resolution
800 × 480 pixels
Processor
1GHz
RAM
512MB DRAM
Flash Memory
2GB
External Storage
Supports FactoryTalk View ME apps
Input Voltage Range
18–30V DC
Power Consumption
Max 50W
Communication Ports
Dual Ethernet (DLR support)
Controller Compatibility
ControlLogix, CompactLogix 5370
Mounting Options
Panel or rack
Front Panel Rating
IP66
Optional Features
Conformal coating, stainless steel
Operating Temperature
0°C to 50°C
Dimensions (W×H×D)
34 × 38.5 × 18 cm
Weight
3.4 kg
HS Code
8537101190
System Compatibility
PLC
Product Origin
USA
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
12.1" widescreen TFT display offers clear visualization for complex processes.
1GHz processor and 512MB RAM ensure smooth HMI performance.
Dual Ethernet ports support Device Level Ring (DLR) for network redundancy.
IP66-rated front panel resists dust and water jets in harsh environments.
Supports FactoryTalk View ME applications with 2GB onboard flash.
Flexible mounting options and optional hygienic variants for food-grade environments.
