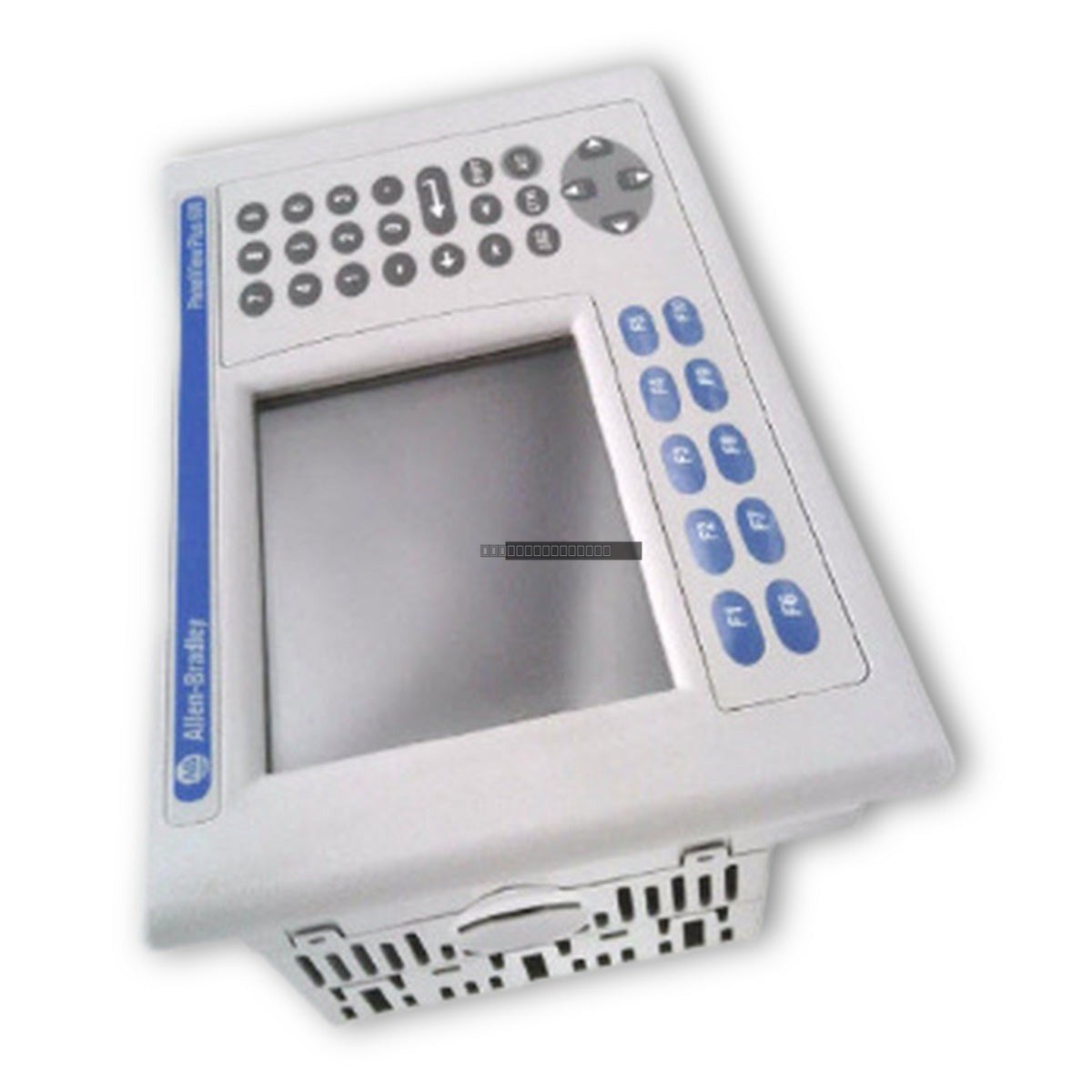

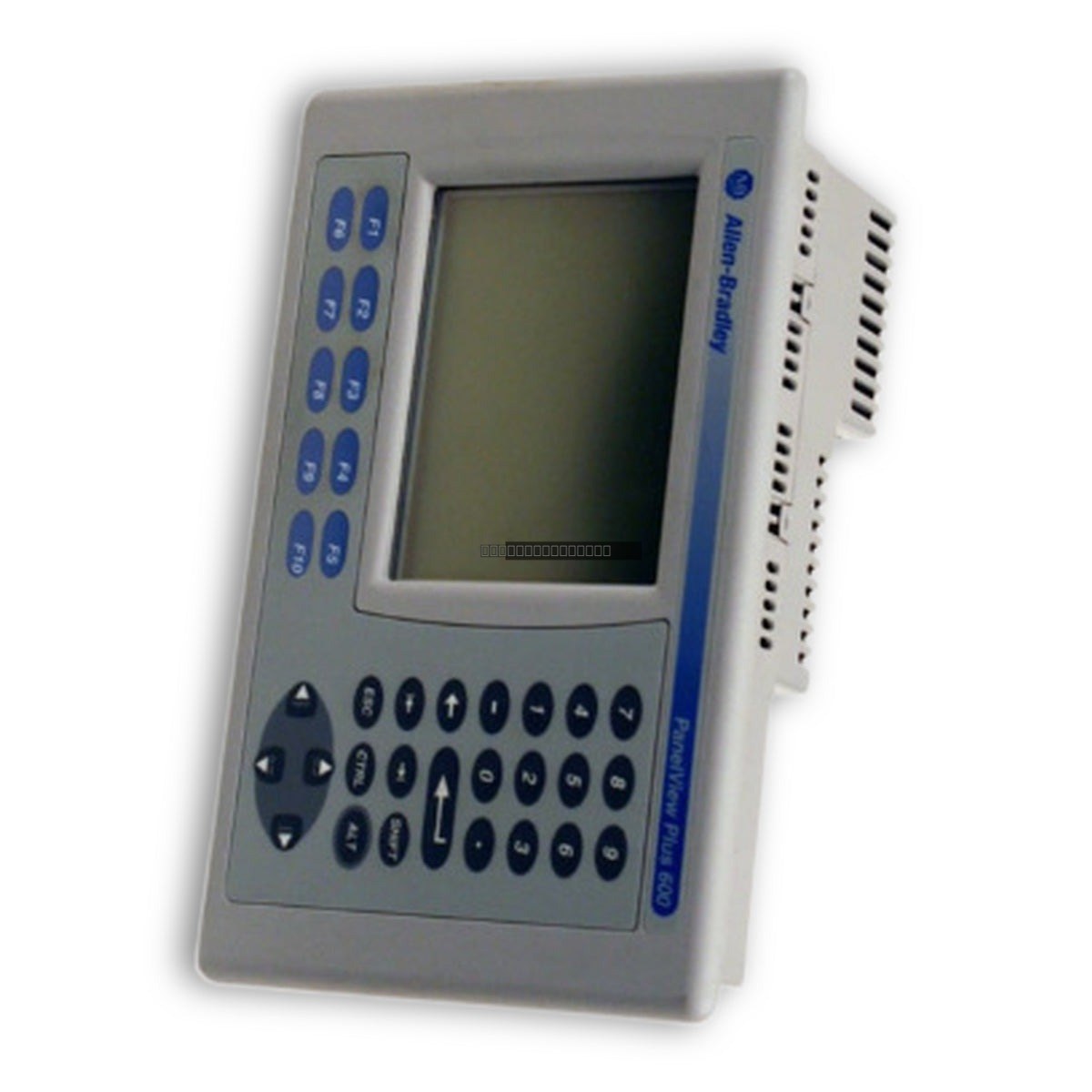

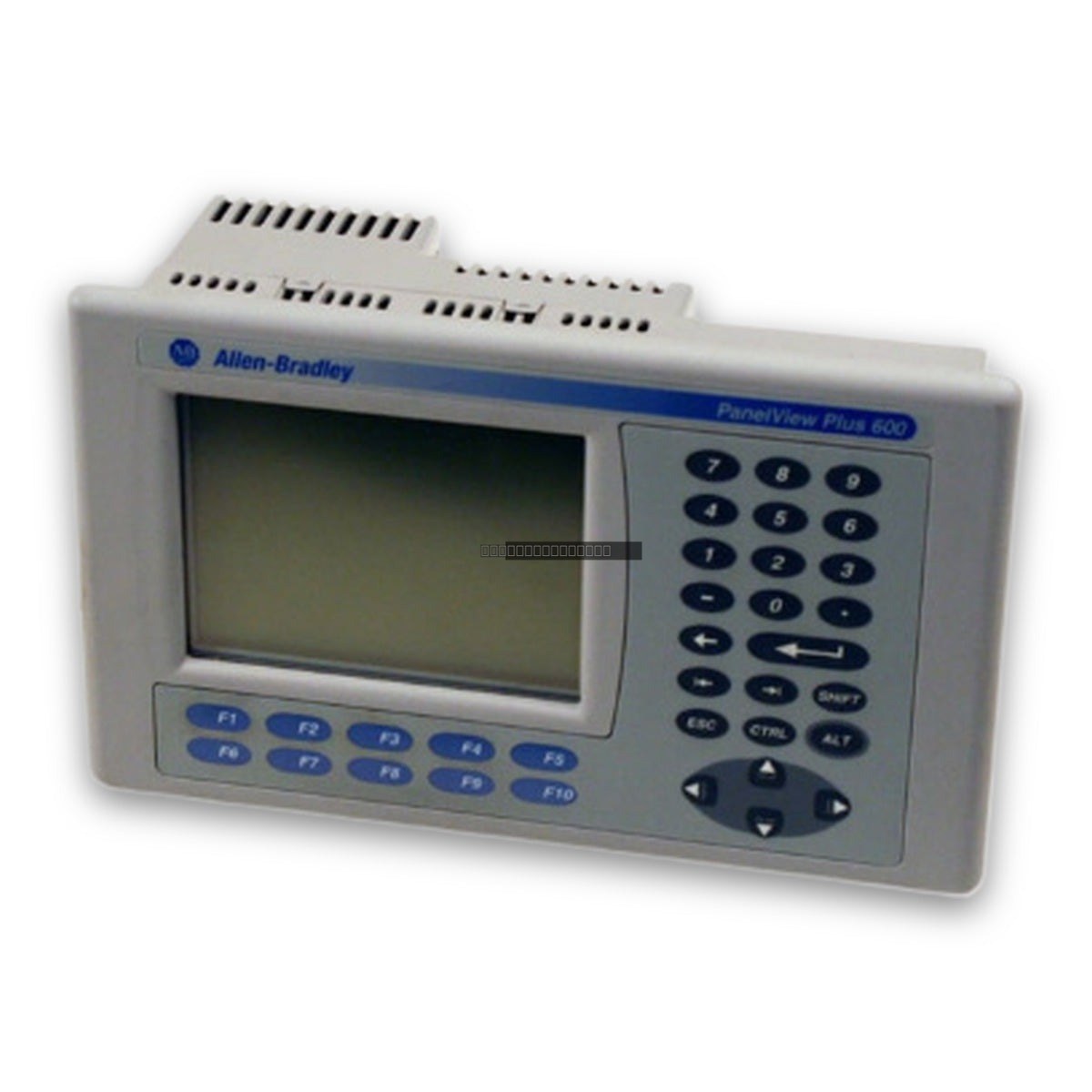

The Allen-Bradley 2711P-B6M20D is a PanelView Plus operator interface terminal designed for demanding industrial automation environments. This HMI unit provides essential visualization and control capabilities, making it suitable for factory floor monitoring, material handling systems, and legacy control network integration.
Features
5.7-inch monochrome display with 320 x 240 pixel resolution for clear process visualization.
Dual-input interface featuring both a tactile keypad and an analog resistive touchscreen for versatile operator control.
Integrated communication ports including Ethernet, RS-232 serial, and USB for network connectivity and peripheral support.
Robust design suitable for standard industrial panel mounting.
Applications
This operator terminal is designed for use in various industrial sectors, including manufacturing, material handling, and process automation, where reliable, localized HMI control and monitoring are required.
Technical Specifications
Model
2711P-B6M20D
Brand
Allen-Bradley
Display Type
Monochrome
Input Voltage
24 VDC
Power Consumption
25 W
Operating Temperature
0 degC to 55 degC
Enclosure Rating
IP54
Installation Guidelines
Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the IP54 enclosure rating.
Verify that the power supply provides a stable 24 VDC input and is properly fused according to local electrical codes.
Use shielded communication cables for Ethernet and serial connections to minimize electromagnetic interference (EMI).
Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating.
Always disconnect power before installing, removing, or performing maintenance on the terminal to prevent electrical hazards.
Handle the unit with care to avoid damage to the touchscreen overlay and display glass.
FAQ
What is the primary input method for this HMI?
The 2711P-B6M20D features a hybrid input system, allowing operators to use either the physical keypad or the integrated analog resistive touchscreen.
Is this unit suitable for high-resolution graphics?
No, this model is equipped with a monochrome display (320 x 240 resolution), which is optimized for clear text and basic graphical representation in industrial control applications.
