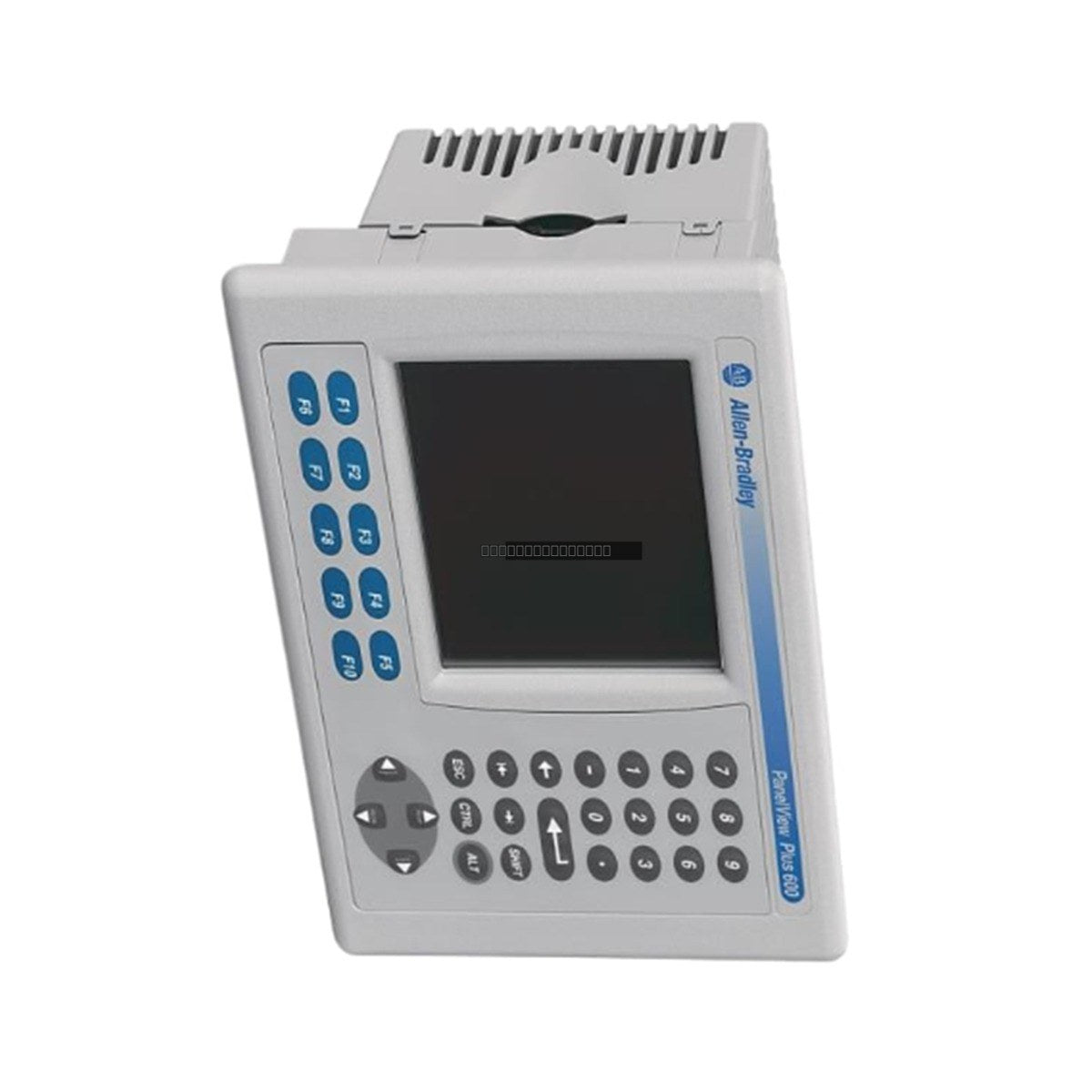

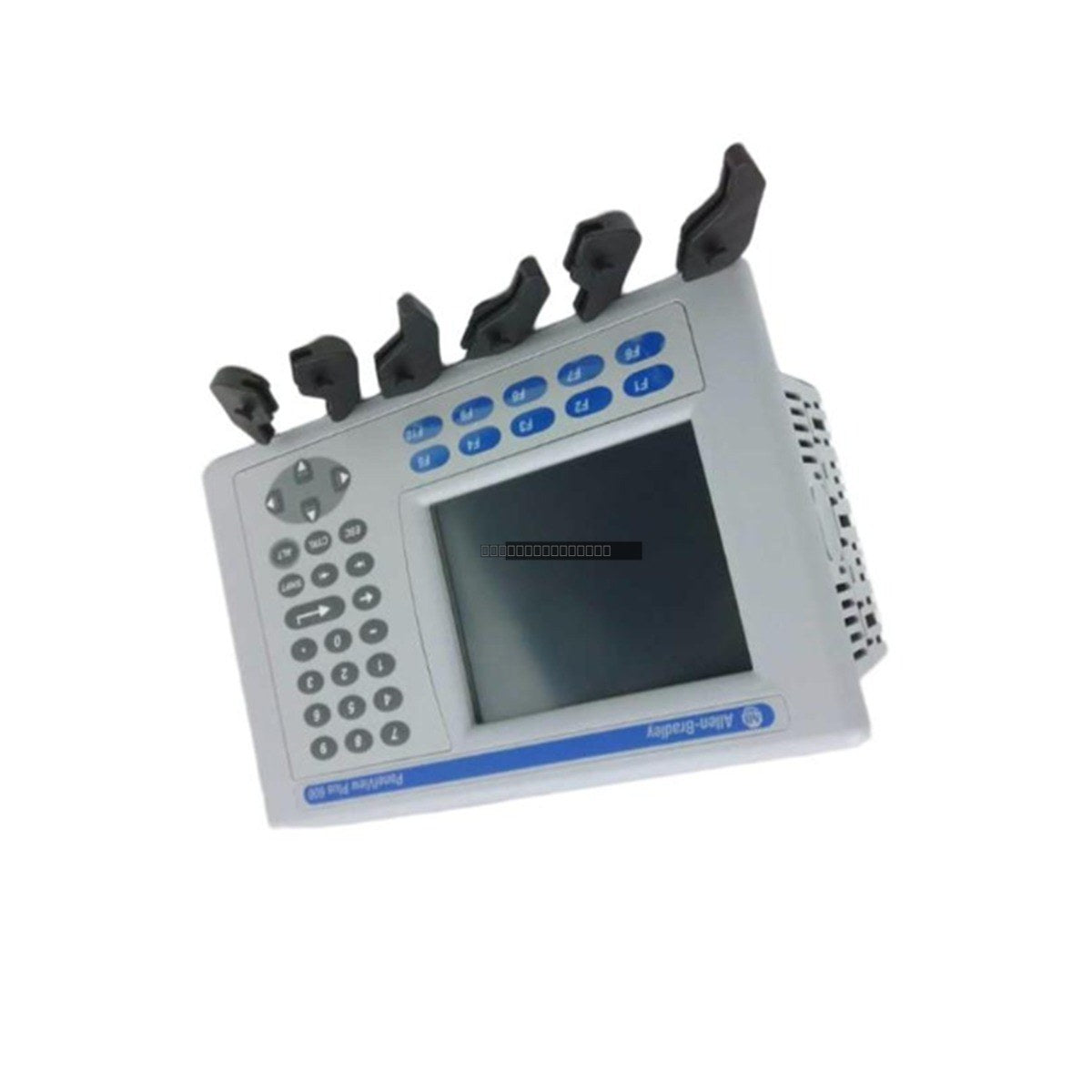

Allen-Bradley 2711P-B6C20A PanelView Plus 600 Operator Interface Terminal

The Allen-Bradley 2711P-B6C20A is a high-performance operator interface terminal from the PanelView Plus 600 series, engineered for reliable process visualization and machine control in demanding industrial environments. This HMI provides a robust bridge between field-level automation controllers and supervisory systems, facilitating real-time alarm management and process monitoring in sectors such as power generation, water treatment, and chemical processing.

Features

• Dual-input interface: Combines an analog-resistive touchscreen with a 10-key programmable function keypad for reliable operation in high-vibration or gloved-hand environments.
• Integrated communication: Features dual Ethernet ports for high-speed TCP/IP networking and an RS-232 serial port for direct DF1 protocol connectivity.
• Peripheral support: Includes USB connectivity for external storage, printers, and other peripheral devices.
• Reliable operation: Equipped with a battery-backed real-time clock for accurate event timestamping and alarm logging.
• Power flexibility: Operates on a wide-range 85 to 264 VAC power supply, suitable for diverse industrial power grids.

Applications

This terminal is designed for deployment in factory automation, food and beverage processing, and infrastructure monitoring. It effectively offloads graphical rendering and diagnostic tracking from primary PLCs, helping to maintain deterministic control loop performance.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to the manufacturer's specified dimensions to maintain the IP65/NEMA enclosure seal.
• Mount the unit in a location that provides adequate ventilation to keep the operating temperature within the 0 to 55 deg C range.
• Use shielded Ethernet and serial cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Verify that the AC power source is stable and within the 85 to 264 VAC range before applying power.
• Always disconnect power before installing or removing peripheral cables to prevent potential electrical damage.

FAQ

What is the primary input method for this terminal?

The 2711P-B6C20A features a dual-input design, allowing operators to use either the analog-resistive touchscreen or the 10-key programmable function keypad, which is ideal for environments where physical tactile feedback is required.

Does this unit support network communication?

Yes, it is equipped with dual Ethernet ports supporting TCP/IP, as well as an RS-232 serial port for DF1 protocol communication with legacy controllers.
