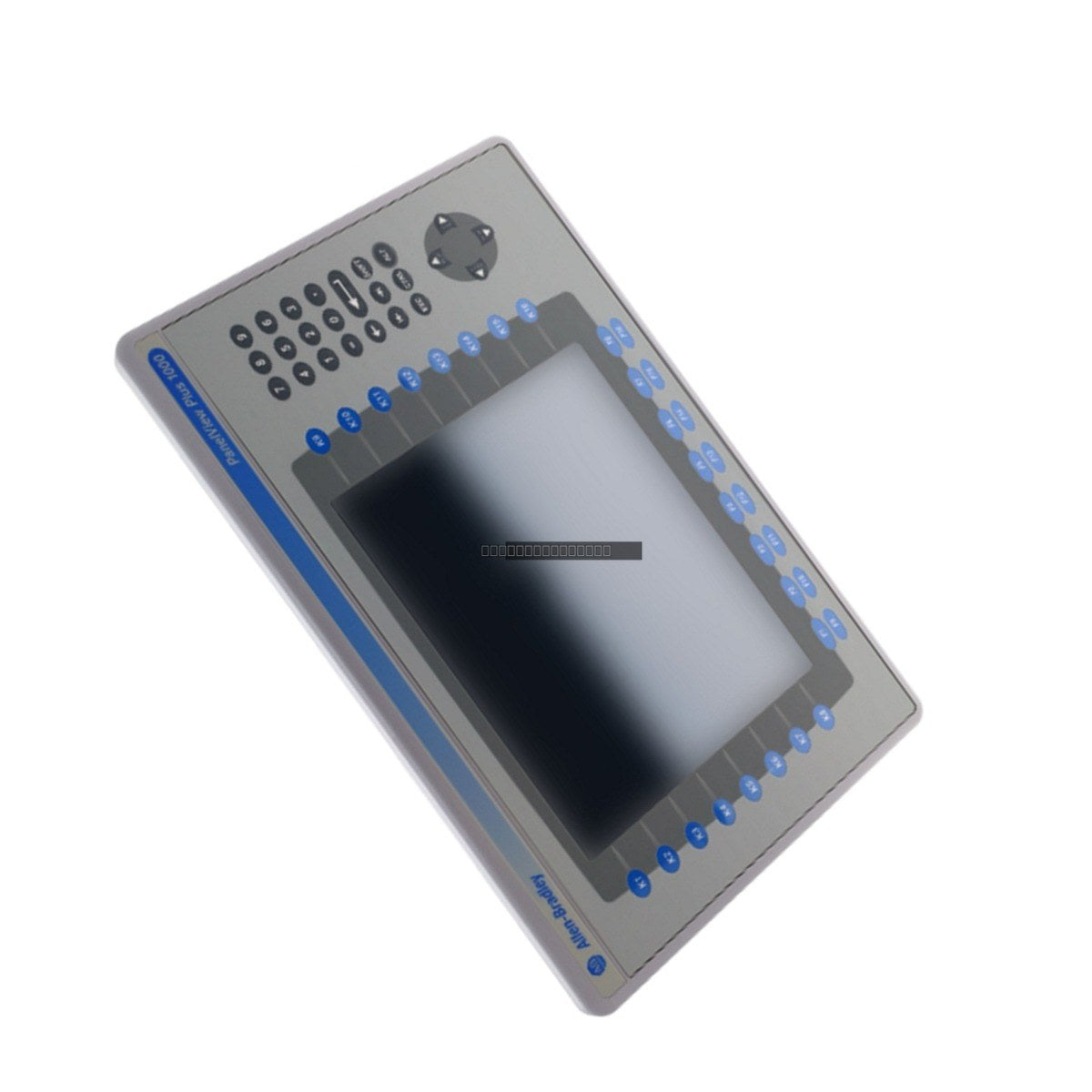

The 2711P-B15C6D7 is a high-performance PanelView Plus 1500 operator interface terminal designed for demanding industrial environments. It provides robust visualization, real-time diagnostic monitoring, and supervisory control for complex automation systems, including oil and gas, power generation, and large-scale manufacturing applications. The unit features a dual-input design, combining a tactile keypad with an analog-resistive touchscreen to ensure reliable operation in environments where operators may be wearing gloves or where high vibration is present.
Features
Dual-input interface: Tactile keypad and analog-resistive touchscreen for versatile control.
High-resolution display: 15-inch color active matrix TFT LCD with 1024 x 768 XGA resolution.
Comprehensive connectivity: Supports DH+, RIO, DH-485, EtherNet/IP, and serial communication protocols.
Expandable storage: Includes a CompactFlash slot for data logging, recipe management, and firmware updates.
Industrial durability: Engineered for harsh conditions with a field-replaceable CCFL backlight.
Applications
This terminal is suitable for integration into PLC and DCS networks, serving as a primary HMI for monitoring process variables, managing system alarms, and executing supervisory commands in critical industrial infrastructure.
Technical Specifications
Model
2711P-B15C6D7
Display
15-inch Color TFT LCD (1024 x 768)
Input Voltage
24 VDC
Power Consumption
70 W (max)
Communication
Ethernet, DH+, RIO, DH-485, RS-232/422/485
USB Ports
1 Host, 1 Device
Operating Temperature
0 to 55 deg C
Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain NEMA/IP seal integrity.
Verify that the 24 VDC power supply is properly grounded and isolated from high-voltage noise sources.
Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating.
Use shielded communication cables for Ethernet and serial connections to minimize EMI interference in industrial environments.
Always power down the system before inserting or removing CompactFlash cards or connecting communication cables.
FAQ
What is the primary input method for this terminal?
The 2711P-B15C6D7 features a hybrid input system, offering both a physical keypad for rapid navigation and an analog-resistive touchscreen for graphical interaction.
Can the backlight be replaced in the field?
Yes, the unit utilizes a field-replaceable CCFL backlight, which has a typical operational life of 50,000 hours.
Does this unit support external storage?
Yes, it includes a dedicated CompactFlash Type I/II slot for data logging, recipe storage, and firmware management.
