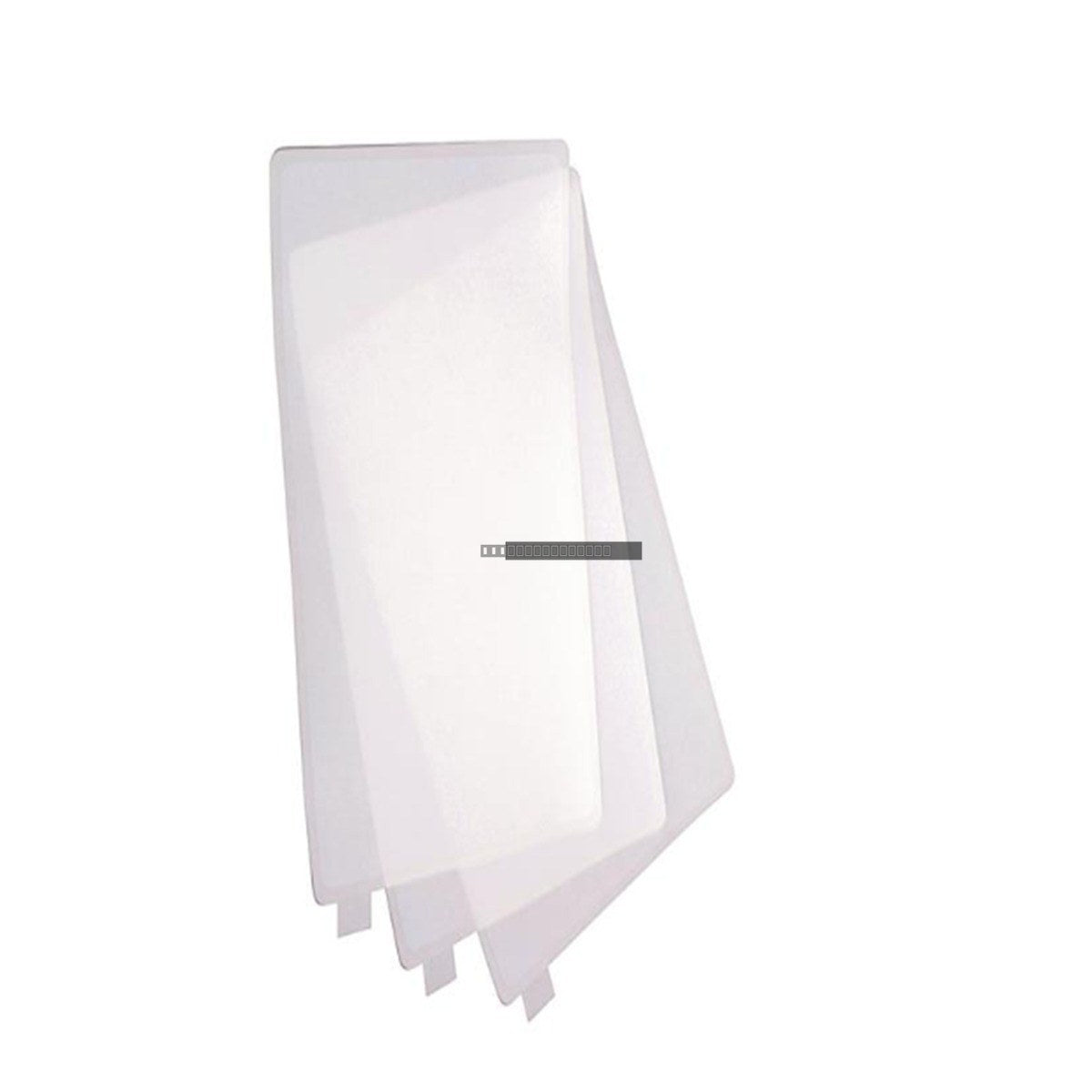

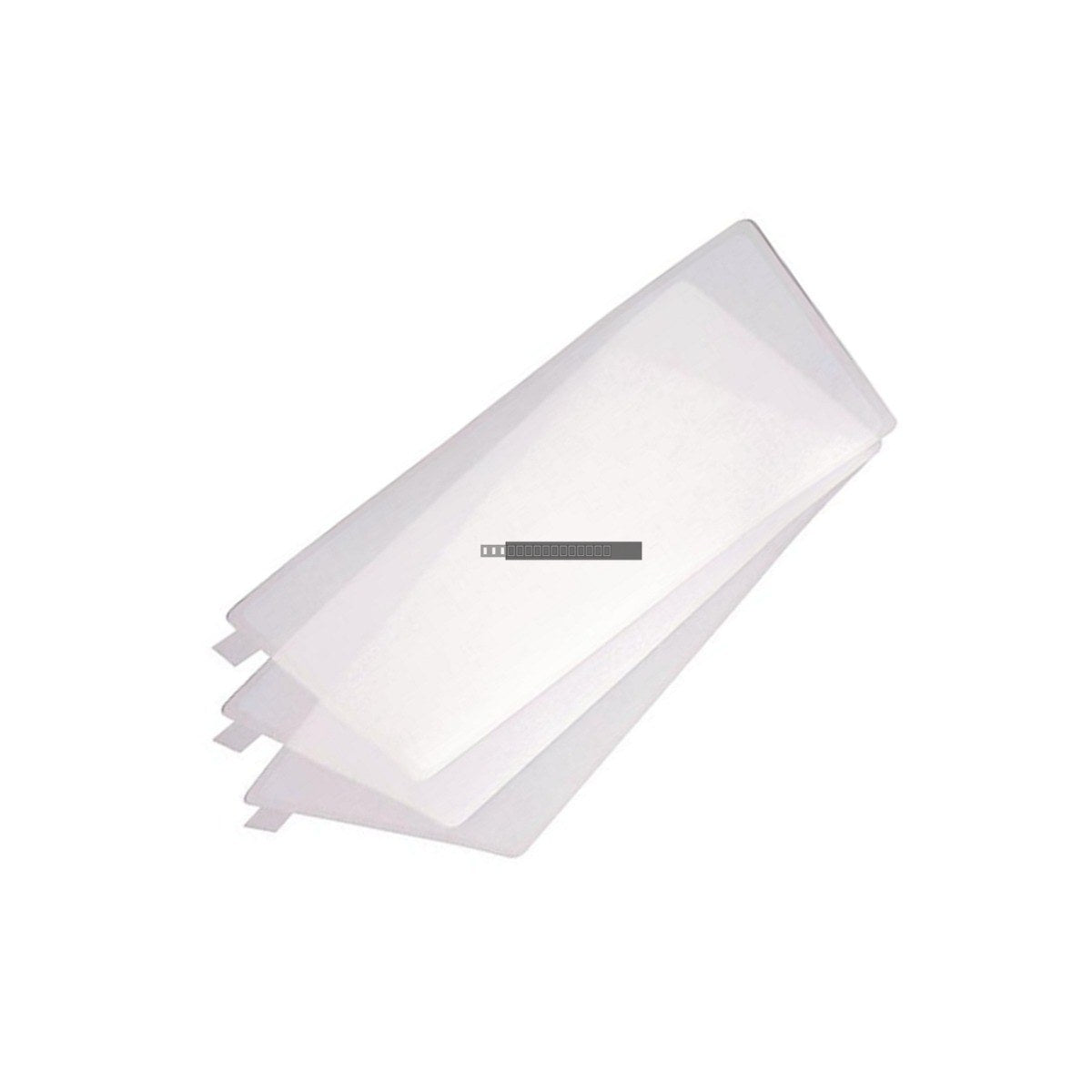

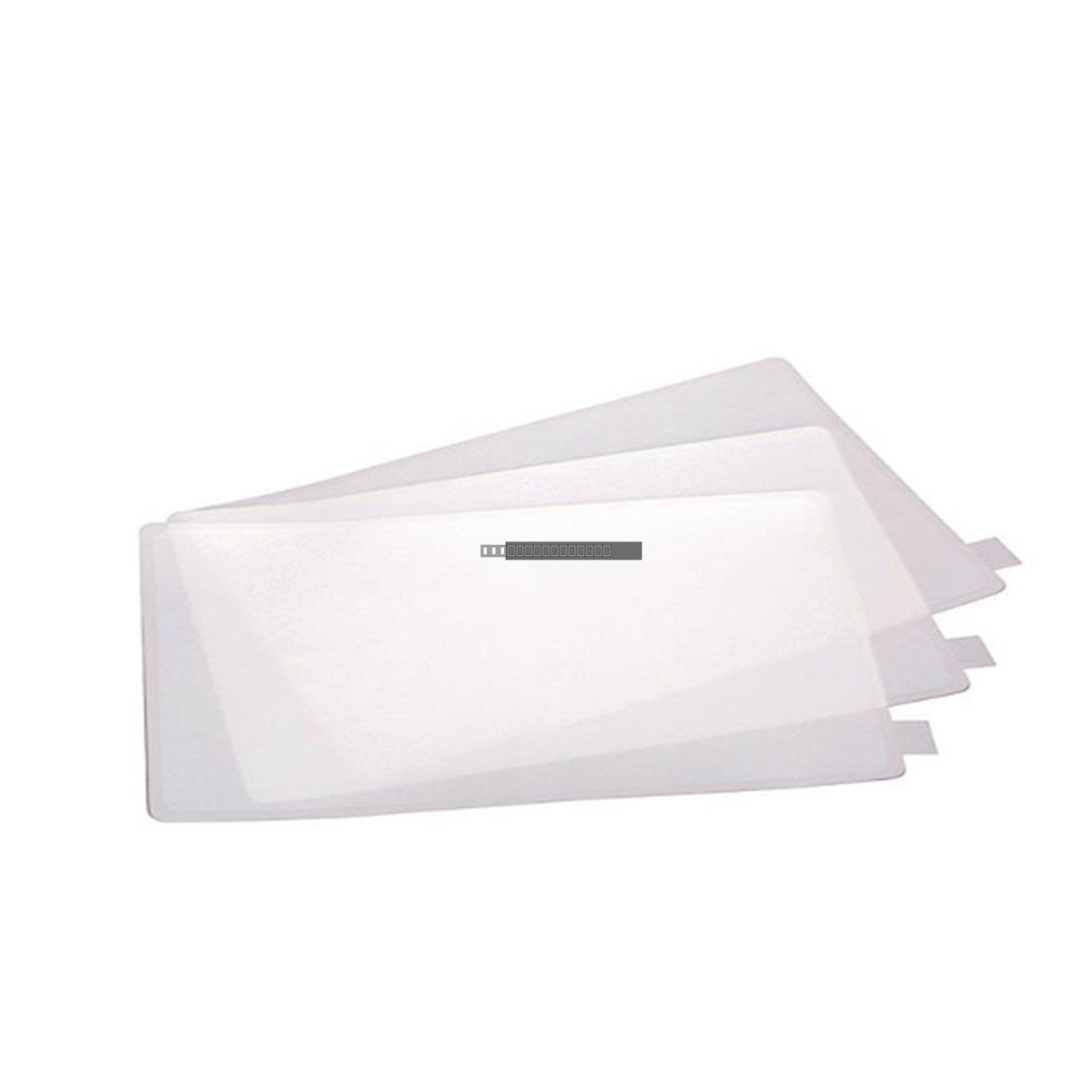

The 2711-NV6T is an antiglare overlay designed by Allen-Bradley for use with the PanelView 1000 series human-machine interface (HMI) terminals. This protective component is engineered to enhance screen visibility by minimizing light reflection and glare, ensuring clear operator interaction in industrial environments. It also serves as a protective barrier for the 10.4-inch touchscreen interface, helping to maintain display integrity and operational reliability in demanding control room or factory-floor settings.
Features
Precision-engineered for 10.4-inch PanelView 1000 touchscreen terminals.
Reduces ambient light glare to improve display readability.
Provides a protective layer against surface wear and environmental contaminants.
Maintains consistent touch sensitivity for reliable user input.
Applications
This overlay is intended for use in industrial automation systems where PanelView 1000 terminals are deployed. It is suitable for applications requiring high-clarity monitoring and frequent operator interaction, such as machine control, process visualization, and system diagnostics in manufacturing or utility environments.
Technical Specifications
Model
2711-NV6T
Brand
Allen-Bradley
Product Line
PanelView 1000
Product Type
Antiglare Overlay
Display Size
10.4 inches
Screen Type
Touchscreen
Operating Temperature
0 to 40 degC
Operating Humidity
5 to 95 percent (non-condensing)
Maximum Altitude
1000 meters
Installation Guidelines
Ensure the PanelView terminal is powered down before beginning the installation process.
Clean the surface of the existing display thoroughly to remove dust, oils, and debris using an approved industrial cleaner.
Carefully align the overlay with the screen edges to ensure proper fitment and touch responsiveness.
Apply the overlay slowly to prevent the formation of air bubbles between the adhesive layer and the screen surface.
Avoid using sharp tools or abrasive materials during installation to prevent scratching the overlay or the underlying display.
FAQ
Is this overlay compatible with all PanelView 1000 models?
The 2711-NV6T is specifically designed for the 10.4-inch PanelView 1000 series. Please verify your specific terminal model number to ensure compatibility before installation.
Does the overlay affect touch sensitivity?
No, the 2711-NV6T is designed to maintain the original touch sensitivity of the PanelView terminal when applied correctly.
