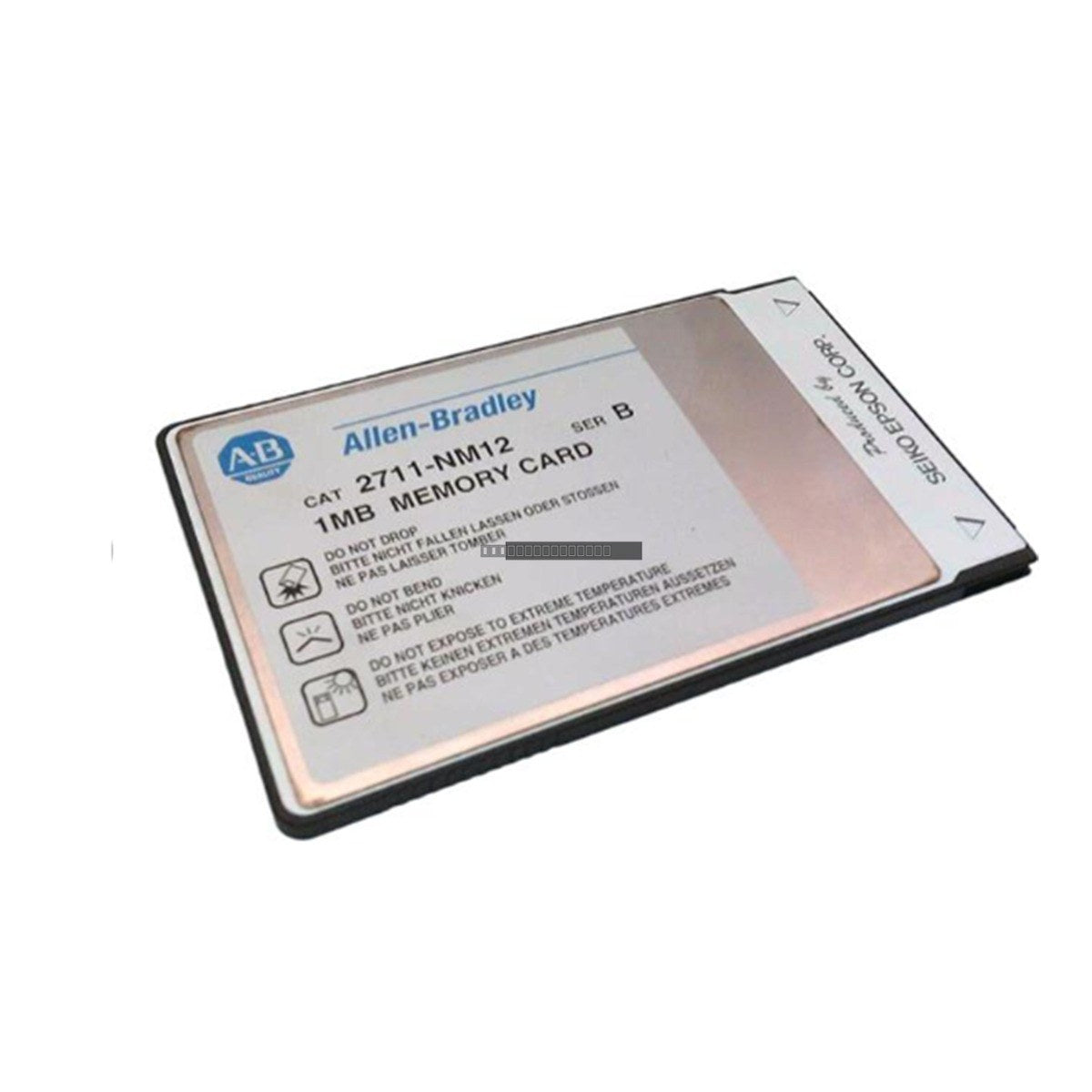

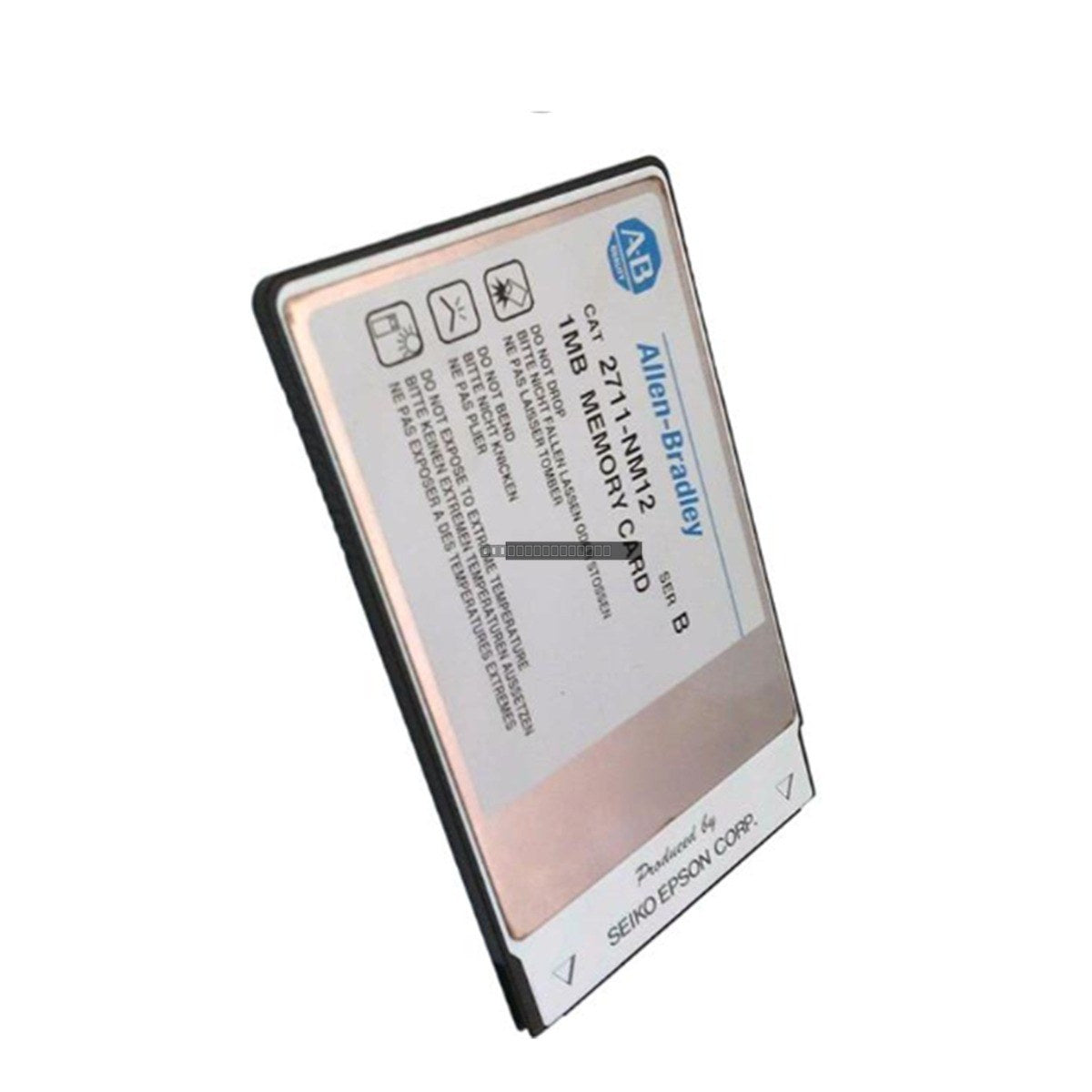

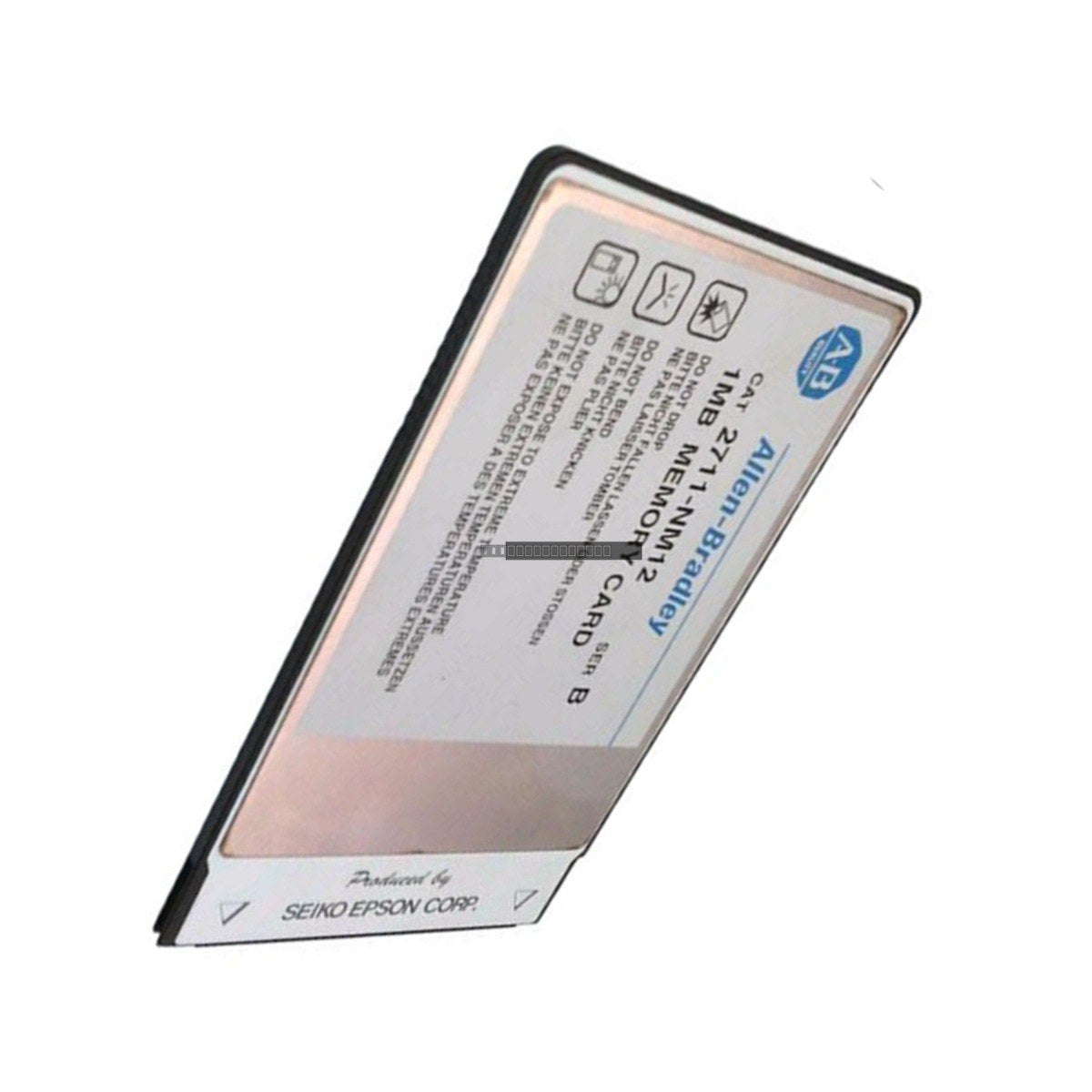

The Allen-Bradley 2711-NM12 is a PCMCIA linear flash memory card engineered for program and data backup within industrial operator interface systems. Designed specifically for compatibility with PanelView series operator terminals, this 1 MByte memory module provides reliable data retention to support application management, configuration storage, and system recovery. It serves as a critical component for maintaining legacy PanelView automation networks.
Features
Standard PCMCIA linear flash memory architecture.
1 MByte storage capacity for terminal programs and operational data.
Optimized for industrial HMI platforms and PanelView series terminals.
Robust construction for stable performance in industrial environments.
Applications
This memory card is primarily used for backing up and restoring application files, configuration settings, and firmware data on legacy Allen-Bradley PanelView operator terminals. It is essential for field maintenance, system upgrades, and disaster recovery procedures where terminal data must be preserved or transferred.
Technical Specifications
Model
2711-NM12
Brand
Allen-Bradley
Memory Type
PCMCIA Linear Flash
Storage Capacity
1 MByte
Compatibility
PanelView Series Operator Terminals
Lifecycle Status
Discontinued
Installation Guidelines
Ensure the PanelView terminal is powered down before inserting or removing the PCMCIA card to prevent data corruption or electrical damage.
Handle the card by its edges; avoid touching the gold-plated connector pins to prevent oxidation or ESD damage.
Insert the card into the designated PCMCIA slot on the PanelView terminal until it is firmly seated.
Verify that the terminal recognizes the memory card via the system configuration or file management menu after power-up.
Store in a clean, dry environment when not in use to maintain the integrity of the flash memory contacts.
FAQ
Is this card compatible with all PanelView terminals?
The 2711-NM12 is designed for specific legacy PanelView models that feature a PCMCIA slot. Please verify your specific terminal's hardware manual to confirm support for 1 MByte linear flash cards.
Can this card be used for long-term data storage?
Yes, linear flash memory is non-volatile and designed for reliable data retention in industrial applications, making it suitable for storing critical backup files for extended periods.
