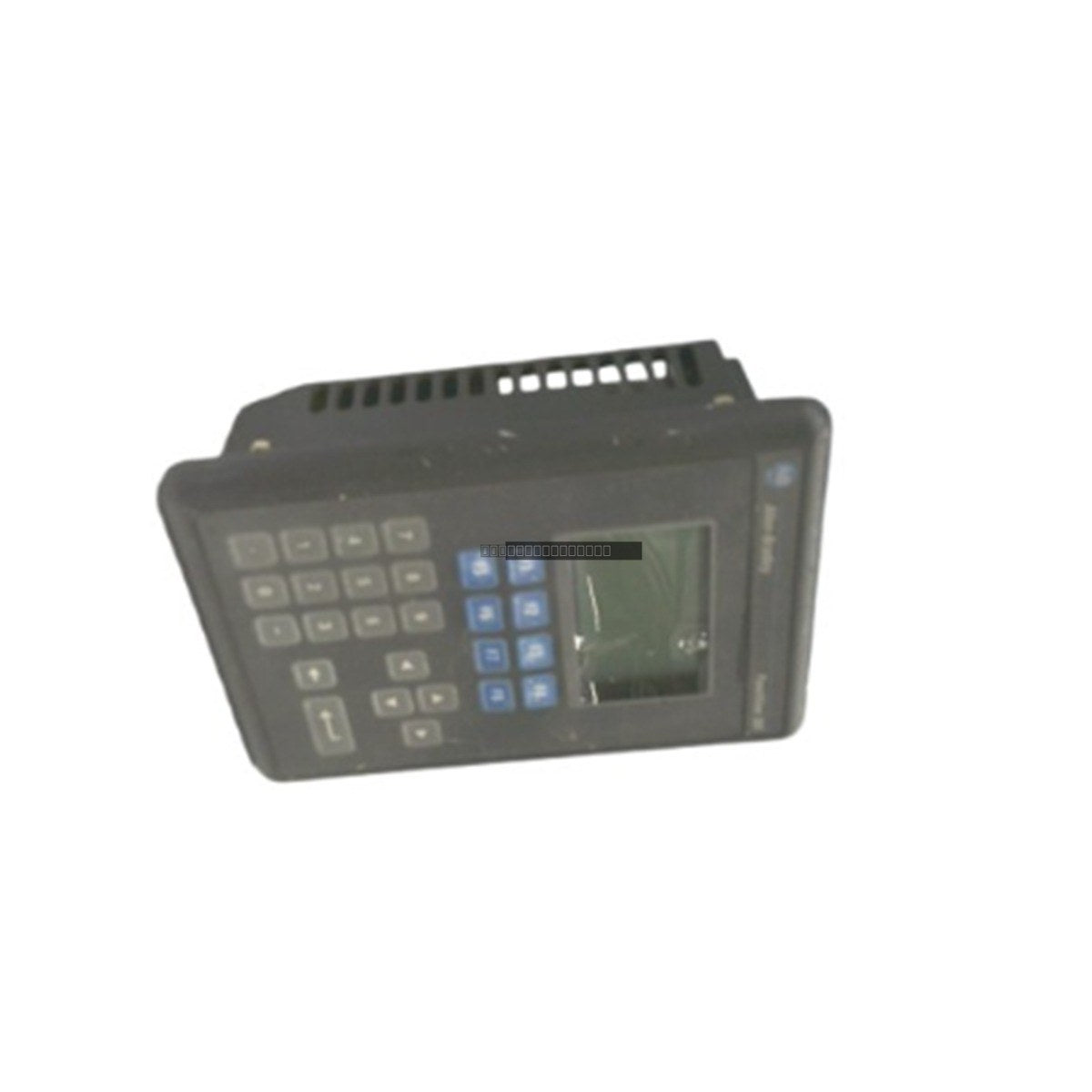

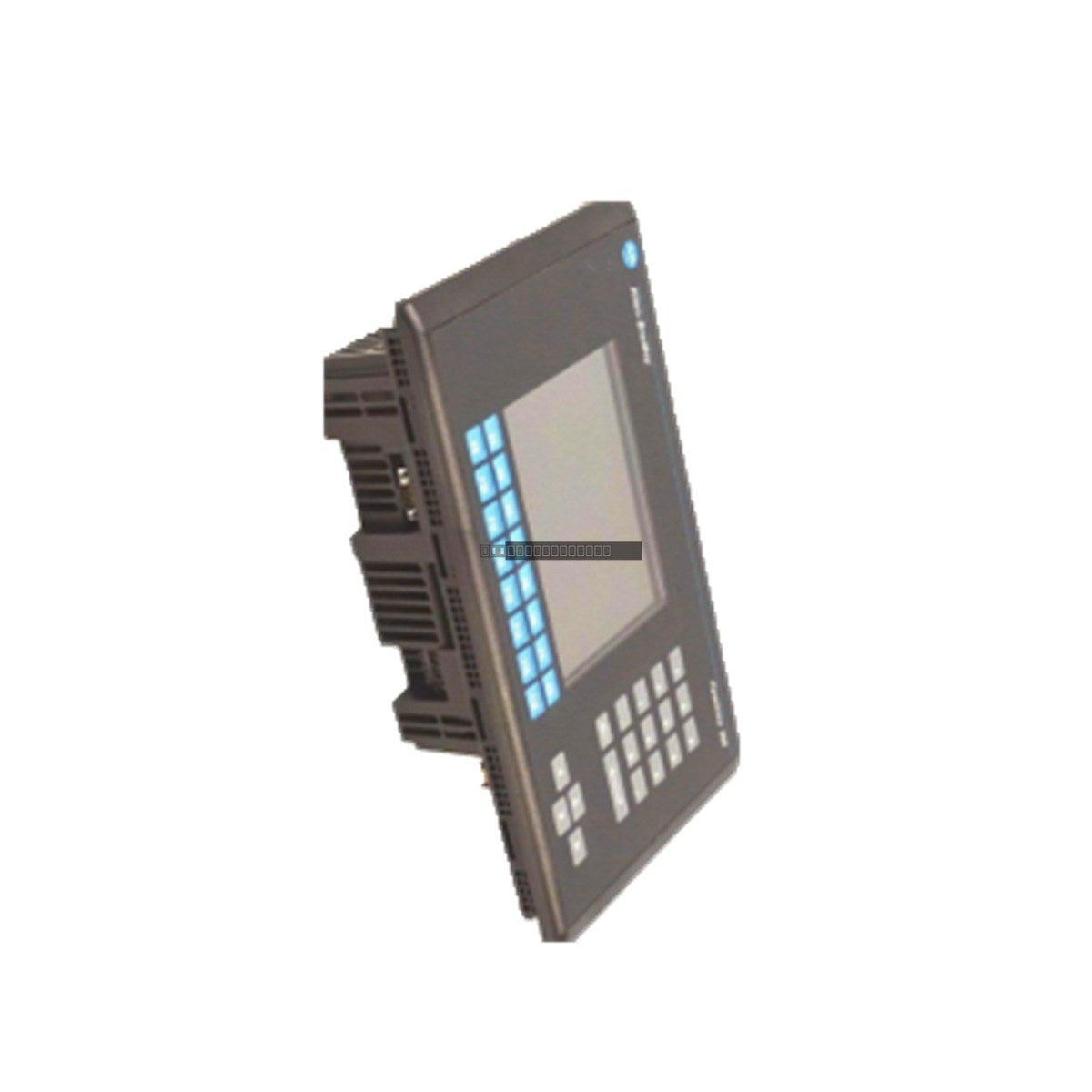

The Allen-Bradley 2711-K6C9L1 is a PanelView 600 series operator terminal engineered for robust human-machine interface (HMI) applications in industrial environments. This unit facilitates essential process visualization, system monitoring, and operator control, supporting increased productivity and streamlined diagnostics in manufacturing, material handling, and packaging automation tasks.
Features
5.7-inch color display with 320 x 234 pixel resolution for clear process data visualization.
RS-232 communication port supporting DH-485 protocol for integration with compatible PLC systems.
Dedicated printer port for hard-copy alarm reporting and event documentation.
Designed for 24 VDC power input, suitable for standard industrial control cabinets.
Ruggedized enclosure ratings including NEMA 12/13, 4X, and IP54/IP65 for protection against dust and moisture.
Applications
This operator interface is widely utilized in discrete manufacturing, packaging lines, and material handling systems where real-time monitoring and direct operator interaction with the control system are required.
Technical Specifications
Model
2711-K6C9L1
Display Size
5.7 inches
Display Type
Color
Resolution
320 x 234 pixels
Input Voltage
24 VDC
Communication
RS-232 (DH-485), Printer Port
Enclosure Rating
NEMA 12/13, 4X, IP54, IP65
Operating Temperature
0 to 50 degC
Installation Guidelines
Ensure the panel cutout is prepared to the manufacturer's specified dimensions to maintain the integrity of the NEMA/IP seal.
Verify that the 24 VDC power supply is stable and properly grounded before connecting to the terminal.
Use shielded communication cables for the RS-232 connection to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate clearance around the unit to allow for proper ventilation and heat dissipation.
Always disconnect power before performing any wiring or maintenance on the operator terminal.
FAQ
What communication protocol does the 2711-K6C9L1 support?
This model features an RS-232 port that supports the DH-485 communication protocol for data exchange with Allen-Bradley controllers.
Is this unit suitable for washdown environments?
Yes, the unit carries NEMA 4X and IP65 ratings, indicating it is designed to withstand dust, dirt, and water spray, making it suitable for many demanding industrial settings.
