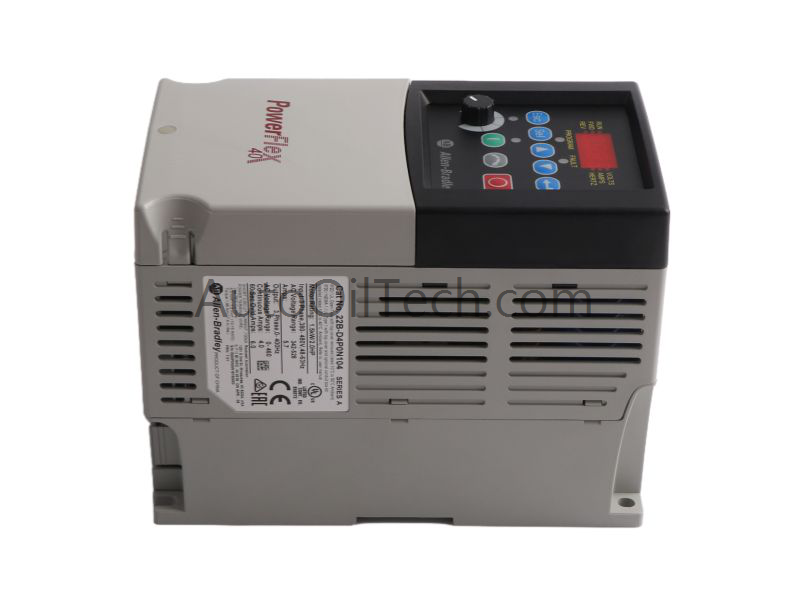

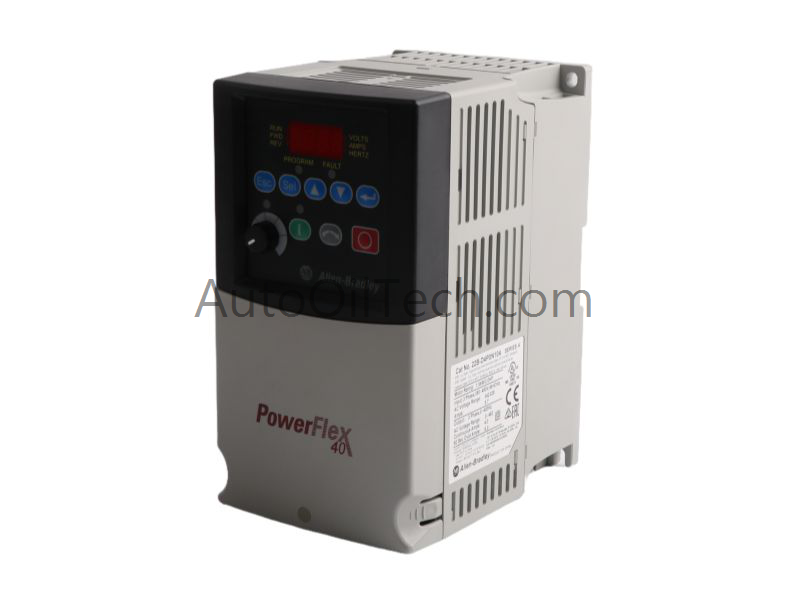

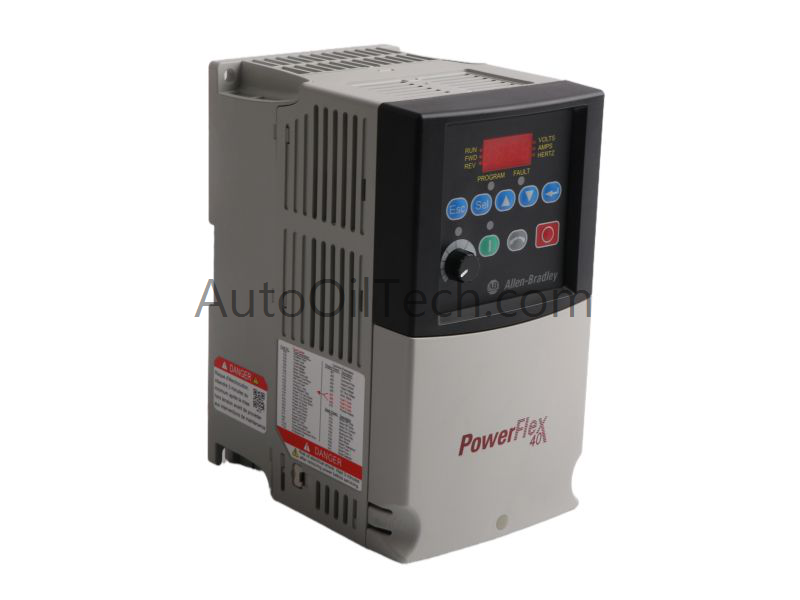

The Allen-Bradley 22B-D4P0N104 PowerFlex 40 AC Drive is a compact inverter drive designed for precise motor control. It delivers sensorless vector performance with high-starting torque and accurate speed regulation, making it ideal for applications such as conveyors, lifting systems, and variable-load machinery. With integrated PID control and autotune features, the 22B-D4P0N104 simplifies automation while ensuring reliable operation.
Technical Specifications
Parameter
Value
Model Number
22B-D4P0N104
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
PowerFlex 40 AC Drive
Motor Support
Up to 1.5 kW (2 HP)
Input Voltage
342–528V AC, three-phase
Output Voltage
0–460V AC
Continuous Output Current
4.0A
Control Method
Sensorless vector control
Built-in Functions
PID control, autotune, timer, counter, step logic
Communication Ports
RS485 embedded, optional DeviceNet/EtherNet/IP
Enclosure Rating
IP20, open-type
Cooling
Integrated
Operator Interface
Fixed keypad
Dimensions
3.5 × 13 × 14.5 cm
Weight
0.9 kg
Operating Environment
Clean, non-corrosive
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
The Allen-Bradley 22B-D4P0N104 delivers high-starting torque and precise speed regulation.
Integrated PID control allows standalone process adjustments without external controllers.
Autotune optimizes motor performance by configuring flux current and IR compensation.
Advanced logic functions reduce hardware costs and simplify control architectures.
Compact IP20-rated design supports panel mounting with integrated cooling.
