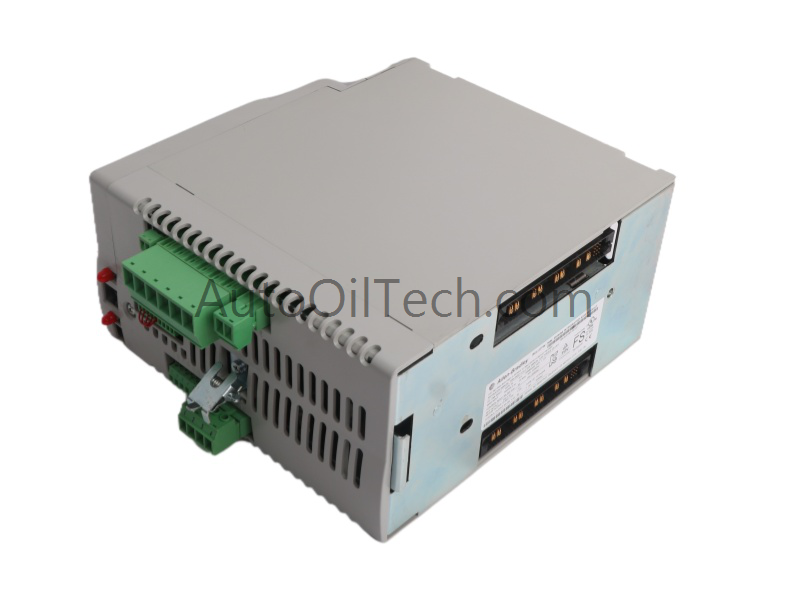

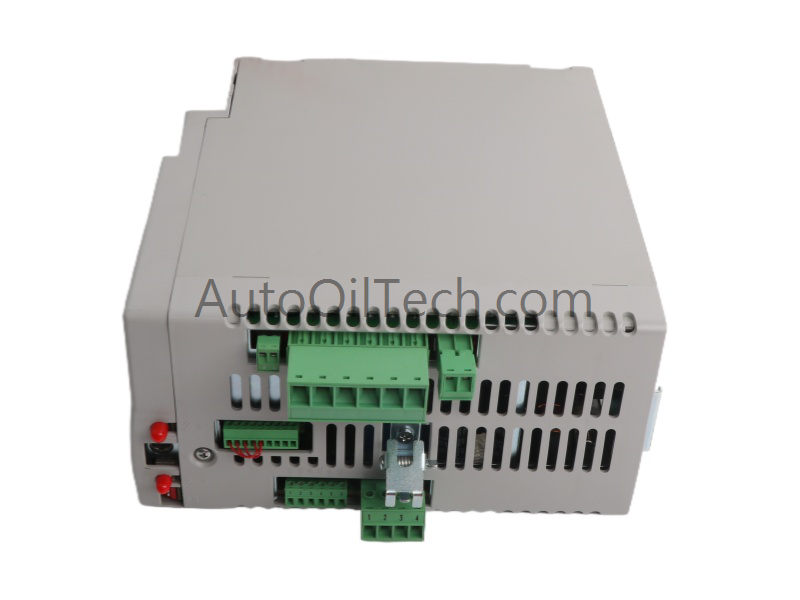

Allen-Bradley 2094-BC01-M01-S Integrated Axis Module

In stock!

Part Number: 2094-BC01-M01-S
Brand: Allen-Bradley
Type: Integrated Axis Module
Dimensions: 3.5x13x14.5cm
Country of Origin: USA
Barcode: 8537101190

Additional Specifications

Color / Pattern	Black Green
Power Source	AC-powered
Controller Design	Compact

Product Description

Product Overview

The Allen-Bradley 2094-BC01-M01-S Integrated Axis Module is part of the Kinetix 6000 multi-axis servo drive family. It combines inverter and converter sections into a single compact unit, delivering 9A inverter power and 6kW converter capacity. Designed for 400V-class systems, the module operates at 460V AC with a frequency range of 47–63 Hz. Its built-in Safe Torque Off (STO) function ensures certified safety compliance for demanding automation environments.

Technical Specifications

Parameter	Value
Model Number	2094-BC01-M01-S
Manufacturer	Allen-Bradley (Rockwell Automation)
Module Type	Integrated Axis Module
Input Voltage Range	360–480V AC
Operating Voltage	460V AC
Frequency Range	47–63 Hz
Inverter Power	9A
Converter Power	6kW
Total Wattage	3.9kW
Torque Capacity	Up to 250% continuous rated torque
Communication Interface	SERCOS fiber optic
Compatible Motors	Kinetix MP, TL/TLY, RDB, 1326AB, F-Series, LDAT actuators
Safety Function	STO, ISO 13849-1 PLe / SIL3 certified
Mounting Method	Power rail
Dimensions	3.5 × 13 × 14.5 cm
Weight	0.9 kg
Origin	USA
HS Code	8537101190
Condition	Brand New
Discontinued	June 30, 2016

Functional Highlights

The Allen-Bradley 2094-BC01-M01-S integrates inverter and converter sections for efficient motion control.
STO functionality prevents unintended restart after a safety trip, ensuring operator and equipment protection.
Fiber optic SERCOS interface supports linear and ring topologies for high-speed, noise-resistant communication.
Compatible with a wide range of motors and actuators, enabling flexible system integration.
High torque delivery allows downsizing of power supplies and axis modules, reducing system footprint.
