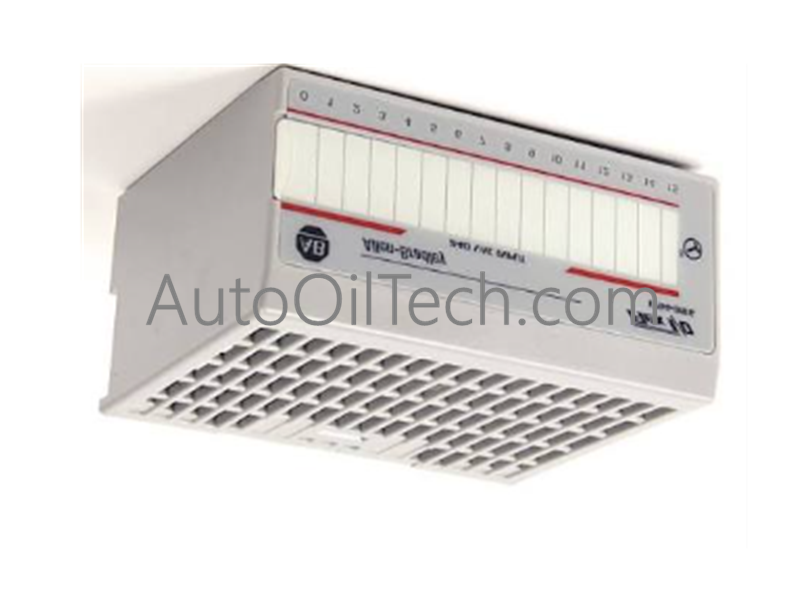

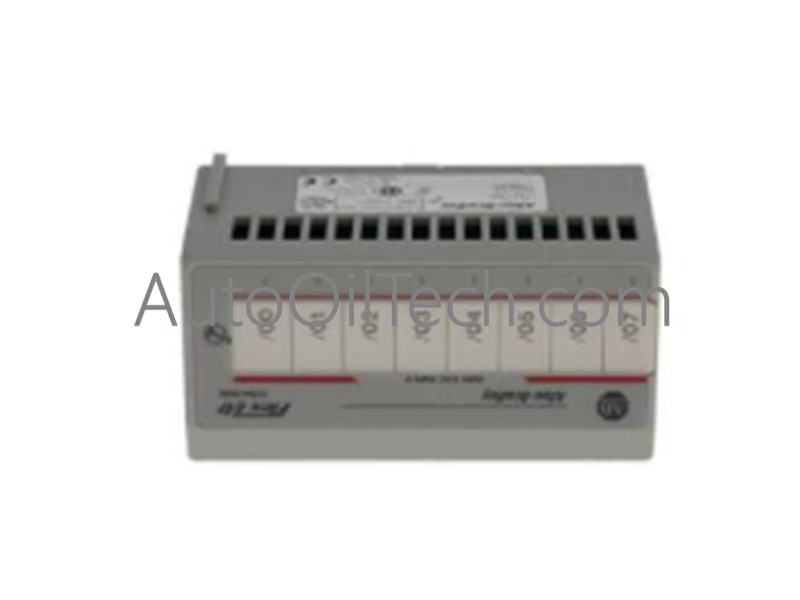

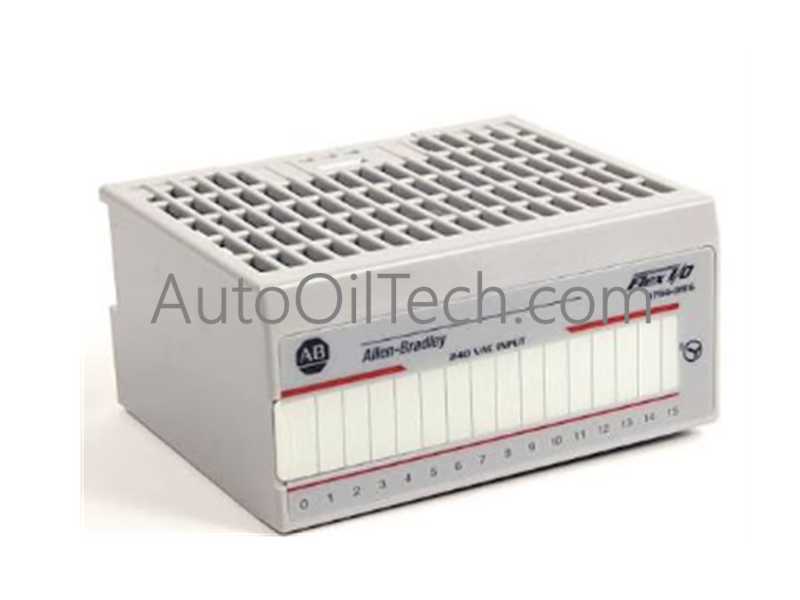

The Allen-Bradley 1794-IM8 serves as the primary 1794-IM8 Discrete Input Module utilized to execute 240 VAC field signal monitoring across Allen-Bradley FLEX I/O network platforms.
Hardware Specifications
Parameter
Specification
Model
1794-IM8
Brand
Allen-Bradley
Origin
USA
Weight
0.07 lbs (0.032 kg)
Dimensions
Standard FLEX I/O Single-Slot Module
Operating Temp
0 to 55 deg C (32 to 131 deg F)
Power Consumption
Passive Input Circuitry / Backplane Powered
Number of Inputs
8 Point Discrete Inputs
Nominal Voltage
240 VAC
Enclosure Rating
Open Style (IP20)
Mounting Type
DIN Rail via Terminal Base Assembly
High-Voltage Signal Isolation & Backplane Bus Integration
The Allen-Bradley 1794-IM8 incorporates 8 discrete input channels rated for 240 VAC operation, converting high-voltage field contact signals into deterministic logic states for processing across the FLEX I/O backplane bus. Designed for high-density I/O configurations, the module interfaces through a terminal base unit, eliminating the need to disconnect field wiring during module replacement. Built-in optocouplers deliver galvanic isolation between the high-voltage 240 VAC field inputs and low-voltage backplane logic circuits, protecting network adapters from electrical transients and common-mode voltage spikes.
Frequently Asked Questions
Q: Can the 1794-IM8 input module be replaced without turning off system power?
A: Yes. When mounted on a compatible 1794 terminal base unit, the 1794-IM8 supports Removal and Insertion Under Power (RIUP), allowing field module swapping while backplane communication to remaining I/O modules stays active.
Q: What terminal base units are compatible with the 1794-IM8 discrete input module?
A: The 1794-IM8 interfaces with 2-wire or 3-wire 1794 terminal bases, such as the 1794-TB2, 1794-TB3, or 1794-TB3S screw and spring-clamp terminal base assemblies.
Q: What is the IP rating for the 1794-IM8 module casing?
A: The module carries an IP20 open-style enclosure rating and must be installed inside an industrial enclosure providing appropriate protection against environmental contaminants and dust.
Field Installation Guidelines
Mount the selected 1794 terminal base assembly firmly onto a grounded 35 mm DIN rail.
Turn the module keyswitch on the terminal base to position 8 to match the 1794-IM8 pinout requirements.
Wire the 240 VAC field inputs into the designated terminal base screw terminals, ensuring proper phase and neutral line alignment.
Align the 1794-IM8 module rear connector with the terminal base socket and press firmly until the locking mechanism latches.
Verify that all AC power field wiring is safely enclosed before energizing the 240 VAC input supply.
