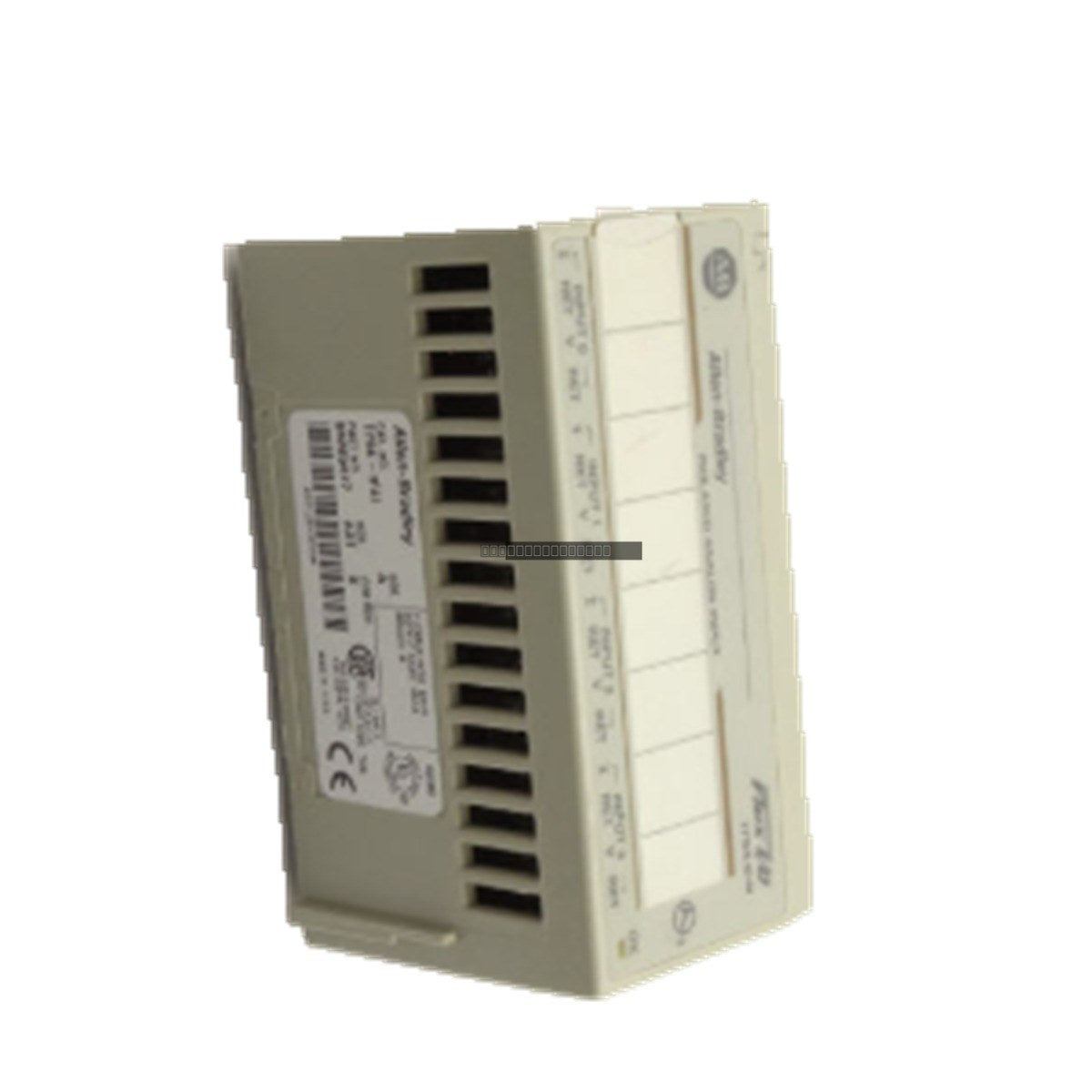

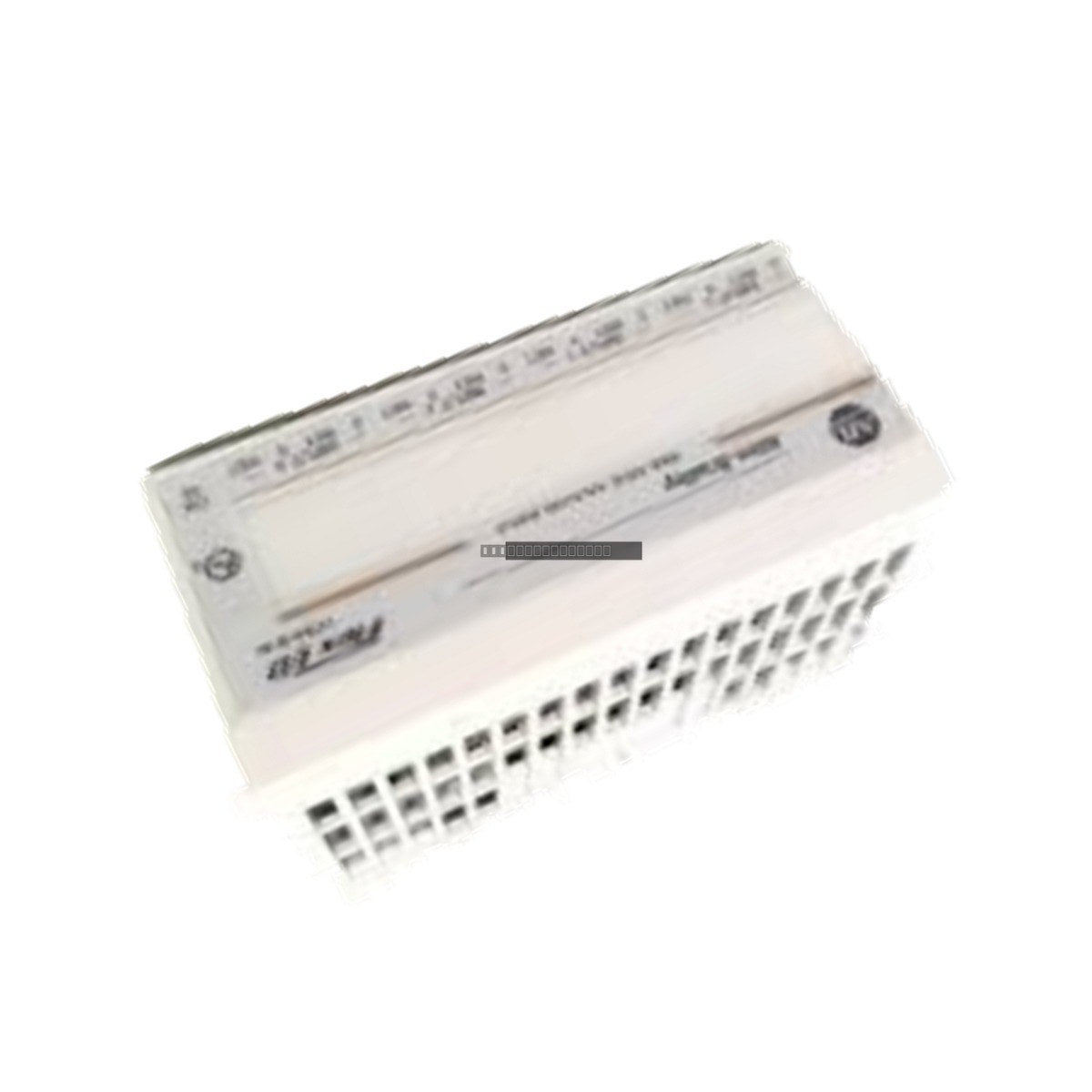

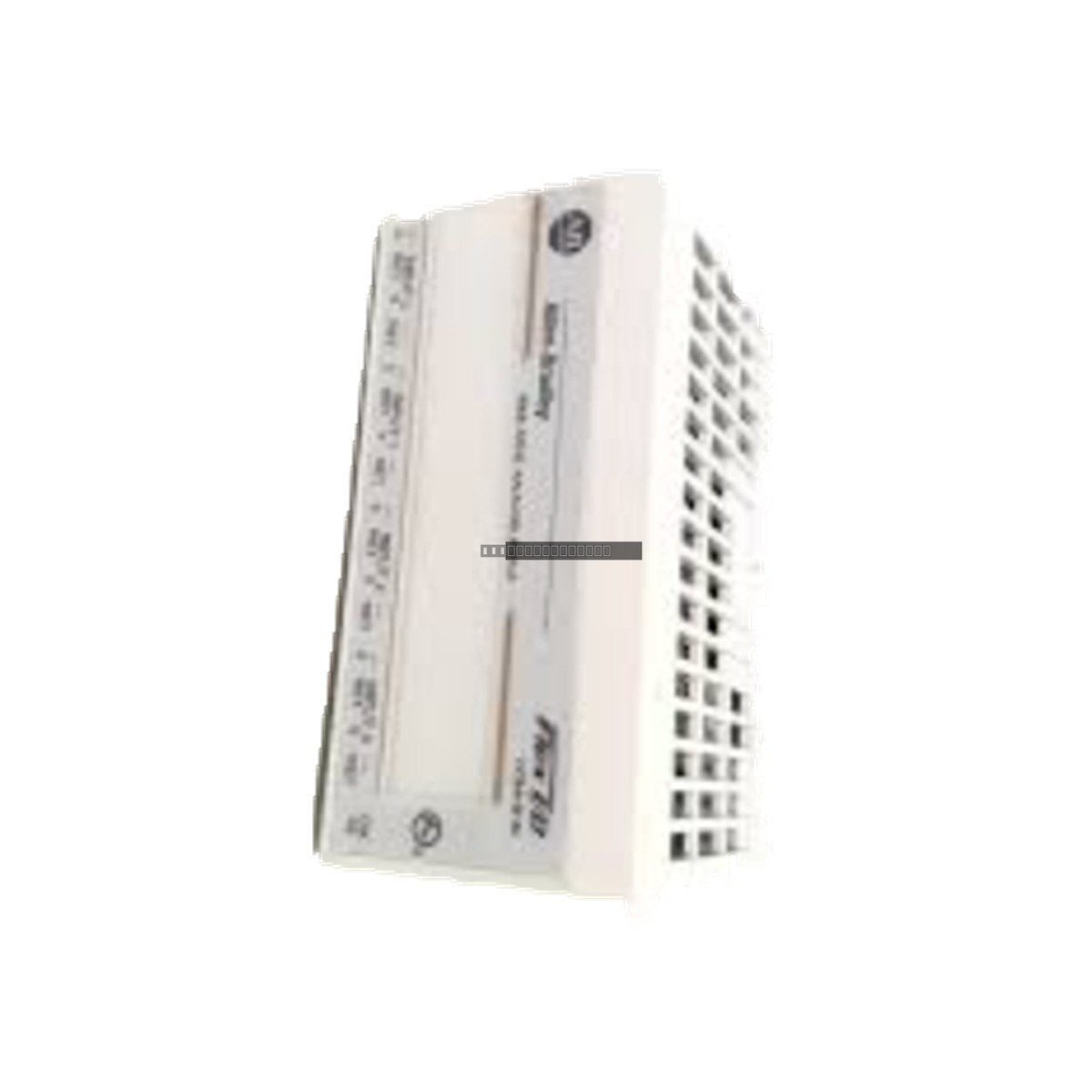

The Allen-Bradley 1794-IE4XOE2 is a high-performance analog combination module designed for the FLEX I/O system. This module provides a compact solution for industrial control applications requiring both analog input and output capabilities within a single, space-saving footprint. It is engineered to interface seamlessly with various sensors and actuators, supporting precise process control and monitoring.
Features
Integrated analog I/O: Features 4 analog inputs and 2 analog outputs.
Resolution: 12-bit resolution for accurate signal conversion.
FLEX I/O Compatibility: Designed for modular integration within the Allen-Bradley FLEX I/O platform.
Compact Design: Optimized for high-density mounting in control cabinets.
Diagnostic Capabilities: Built-in status indicators for monitoring module health and I/O status.
Applications
This module is suitable for a wide range of industrial automation tasks, including:
Process control systems for temperature, pressure, and flow monitoring.
Integration with variable frequency drives (VFDs) and valve positioners.
Data acquisition in distributed control architectures.
General-purpose analog signal processing in manufacturing and utility environments.
Technical Specifications
Product Model
1794-IE4XOE2
Module Type
Analog Combination Module
Inputs
4 Analog Channels
Outputs
2 Analog Channels
Resolution
12-bit
System Compatibility
FLEX I/O
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the FLEX I/O base is securely mounted to a standard DIN rail before installing the module.
Always disconnect power from the backplane before inserting or removing the module to prevent electrical damage.
Use shielded twisted-pair cabling for all analog signals to minimize electromagnetic interference (EMI).
Ensure proper grounding of the cable shields at the source or the module end, following standard industrial grounding practices.
Verify that the module is fully seated in the terminal base and the locking mechanism is engaged.
Maintain adequate clearance around the module to allow for proper heat dissipation and airflow.
FAQ
What is the primary function of the 1794-IE4XOE2?
The 1794-IE4XOE2 is a combination analog I/O module that allows for the simultaneous processing of 4 analog input signals and 2 analog output signals within the Allen-Bradley FLEX I/O system.
Is this module compatible with other FLEX I/O components?
Yes, the 1794-IE4XOE2 is designed specifically for the FLEX I/O platform and is compatible with standard FLEX I/O terminal bases.
What type of resolution does this module provide?
This module features 12-bit resolution, providing sufficient precision for most standard industrial analog control and monitoring applications.
