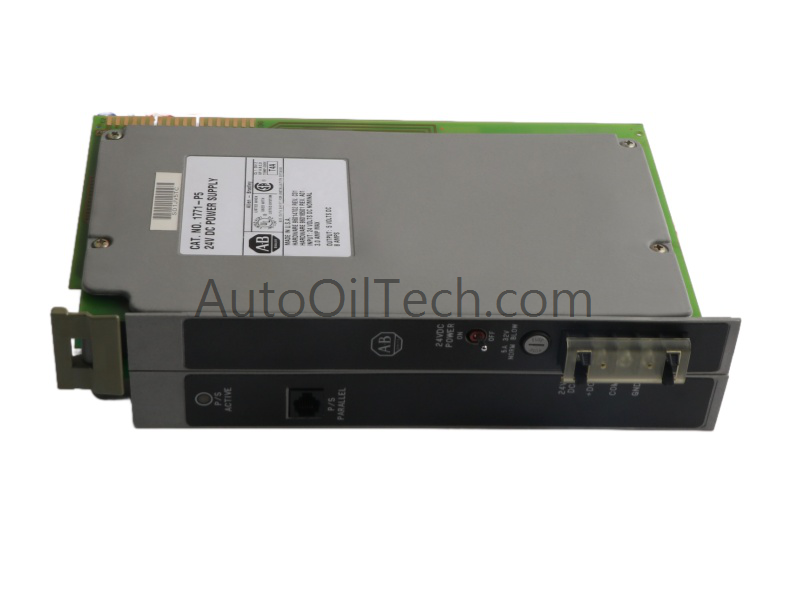

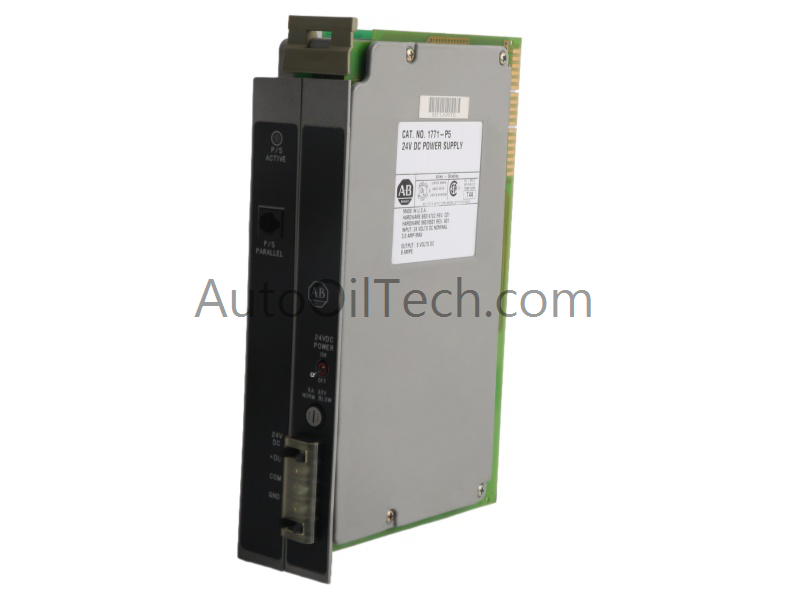

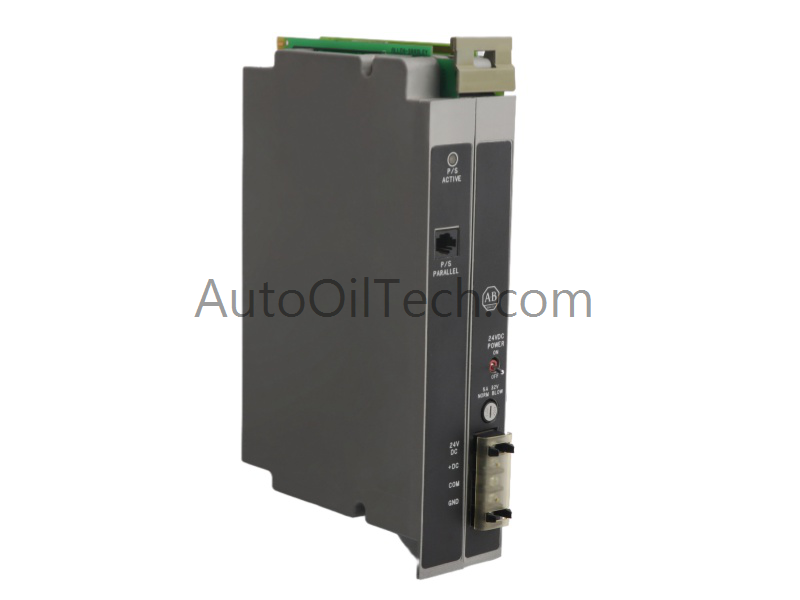

The Allen-Bradley 1771-P5 24V DC Power Supply delivers stable 5.06V DC output at 8A for PLC systems. It supports dual 1771 I/O chassis and integrates seamlessly into ControlLogix environments. The module ensures reliable operation with tested circuit isolation, robust fuse protection, and parallel connection capability.
Technical Specifications
Parameter
Value
Model Number
1771-P5
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
24V DC Power Supply
Input Voltage Range
20.5–30V DC
Output Voltage
5.06V DC
Output Current
Up to 8A
Fuse Protection
5A, 32V normal blow
Isolation Rating
1500V AC RMS / 2160V DC
Power Loss Delay
13.6ms or 60ms adjustable
Dimensions
3.5 × 13 × 14.5 cm
Weight
0.9 kg (datasheet) / 1.18 kg (tested)
Operating Temperature
0–60°C
Humidity Tolerance
5–95% non-condensing
Certification
UL, CSA/H
Origin
USA
HS Code
8537101190
System
PLC
Discontinued
June 30, 2016
Functional Highlights
The Allen-Bradley 1771-P5 supports parallel operation with another 1771-P5 using a 1771-CT cable.
A keying band secures the module to the backplane, ensuring correct installation.
The design withstands industrial environments without de-rating across full temperature and humidity ranges.
Integrated fuse and isolation features enhance safety and protect connected components.
