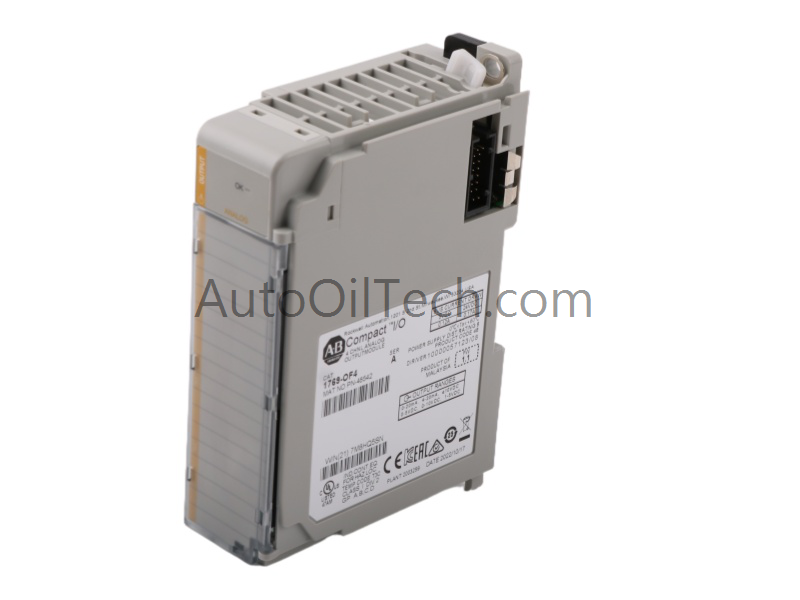

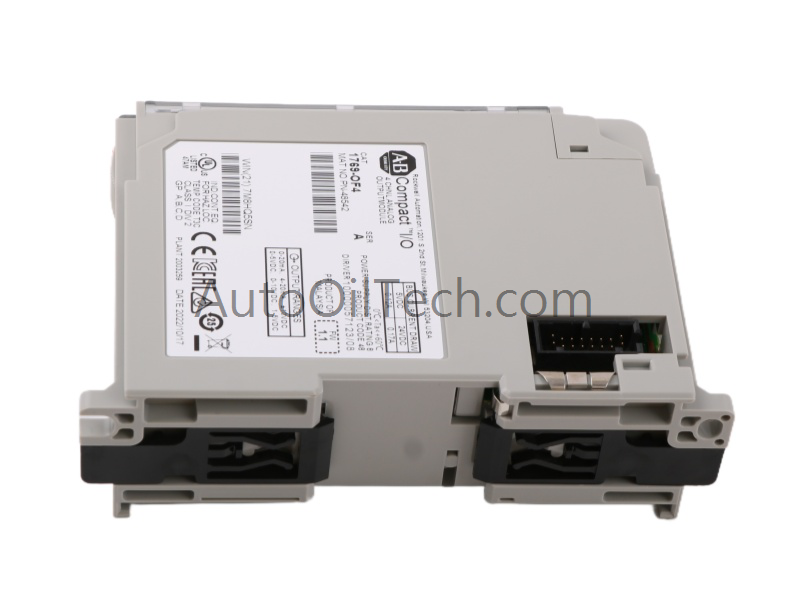

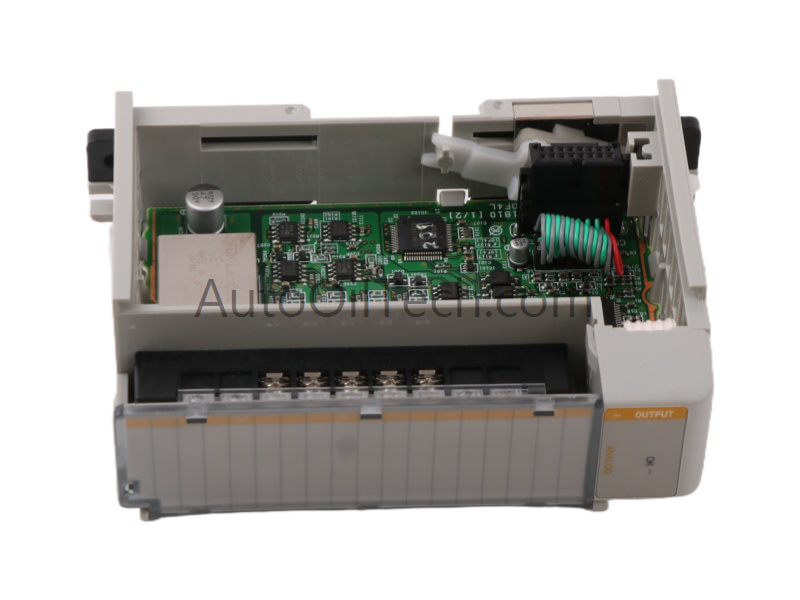

The Allen-Bradley 1769-OF4 Compact I/O Module is a high-precision analog output solution designed for MicroLogix 1500 and CompactLogix systems. It provides four single-ended channels supporting both voltage (0–10V, ±10V) and current (0–20mA, 4–20mA) signals. With fast response times and built-in protection, the 1769-OF4 ensures reliable performance in dynamic industrial automation environments.
Technical Specifications
Parameter
Value
Model Number
1769-OF4
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Compact I/O Analog Output Module
Output Channels
4 single-ended
Signal Ranges
0–10V, ±10V, 0–20mA, 4–20mA
Resolution
15-bit
Accuracy
±0.5% at 25°C
Step Response
< 2.9 ms
Power-Up/Down Response
< 1 ms
Output Ripple
±0.05%
Protection
Overcurrent and overvoltage
Operating Temperature
0–60°C
Installation Requirement
Within 8 modules of power supply
Dimensions
3.5 × 13 × 14.5 cm
Weight
0.9 kg
System
PLC (CompactLogix, MicroLogix 1500)
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
The Allen-Bradley 1769-OF4 provides flexible analog output for voltage and current signals.
High accuracy and 15-bit resolution ensure precise control of final elements.
Fast response times make it suitable for dynamic process applications.
Built-in protection enhances reliability in demanding environments.
Compact design supports DIN rail or panel mounting with efficient installation.
