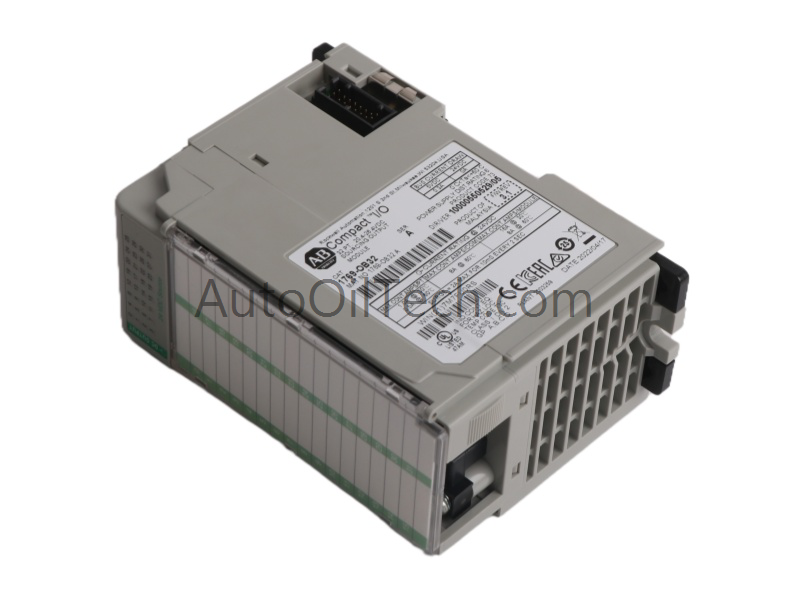

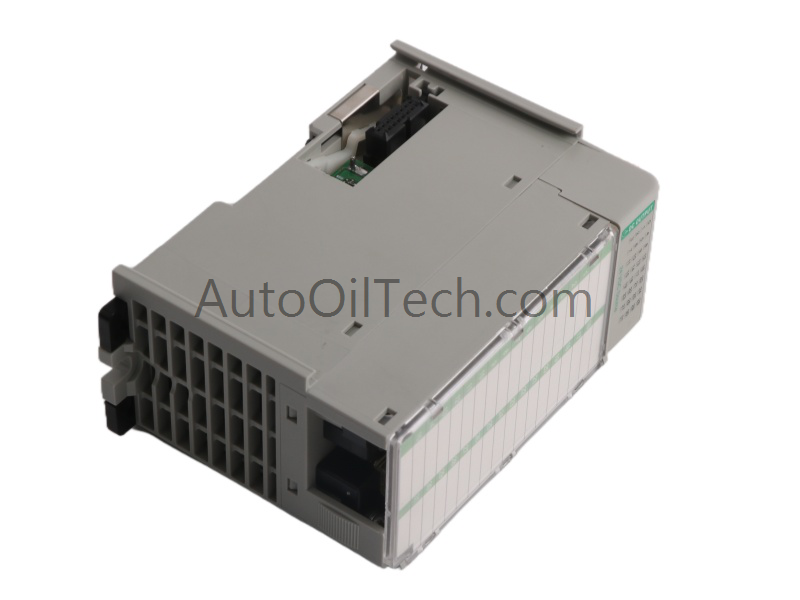

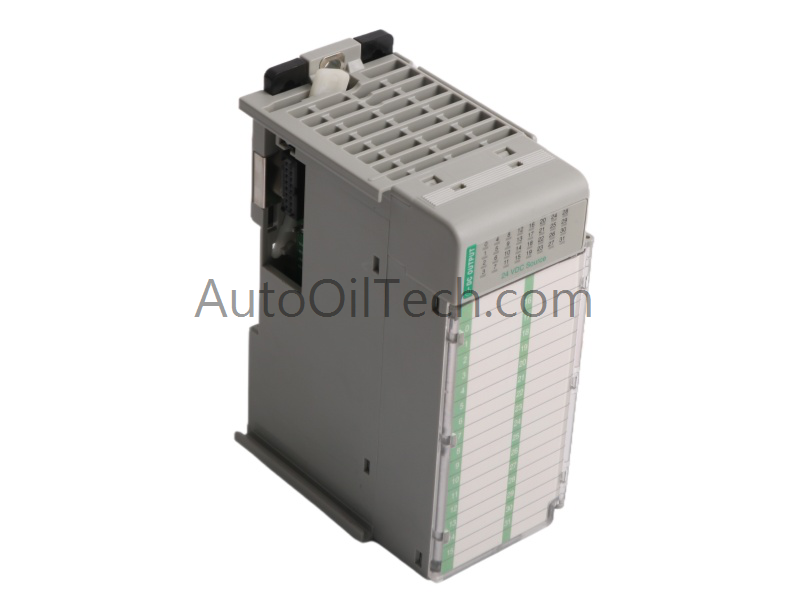

The Allen-Bradley 1769-OB32 Machine Control Module is a high-density 32-point DC sourcing output solution for CompactLogix and MicroLogix 1500 systems. It features two isolated groups of 16 outputs, enabling efficient wiring and reliable operation in space-constrained automation environments. With fast switching times and reinforced insulation, the 1769-OB32 ensures dependable performance in demanding industrial applications.
Technical Specifications
Parameter
Value
Model Number
1769-OB32
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Machine Control / DC Output Module
Output Points
32 (two groups of 16)
Voltage Range
20.4–26.4V DC
Output Current
0.5A per point
ON Delay
0.5 ms
OFF Delay
4 ms
Wiring
Solid 14–22 AWG, Stranded 16–22 AWG
Power Supply Distance
6 modules
Heat Dissipation
4.5 W
Operating Temperature
0–60°C
Dimensions
3.5 × 13 × 14.5 cm
Weight
450 g
Insulation
Reinforced
System
PLC (CompactLogix, MicroLogix 1500)
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
The Allen-Bradley 1769-OB32 provides high-density digital output with 32 sourcing channels.
Two isolated groups of 16 outputs improve wiring flexibility and system segmentation.
Fast switching times ensure responsive control in automation systems.
Reinforced insulation enhances safety and reliability in industrial environments.
Compact design supports efficient installation with a six-module power supply distance rating.
