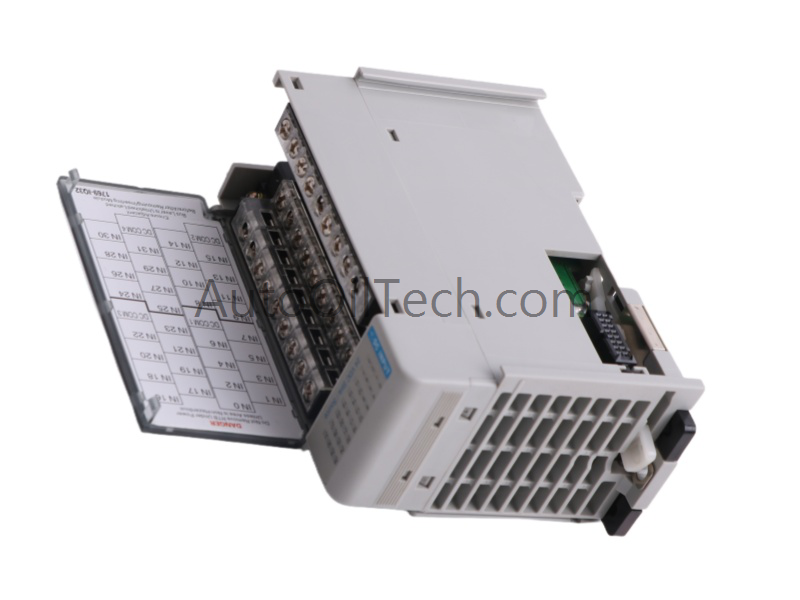

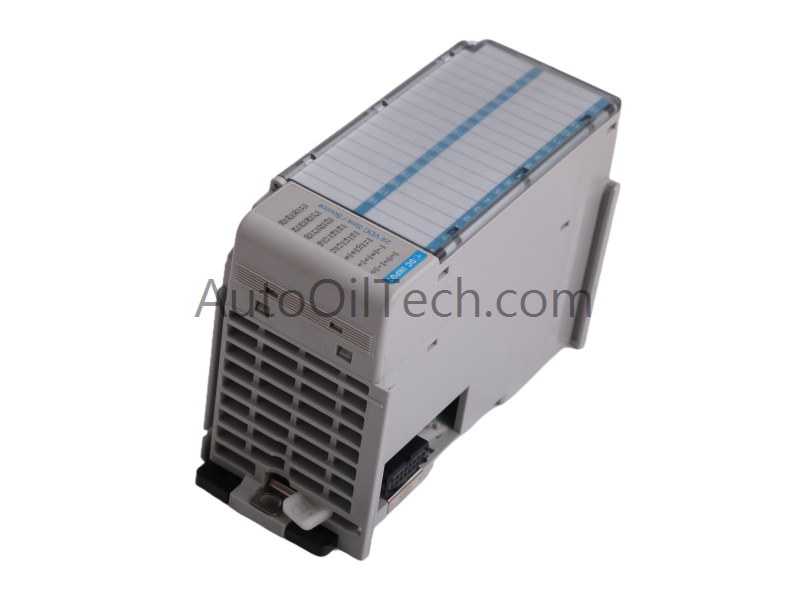

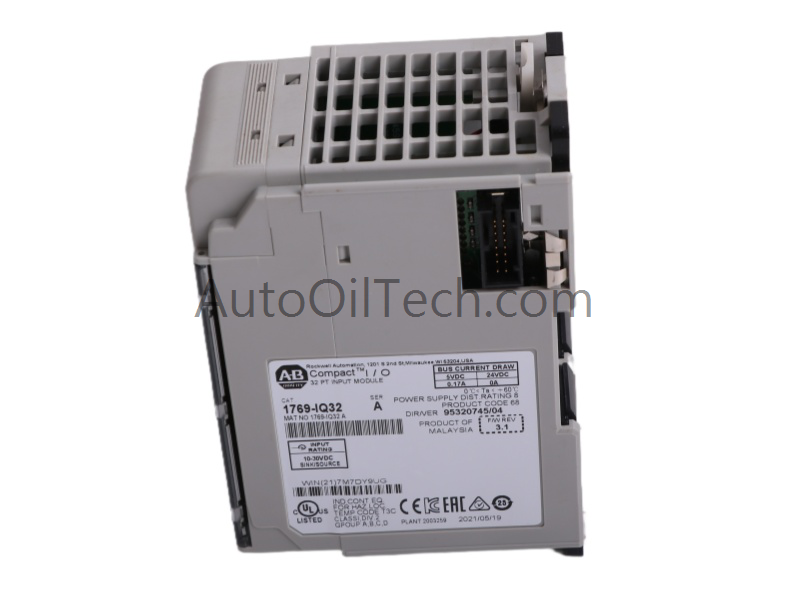

The Allen-Bradley 1769-IQ32 Compact I/O Module is a high-density 32-point DC input solution for CompactLogix and MicroLogix systems. It supports both sinking and sourcing configurations, offering flexible wiring options for industrial automation. Compact and durable, the 1769-IQ32 ensures reliable operation across a wide range of environments.
Technical Specifications
Parameter
Value
Model Number
1769-IQ32
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Compact I/O Module
Input Points
32
Input Voltage
24V DC
Configurations
Sinking and sourcing
Installation Requirement
Within 8 slots of power supply
Operating Temperature
0–60°C
Altitude Rating
Up to 2000 m
Insulation
Reinforced, group-to-group isolation
Mounting Options
DIN rail or panel
Certifications
US, Canada, Europe
Dimensions
3.5 × 13 × 14.5 cm
Weight
440 g
Vibration Resistance
Up to 5 g
Shock Resistance
Up to 30 g
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
The Allen-Bradley 1769-IQ32 provides high-density digital input with 32 channels in a compact form.
Supports both sinking and sourcing configurations for flexible wiring.
Reinforced insulation and isolation enhance safety and reliability.
Certified for use in multiple regions, ensuring global compatibility.
Built to withstand vibration and shock, making it suitable for harsh industrial environments.
