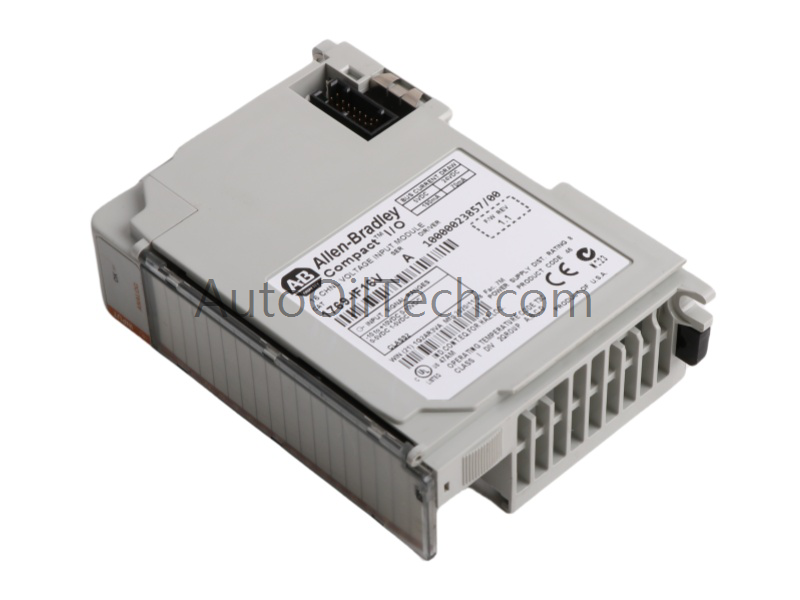

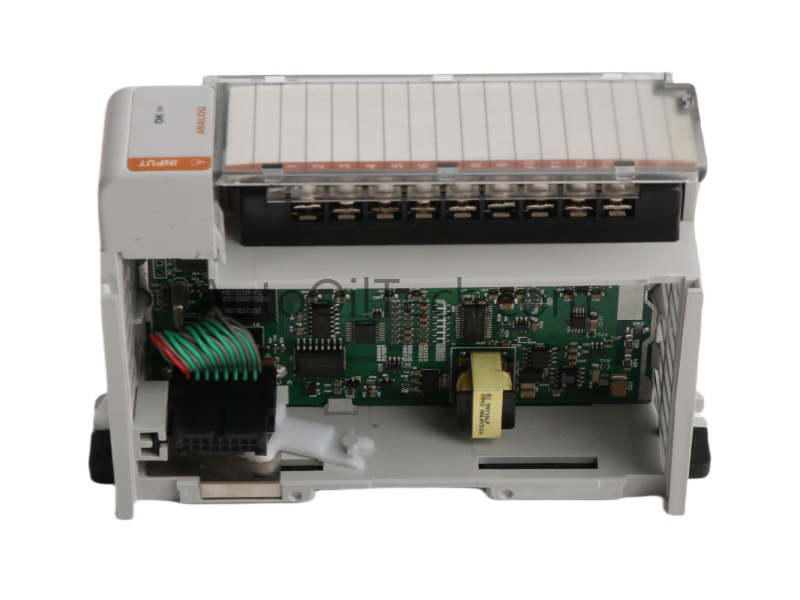

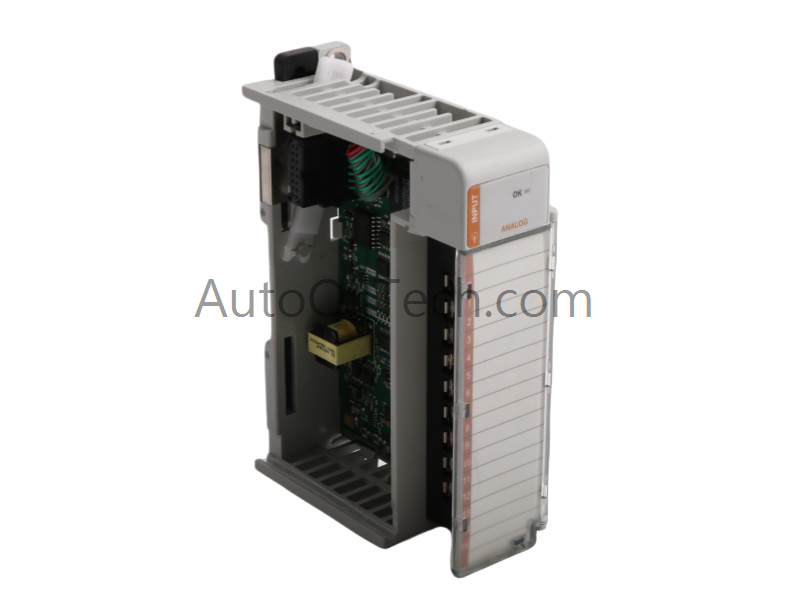

The Allen-Bradley 1769-IF4XOF2 Compact I/O Module is a cost-effective analog combination module designed for MicroLogix 1500 and CompactLogix controllers. It provides 4 configurable inputs (single-ended or differential) and 2 analog outputs, supporting both voltage (0–10V DC) and current (0–20mA) signals. With robust noise immunity and fast response times, the 1769-IF4XOF2 is ideal for basic process monitoring and low-criticality automation tasks.
Technical Specifications
Parameter
Value
Model Number
1769-IF4XOF2
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Analog I/O Module
Inputs
4 (single-ended or differential)
Outputs
2
Signal Ranges
0–10V DC, ±10V DC, 0–20mA, 4–20mA
Resolution
8-bit
Input Accuracy
±0.7% (voltage), ±0.6% (current)
Output Accuracy
±0.5%
Non-Linearity
±0.4%
Step Response
0.3 ms (resistive), 3 ms (capacitive)
Common-Mode Rejection
60 dB
Thermal Drift
±0.006%/°C
Output Load Resistance
Voltage ≥ 1kΩ, Current ≤ 300Ω
Max Current Load
10 mA
Certifications
CE, c-UL
Power Supply Distance
Up to 8 modules per supply
Dimensions
118 × 87 × 35 mm
Weight
0.2 kg
Indicators
LED status
Operating Voltage
30V AC/DC
Operating Temperature
0–60°C
System
PLC (CompactLogix, MicroLogix 1500)
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
Provides 4 analog inputs and 2 analog outputs in a compact module.
Successive approximation ADC converts signals to 8-bit raw data for CPU processing.
