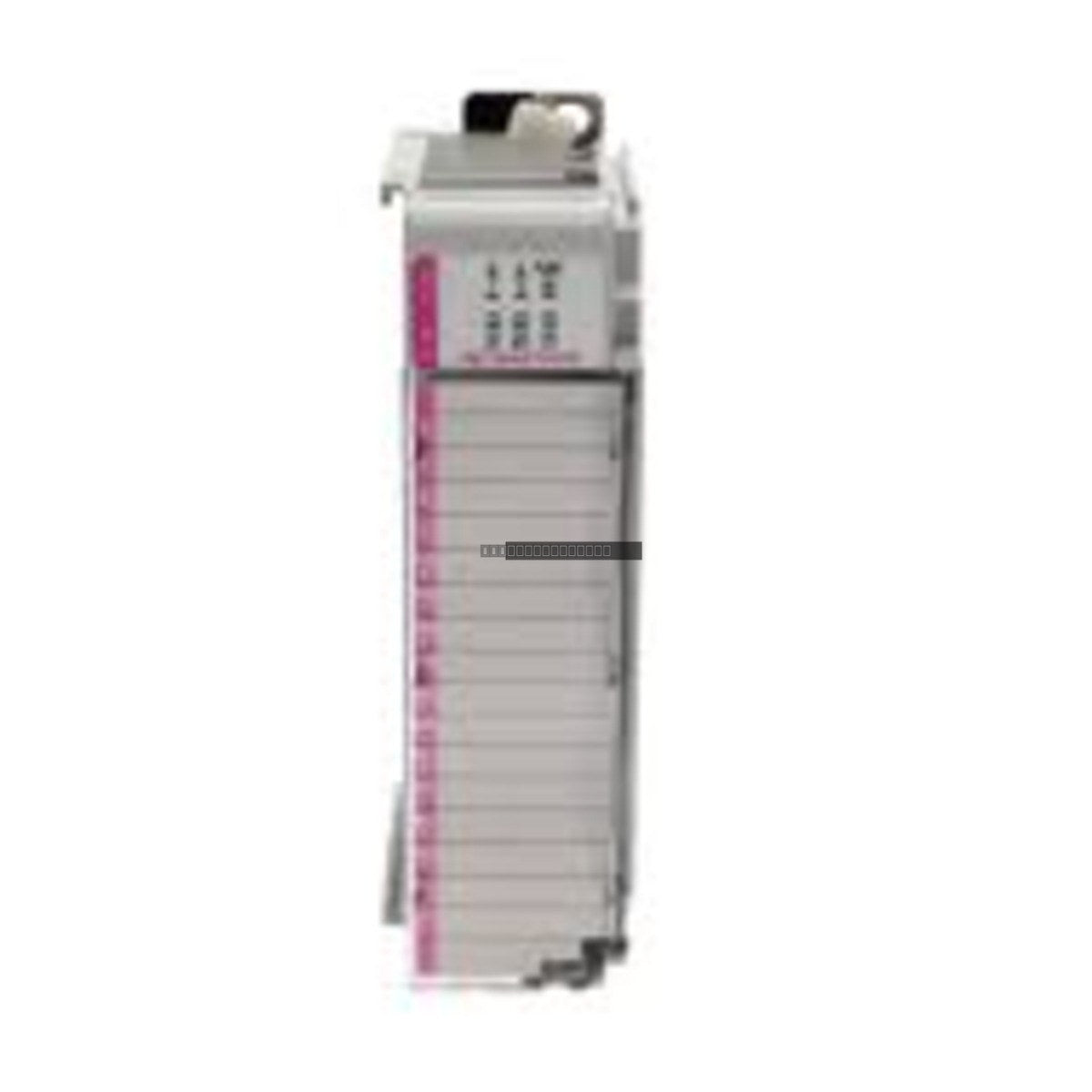

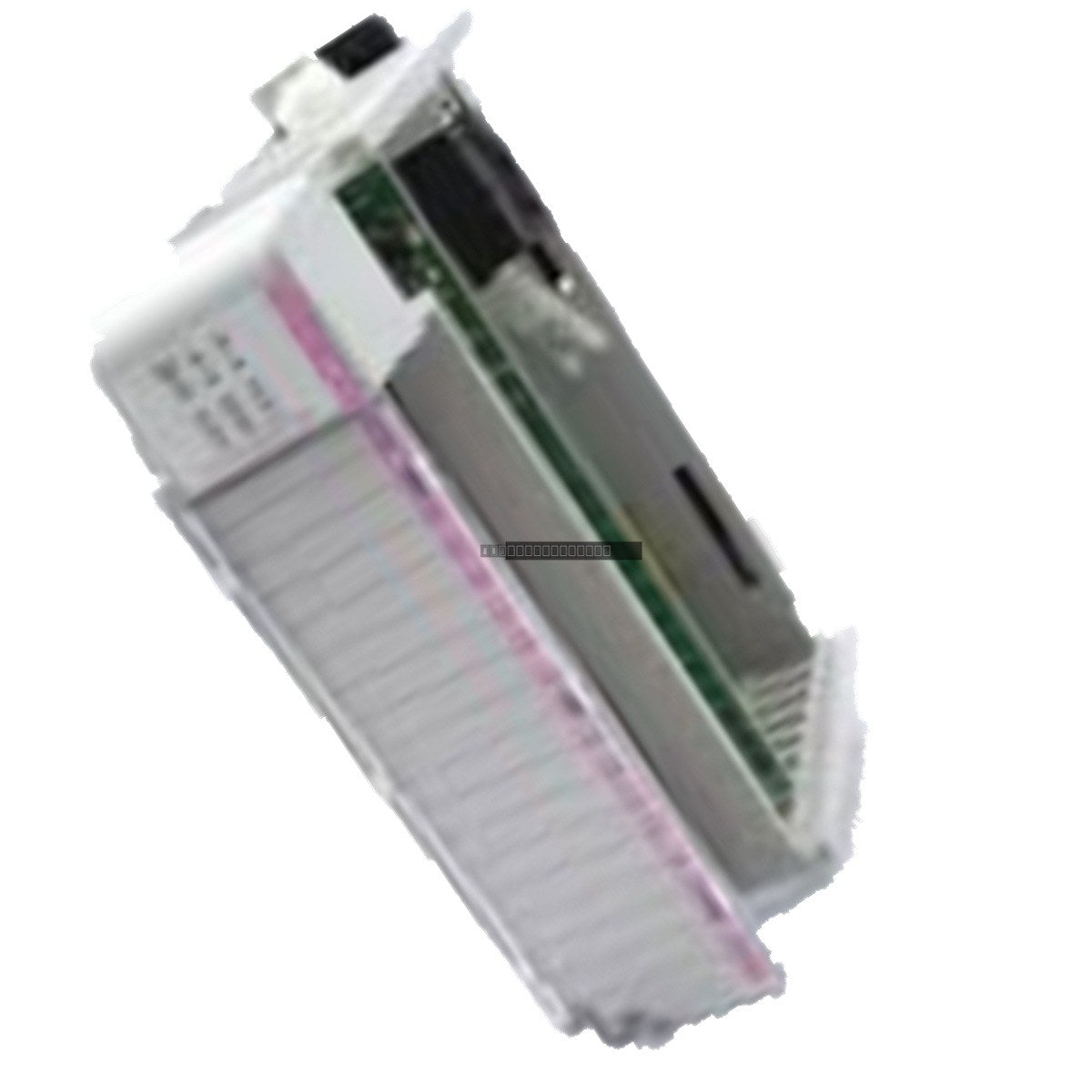

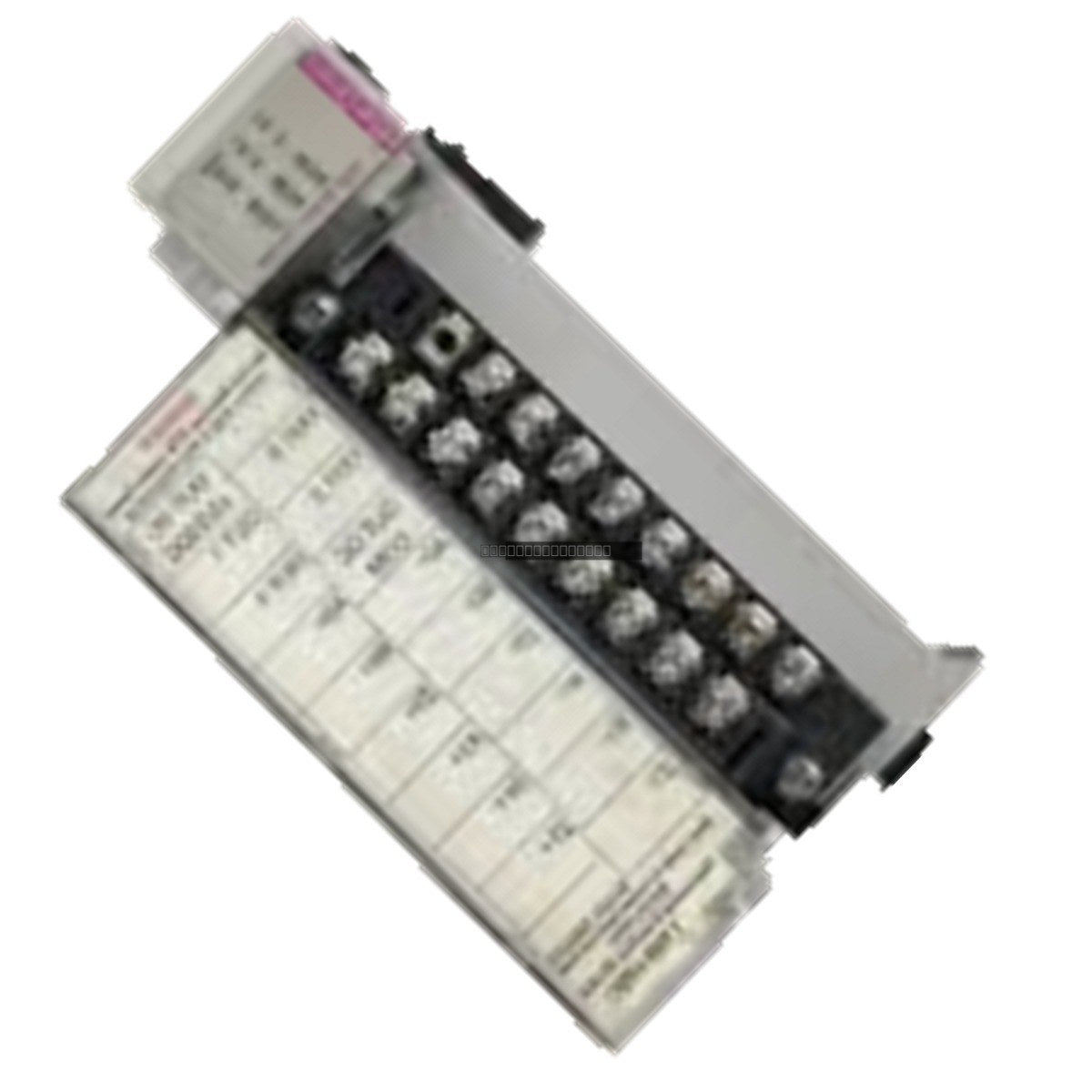

The Allen-Bradley 1769-HSC is a high-speed counter module designed for the CompactLogix platform. This module is engineered to handle demanding motion and counting applications, providing precise feedback for high-speed pulse inputs. It supports two quadrature (A, B, Z) differential inputs capable of operating at frequencies up to 1 MHz, making it suitable for high-resolution encoder interfacing and rapid pulse counting tasks.
Features
Two high-speed differential inputs (A, B, Z) supporting up to 1 MHz frequency.
Wide input voltage range of 2-30 VDC.
Integrated output capability with 4 physical outputs and 12 virtual outputs.
Output rating of 1 A per point at 5-30 VDC.
Designed for seamless integration with the 1769 CompactLogix I/O system.
Applications
This module is commonly utilized in industrial automation environments for tasks such as high-speed position monitoring, flow measurement, motor speed control, and conveyor tracking where rapid pulse counting is required.
Technical Specifications
Product Model
1769-HSC
Module Type
High-Speed Counter
Input Channels
2 Quadrature (A, B, Z) Differential
Max Input Frequency
1 MHz
Input Voltage Range
2-30 VDC
Physical Outputs
4
Virtual Outputs
12
Output Rating
1 A per point @ 5-30 VDC
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the 1769 I/O bus.
The 1769-HSC should be mounted on a DIN rail or panel-mounted according to standard CompactLogix installation procedures.
Use shielded twisted-pair cabling for high-speed input signals to minimize electromagnetic interference (EMI).
Maintain proper grounding practices to ensure signal integrity and protect against electrical noise.
Verify that the module is firmly seated in the I/O rack and that the bus connector is fully engaged.
FAQ
What is the primary function of the 1769-HSC?
The 1769-HSC is a specialized I/O module used to count high-speed pulses from encoders or sensors, allowing the CompactLogix controller to track position or speed at rates that standard digital input modules cannot handle.
Can this module be used with any CompactLogix controller?
The 1769-HSC is designed for the 1769 CompactLogix I/O platform. Please verify your specific controller's compatibility and I/O capacity before installation.
