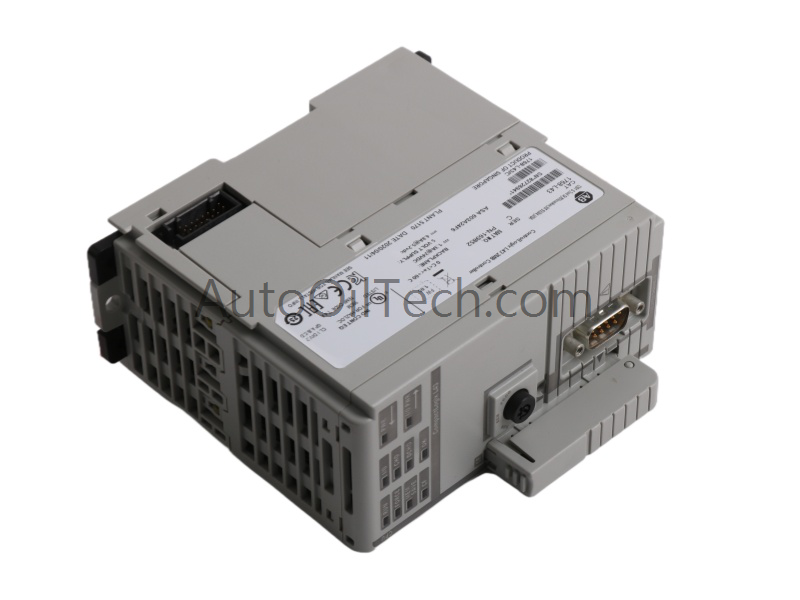

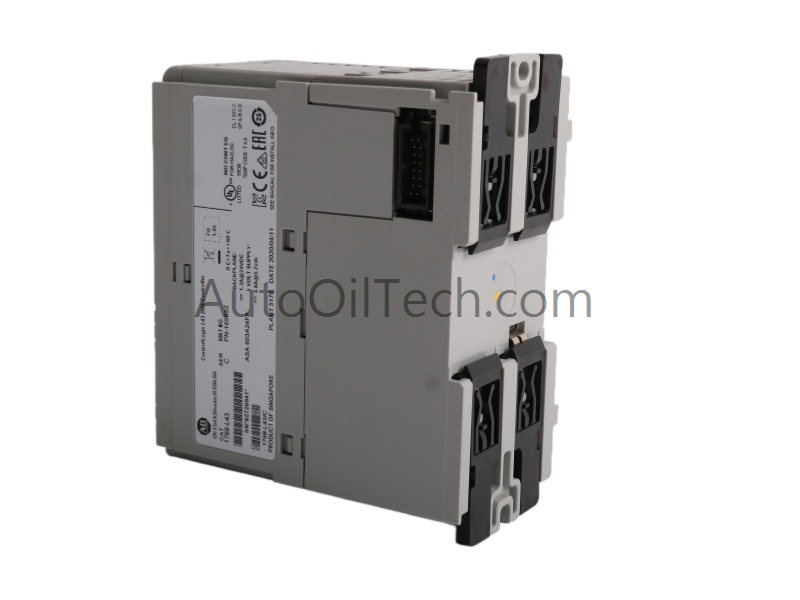

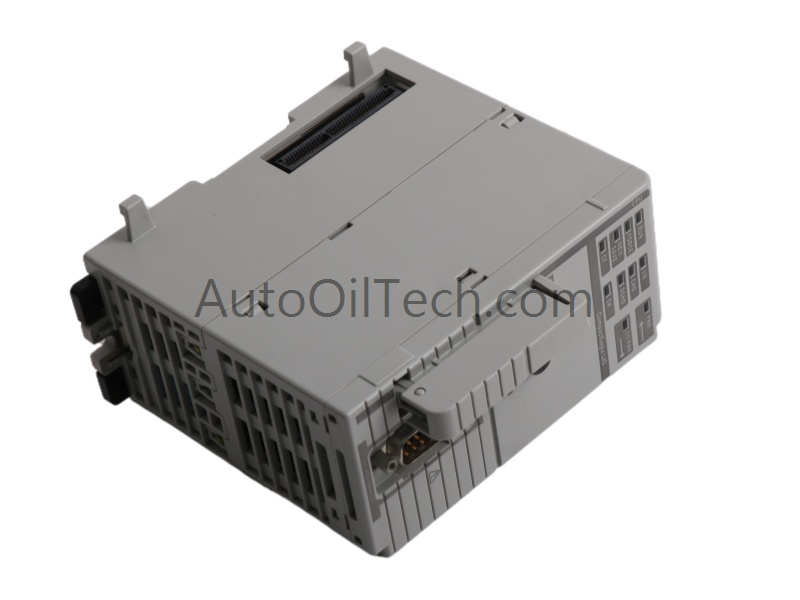

The Allen-Bradley 1768-L43 Processor Module is a CompactLogix controller designed for medium-scale automation. It supports integrated motion control and multiple communication protocols, making it a flexible solution for industrial environments. With a built-in serial port and compatibility with up to sixteen 1769 I/O modules, the 1768-L43 ensures scalable system integration.
Technical Specifications
Parameter
Value
Model Number
1768-L43
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
CompactLogix Processor Module
User Memory
2MB, expandable via CompactFlash
I/O Module Support
Up to 16 × 1769modules
Communication Ports
Serial port, Ethernet router support
Backplane Current
1.3A at 24V
Power Consumption
31.3W
Operating Temperature
0–60°C
Mounting Options
DIN rail or panel
Indicators
Status LEDs, front-panel key switch
Dimensions
3.5 × 13 × 14.5 cm
Weight
0.9 kg
System
PLC
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
The Allen-Bradley 1768-L43 provides integrated motion control for medium-sized automation systems.
Supports multiple programming languages including Ladder Logic and Function Block Diagramming.
CompactFlash option ensures reliable program storage and transfer.
Front-panel key switch allows manual mode selection for operational flexibility.
LED indicators provide clear feedback on system health and status.
