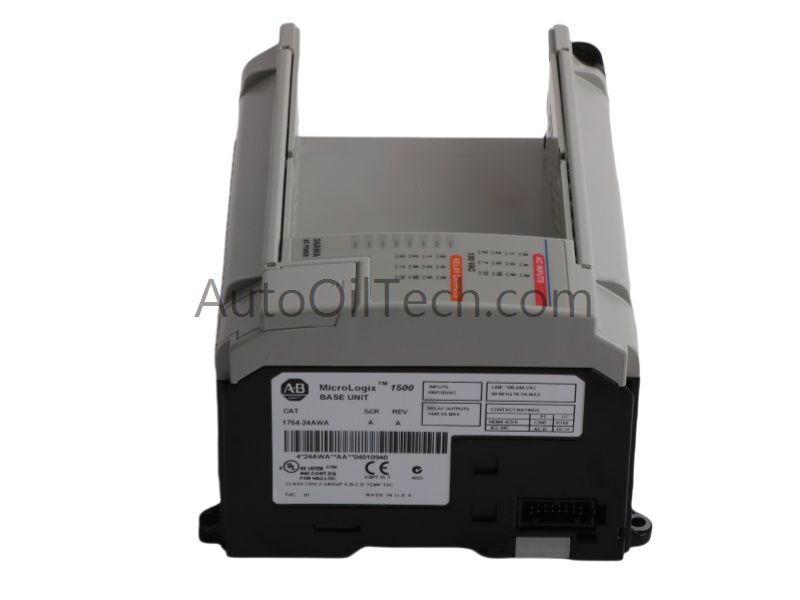

  • Allen-Bradley 1764-24AWA

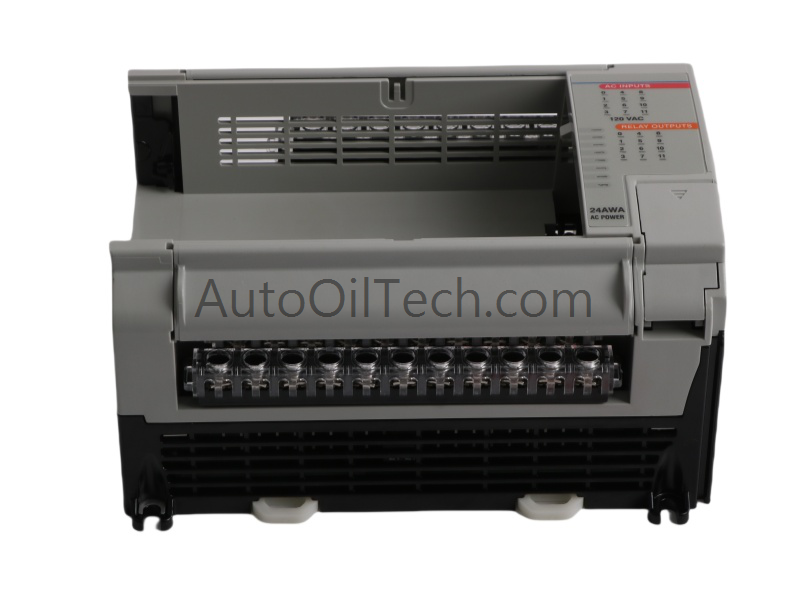

  • Allen-Bradley 1764-24AWA

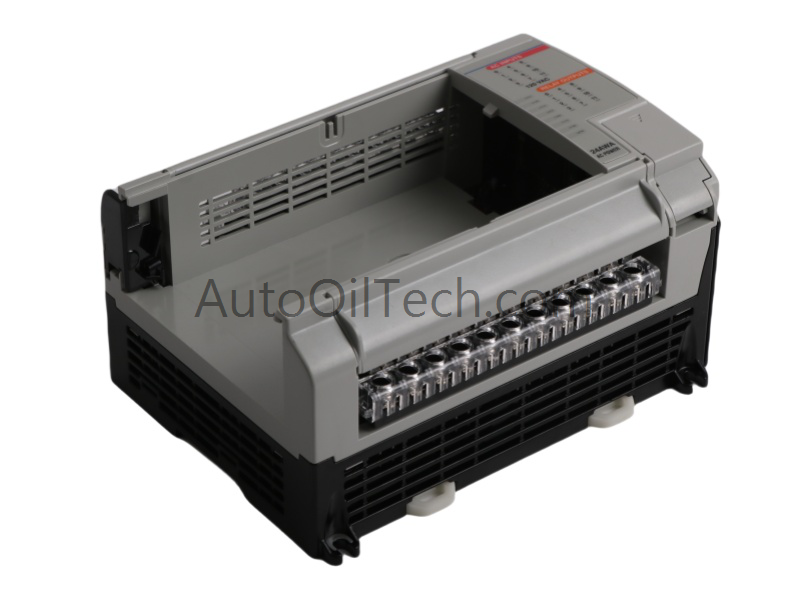

  • Allen-Bradley 1764-24AWA

Sale

Allen Bradley 1764-24AWA MicroLogix 1500 Base Unit

In stock!
  • Part Number: 1764-24AWA
  • Brand: Allen-Bradley
  • Type: MicroLogix 1500 Base Unit
  • Dimensions: 9.3 x7.6x4.8cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Gray
Power Source
  • AC-powered
Communication Protocols
  • Ethernet
  • Modbus
Controller Design
  • Compact
Tags: ControlLogix , MicroLogix 1500 Base Unit

Product Description

Overview

The Allen-Bradley 1764-24AWA MicroLogix 1500 Base Unit is a Bulletin 1764 modular base designed to pair with 1764-LRP/LSP processors, forming the foundation of the MicroLogix 1500 programmable controller system. With 12 embedded 120VAC inputs and 12 relay outputs (including 2 isolated relays), this unit supports up to 512 I/O points through expansion, making it ideal for small-to-medium automation projects.

Technical Specifications

Parameter Details
Model Number 1764-24AWA
Manufacturer Allen-Bradley (Rockwell Automation)
Product Type MicroLogix 1500 Base Unit
Product Range ControlLogix
Condition Brand New
Availability In Stock
Minimum Order Quantity 1
Weight 0.2 kg
Dimensions 9.3 × 7.6 × 4.8 cm
Origin USA
System Compatibility PLC
HS Code 8537101190
Lifecycle Status Active
Embedded Inputs 12 × 120VAC
Embedded Outputs 12 relay outputs (2 isolated)
Expansion Capacity Up to 512 I/O points
Local Expansion 8 × 1769 Compact I/O modules
Remote Expansion 16 modules via remote banks
Power Supply 85–265 VAC, 70 VA consumption
Relay Output Rating 8 A per common, 1440 VA break capacity
Input Response Fixed 20 ms (no adjustable filtering)
Communication Ports RS-232 (DF1 protocol), Channel 0
Network Options DeviceNet/EtherNet/IP via adapters (1761-NET-ENI, 1769-SDN)
Programming Cable 1761-CBL-PM02
User Memory 7K–12K words, backed by 1747-BA battery
Execution Speed 1 ms/K program
Memory Modules Supports 1764-MM1/MM2
RTC Support Real-Time Clock option
Certifications UL, CE, Class I Div 2

Functional Highlights

  • Modular base unit for MicroLogix 1500 controllers.

  • Supports up to 512 I/O points with local and remote expansion.

  • Wide-range power supply ensures compatibility with diverse industrial systems.

  • Relay outputs rated for 8A per common with isolated relays for flexibility.

  • RS-232 communication port for HMI/SCADA connectivity.

  • Compatible with DeviceNet and EtherNet/IP adapters for network integration.

  • Fast program execution speed (1 ms/K).

  • Battery-backed memory with optional memory modules and RTC clock.

  • Compact DIN-rail mount design saves panel space.

  • Certified for industrial safety standards (UL, CE, Class I Div 2).

Application Scenarios

  • Small-to-medium automation projects.

  • Machine control and process systems.

  • Water and wastewater operations.

  • HVAC monitoring and control.

  • Industrial environments requiring flexible I/O expansion.

FAQ

Q: How many I/O points can the 1764-24AWA support? A: Up to 512 I/O points with expansion modules.

Q: What communication options are available? A: RS-232 (DF1 protocol), DeviceNet, and EtherNet/IP via adapters.

Q: Does it support memory modules? A: Yes, it accepts 1764-MM1/MM2 memory modules and RTC clock.
