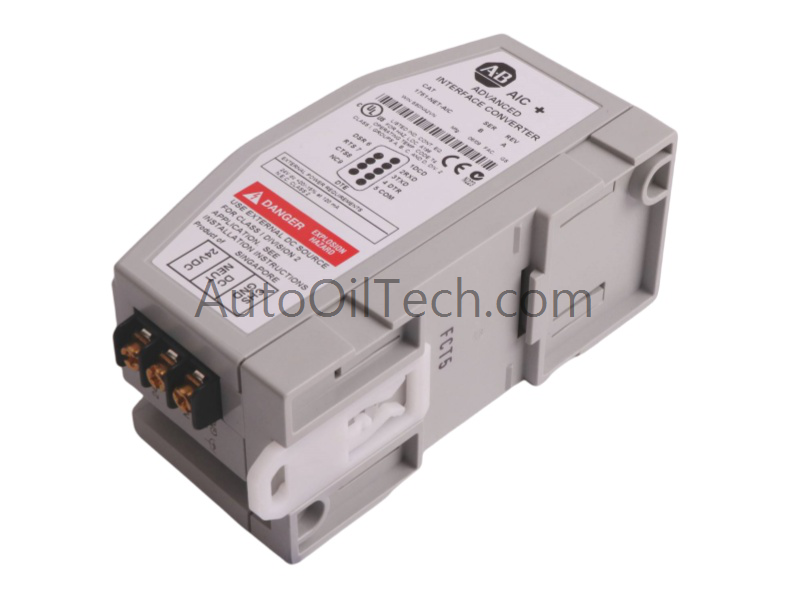

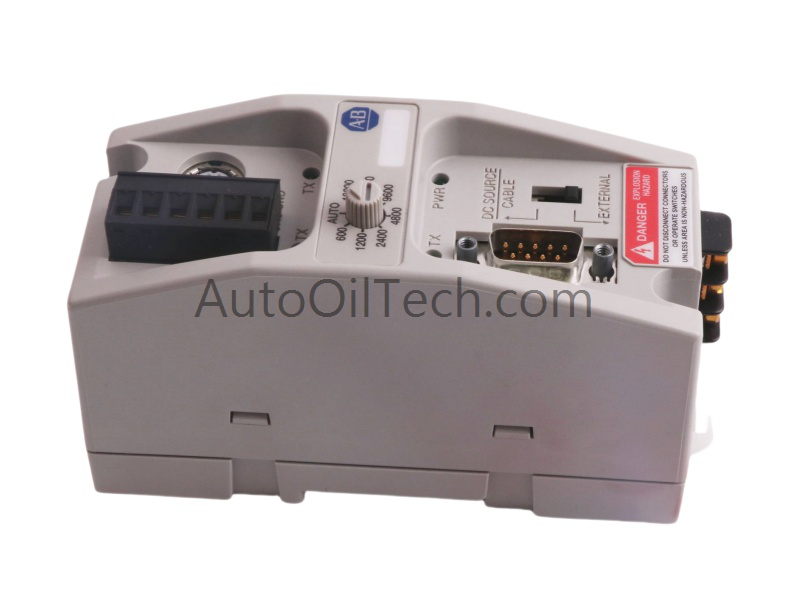

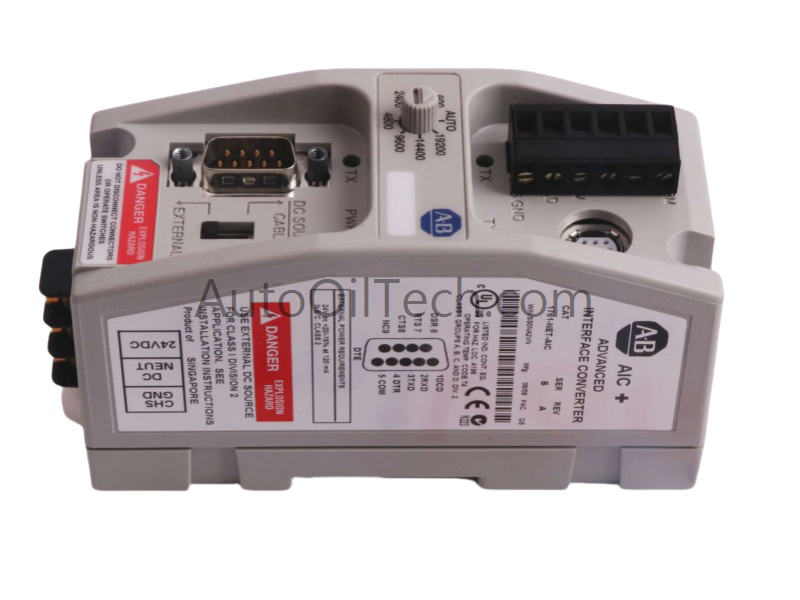

Allen-Bradley 1761-NET-AIC MicroLogix and SLC Communication Adaptor

In stock!

Part Number: 1761-NET-AIC
Brand: Allen-Bradley
Type: MicroLogix and SLC Communication Adaptor
Dimensions: 5x7x12.5cm
Country of Origin: USA
Barcode: 8537101190

Additional Specifications

Color / Pattern	Red Gray
Power Source	DC-powered
Communication Protocols	Ethernet
Controller Design	Compact

Tags: Allen-Bradley , MicroLogix and SLC Communication Adaptor

Product Description

Product Overview

The Allen-Bradley 1761-NET-AIC MicroLogix and SLC Communication Adaptor is an advanced interface converter designed to enable DF1-enabled devices to communicate over a DH-485 network. Supporting MicroLogix 1000, 1200, and 1500 controllers as well as SLC 5/01, 5/02, and 5/03 processors, the 1761-NET-AIC provides reliable protocol conversion and isolation for industrial communication systems.

Technical Specifications

Parameter	Value
Model Number	1761-NET-AIC
Manufacturer	Allen-Bradley (Rockwell Automation)
Module Type	Communication Adaptor
Supported Controllers	MicroLogix 1000/1200/1500, SLC 5/01–5/03
Communication Protocols	DF1 to DH-485
Ports	2 × RS-232 (9-pin SUB-D, 8-pin mini-DIN), 1 × DH-485 Phoenix plug
Functions	Point-to-point isolator, RS-232 to RS-485 isolator, ASCII isolator
Selector Switch	Front-panel, configurable data rate
Power Supply Options	External 24V DC or via communication cable
Mounting Options	DIN rail or panel
Dimensions	5 × 7 × 12.5 cm
Weight	0.2 kg
System	PLC integration
Origin	USA
HS Code	8537101190
Condition	Brand New
Discontinued	June 30, 2016

Functional Highlights

Converts DF1-enabled device communication to DH-485 networks.
Provides reliable isolation between RS-232 and RS-485 signals.
Supports ASCII isolation for flexible device integration.
Front-panel selector switch allows easy configuration of communication data rates.
Flexible power options (external 24V DC or cable-powered).
Compact design with DIN rail or panel mounting for easy installation.
