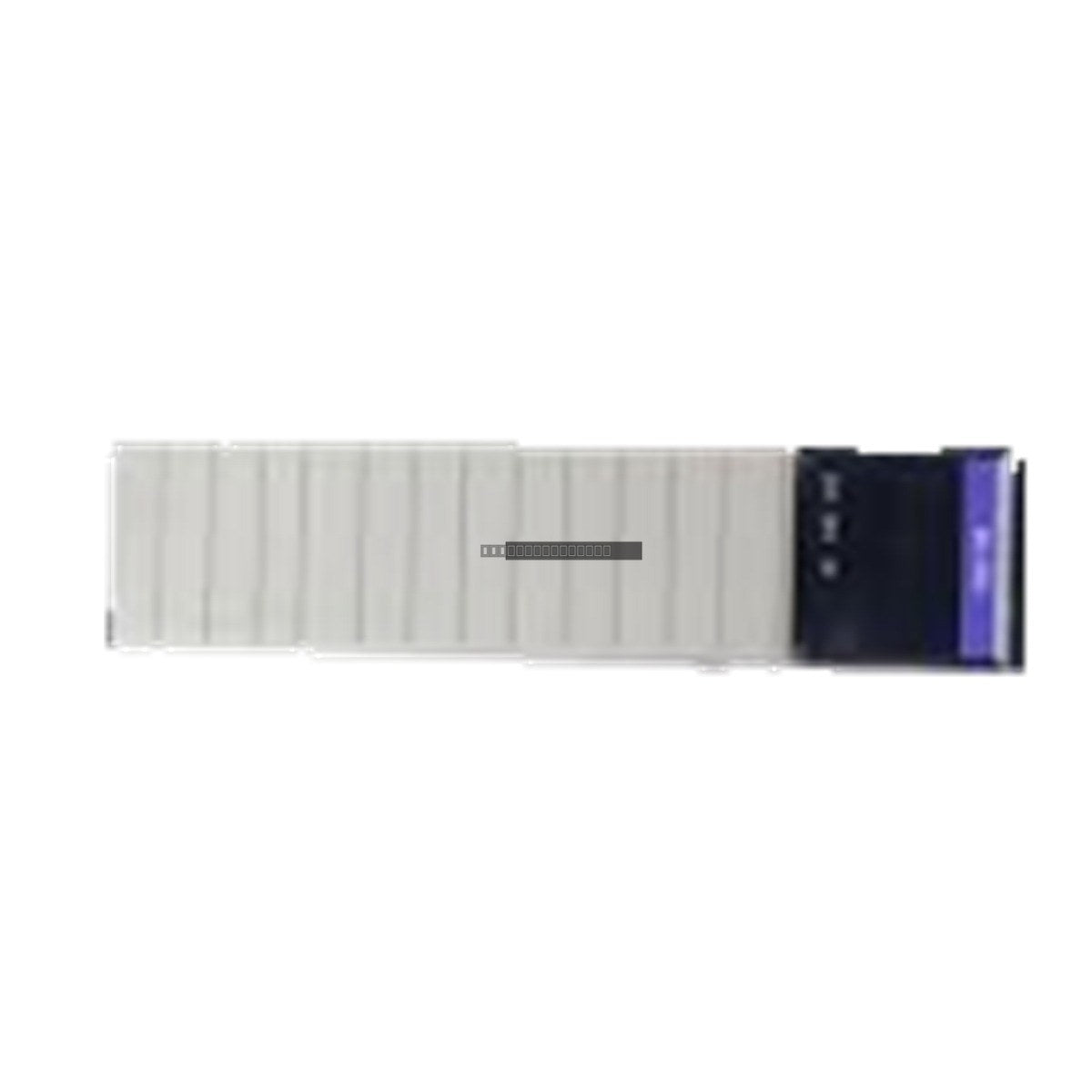

The Allen-Bradley 1756-RIO is a ControlLogix Remote I/O communication module designed to facilitate seamless data exchange between a ControlLogix controller and remote I/O chassis. This module functions as a scanner or adapter, allowing for distributed control architectures by connecting to existing Remote I/O (RIO) networks. It provides a reliable interface for managing remote I/O data, ensuring efficient communication across industrial automation systems.
Features
Single-channel communication interface for RIO network connectivity.
Supports operation as either a scanner or an adapter module.
Designed for integration within the ControlLogix chassis backplane.
Low power dissipation of 2.5 Watts, optimizing thermal management in the control cabinet.
Compact module design for high-density rack mounting.
Technical Specifications
Model
1756-RIO
Module Type
Remote I/O Communication Module
Power Dissipation (Max)
2.5 Watts
Backplane Current (5.1V DC)
450 mA
Backplane Current (24V DC)
5 mA
Wire Size
20 AWG
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-RIO module to prevent electrical damage.
Slide the module into the designated slot in the chassis and secure it using the top and bottom latches to ensure proper backplane connection.
Use appropriate shielded cabling for RIO network connections to minimize EMI interference.
Maintain adequate clearance around the module to allow for proper airflow and cooling within the enclosure.
Ensure all wiring adheres to local electrical codes and the specified 20 AWG wire size requirements.
FAQ
Q: Can the 1756-RIO operate as both a scanner and an adapter? A: Yes, the 1756-RIO module is capable of functioning as either a scanner or an adapter depending on the system configuration requirements.
Q: What is the primary purpose of this module? A: The 1756-RIO is used to bridge ControlLogix systems with legacy Remote I/O networks, allowing for the integration of distributed I/O into a modern control environment.
