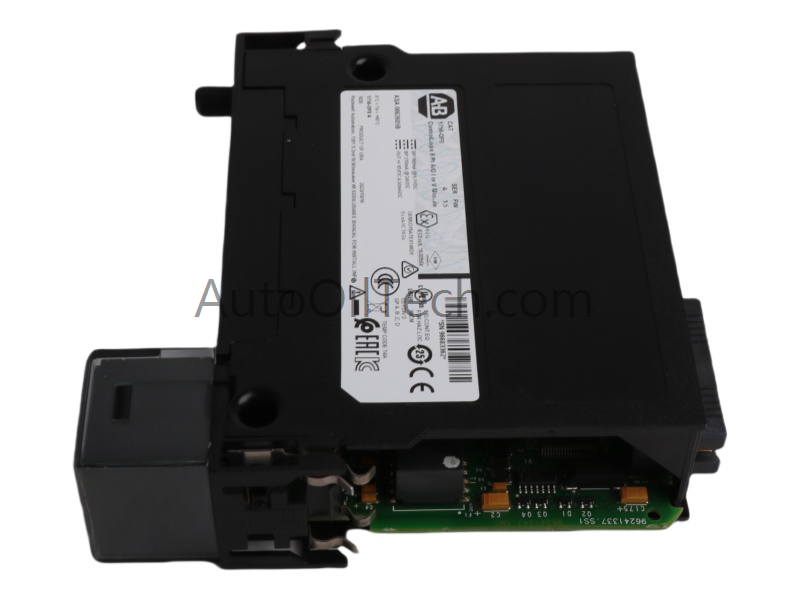

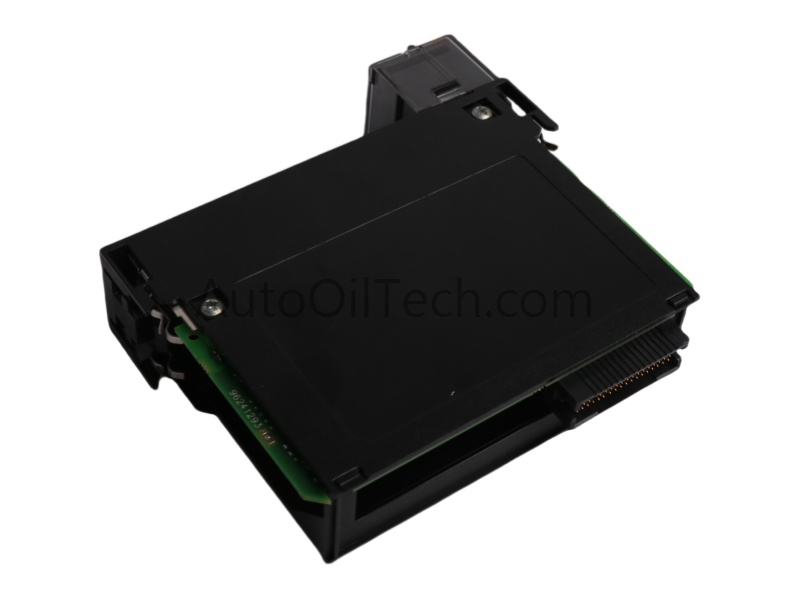

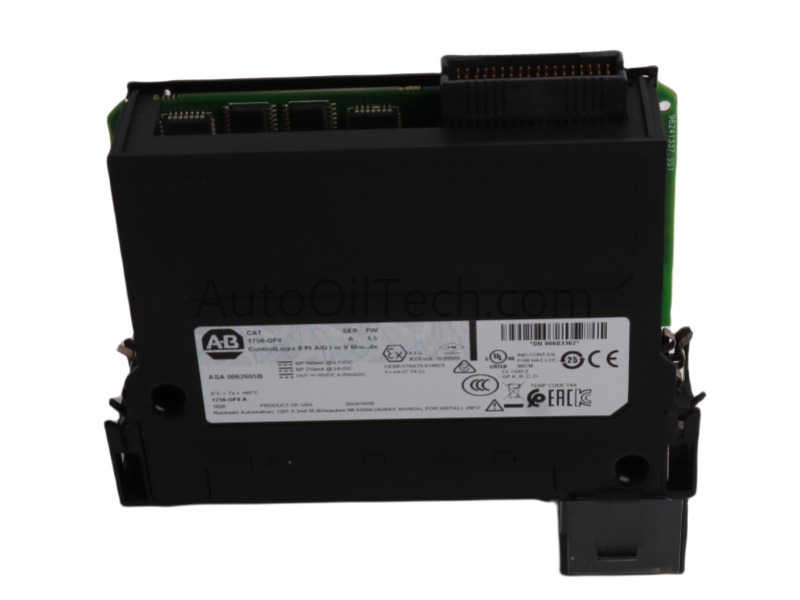

The 1756-OF8 Analog Output Module by Allen-Bradley is a precision 8-channel output unit designed for ControlLogix systems. It supports both current and voltage signal types with high resolution and robust isolation, making it ideal for demanding industrial control applications.
Technical Specifications
Parameter
Value
Manufacturer
Allen-Bradley
Model Number
1756-OF8
Module Type
Analog Output Module
Product Range
ControlLogix Series
Output Channels
8
Signal Types Supported
0–10V, ±10V, 0–20mA, 4–20mA
Resolution
16-bit
Accuracy
±0.1%
Isolation
1500VAC channel-to-bus
Communication
ControlNet®, EtherNet/IP™
Mounting Type
ControlLogix chassis
Diagnostics
Built-in fault monitoring
Dimensions (W×H×D)
23.3 × 18.3 × 5.3 cm
Weight
0.35 kg
HS Code
8537101190
System Compatibility
PLC (ControlLogix)
Product Origin
USA
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
8 analog outputs support both voltage and current signal formats.
16-bit resolution ensures precise control for process applications.
±0.1% accuracy across full range for consistent signal delivery.
1500VAC isolation protects against electrical interference.
Seamless integration with ControlNet® and EtherNet/IP™ networks.
