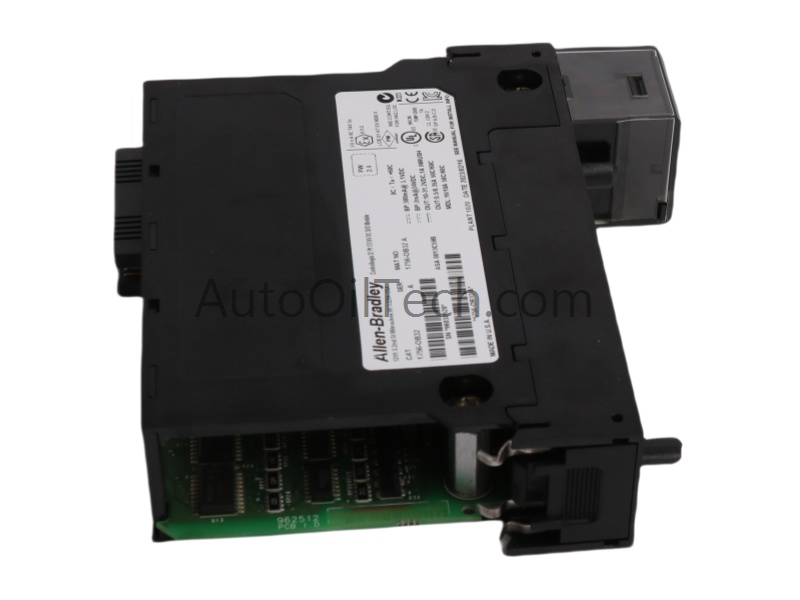

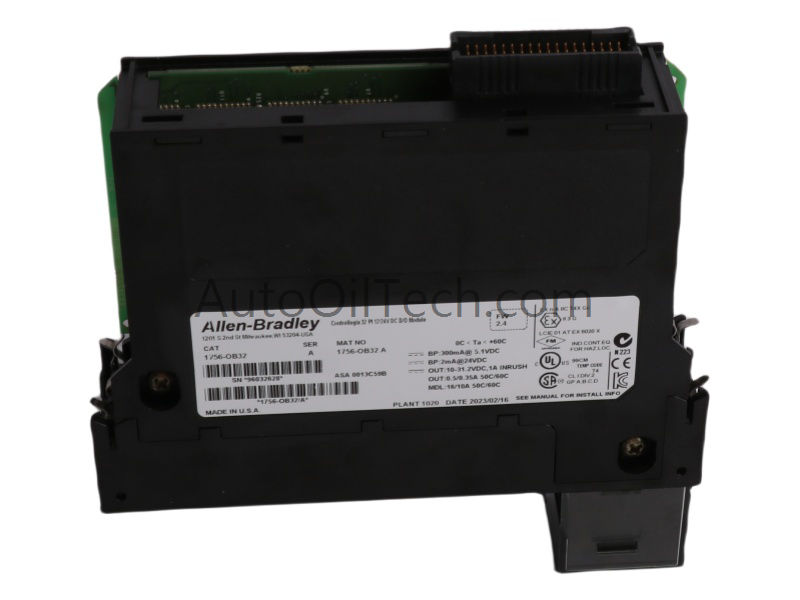

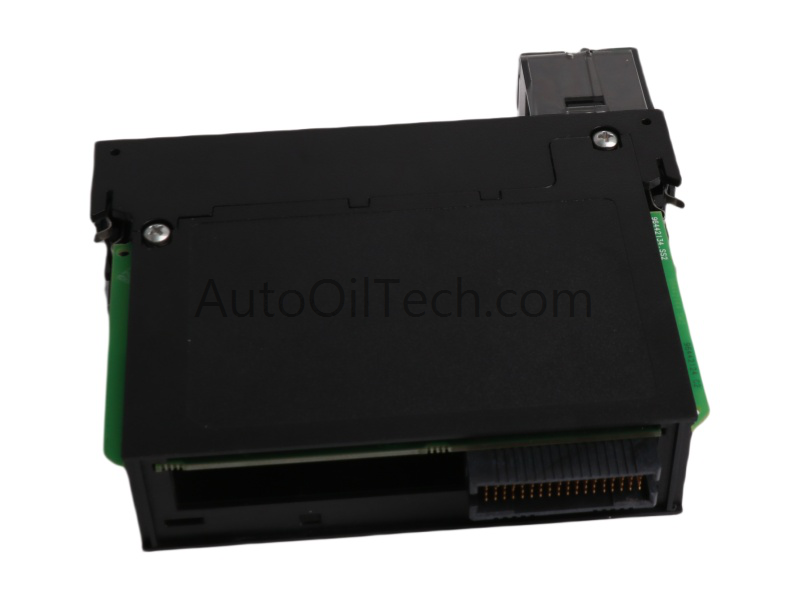

The 1756-OB32 Digital Output Module by Allen-Bradley is a high-density 32-point output unit designed for ControlLogix systems. It supports both sinking and sourcing configurations across a wide DC voltage range, offering reliable switching for industrial actuators, relays, and indicators.
Technical Specifications
Parameter
Value
Manufacturer
Allen-Bradley
Model Number
1756-OB32
Module Type
Digital Output Module
Product Range
ControlLogix Series
Output Channels
32
Output Voltage Range
10–31.2V DC
Output Type
Sinking and sourcing
Channel Protection
Individual short-circuit protection
Diagnostics
Built-in load monitoring
Communication
Producer/Consumer model
Terminal Block Compatibility
1756-TBCH / 1756-TBS6H
Power Dissipation
Max 4.8W @ 60°C
Backplane Current
300mA
Dimensions (W×H×D)
23.3 × 18.2 × 5.3 cm
Weight
0.35 kg
HS Code
8537101190
System Compatibility
PLC (ControlLogix)
Product Origin
USA
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
32-channel output module for high-speed digital control.
Supports both sinking and sourcing configurations for flexible device integration.
Wide voltage tolerance (10–31.2V DC) suits diverse industrial applications.
