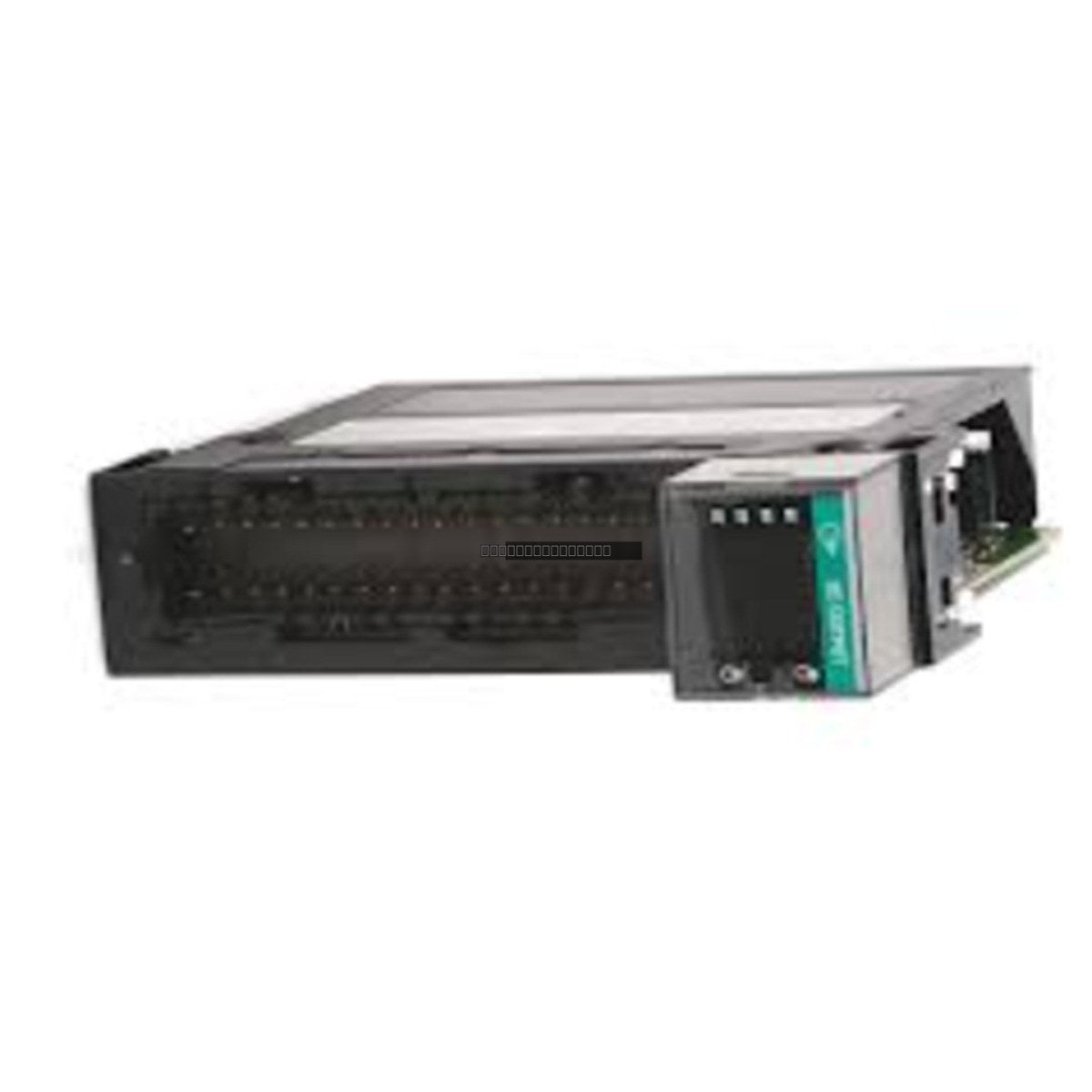

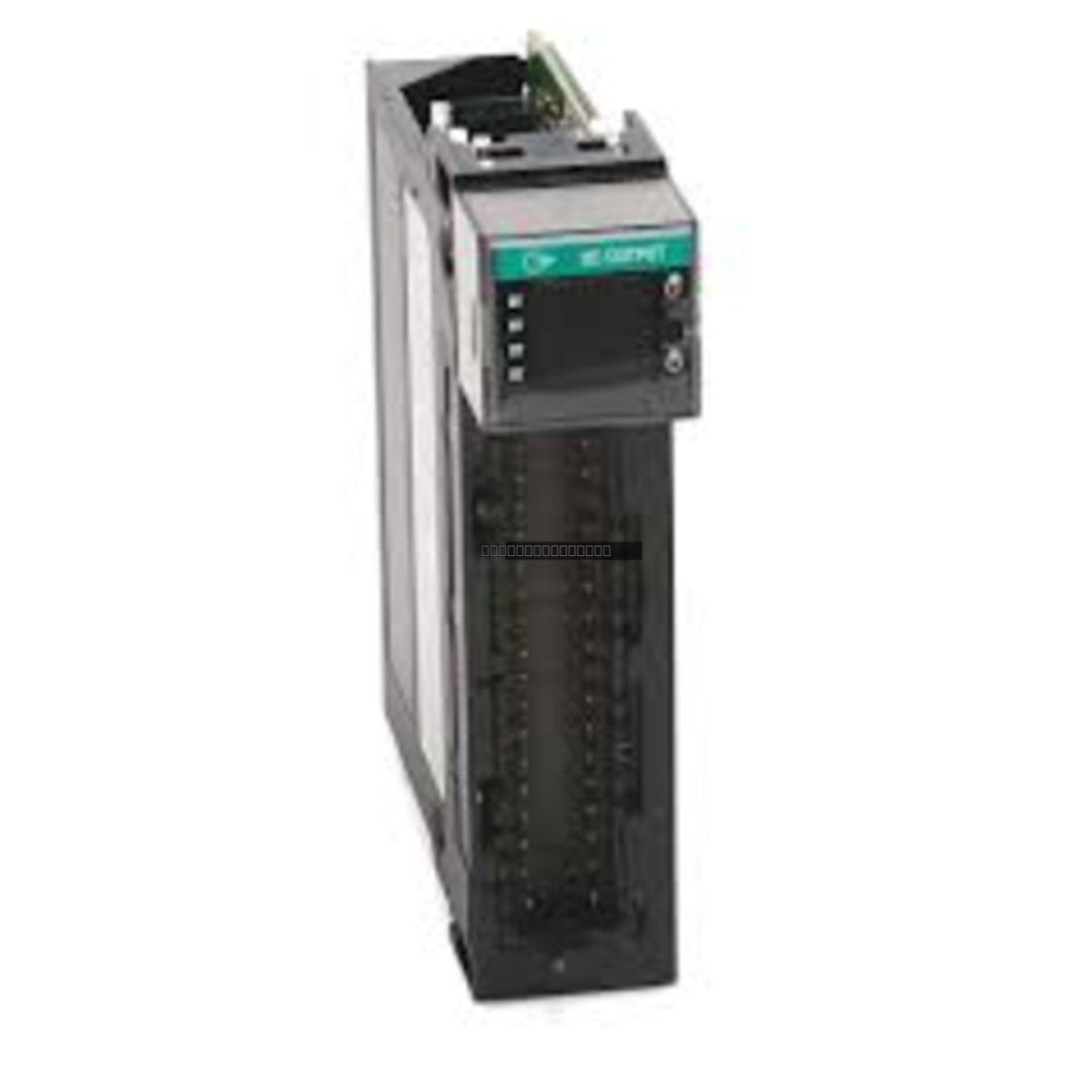

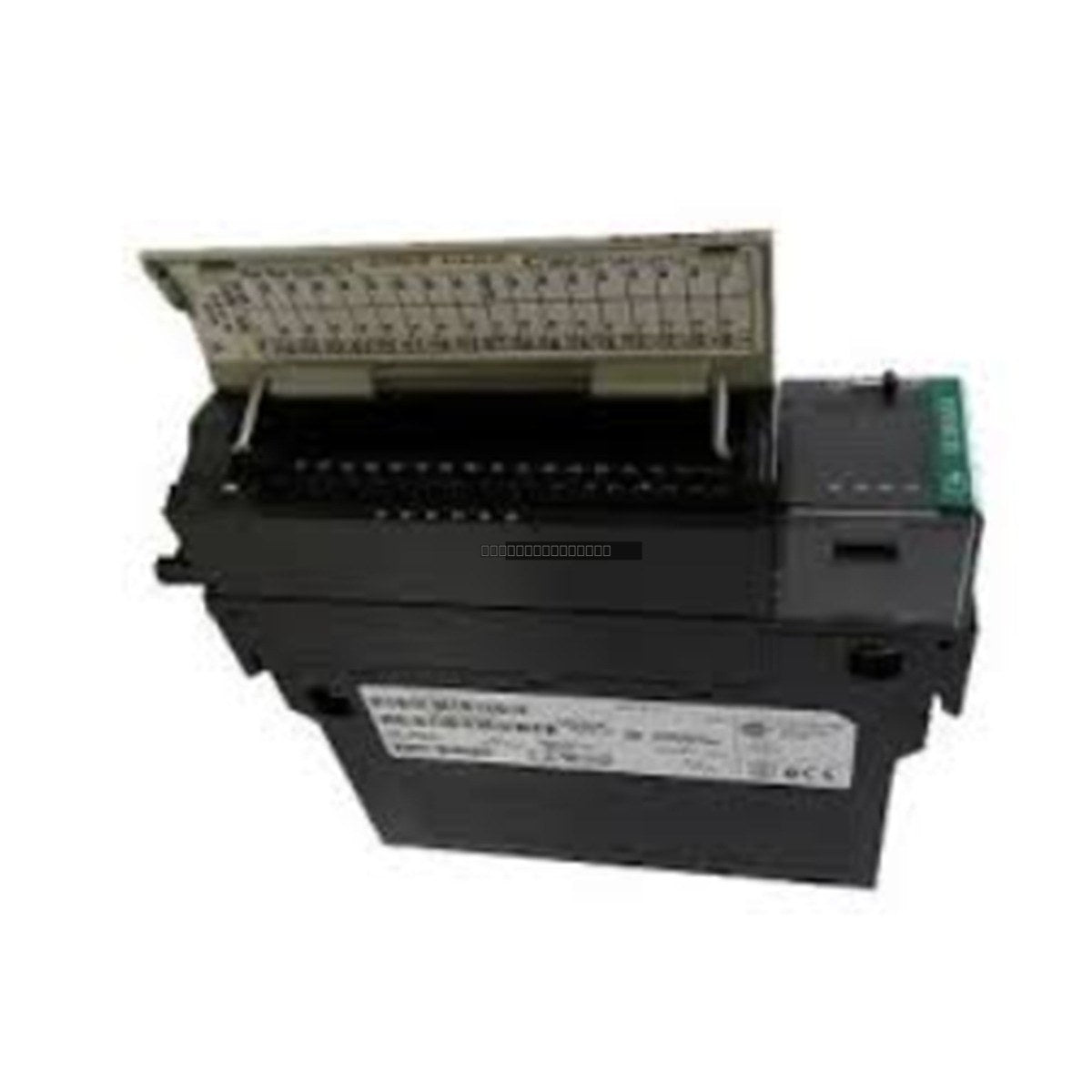

The Allen-Bradley 1756-M02AE is a high-performance 2-axis analog servo module designed for the ControlLogix platform. This module provides precise motion control by interfacing with analog servo drives and accepting quadrature encoder feedback. It is engineered to facilitate complex motion applications within industrial automation environments, ensuring reliable synchronization and control of servo-driven axes.
Features
Dual-axis control capability for synchronized motion operations.
Analog voltage output for seamless integration with compatible servo drives.
Quadrature encoder feedback input for accurate position and velocity monitoring.
Designed for direct installation into the ControlLogix chassis.
Optimized for low thermal dissipation, contributing to efficient cabinet climate management.
Applications
This module is widely utilized in industrial motion control systems, including packaging machinery, material handling equipment, assembly lines, and high-precision CNC applications where analog-controlled servo drives are required.
Technical Specifications
Product Model
1756-M02AE
Module Type
2-Axis Analog Encoder Servo Module
Servo Output Type
Analog Voltage
Operating Voltage
24V DC (Class 2 source)
Backplane Current (5V)
700 mA
Backplane Current (24V)
2.5 mA
Isolation Voltage
50V Continuous
Thermal Dissipation
21.2 BTU/hour
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-M02AE module to prevent electrical damage.
Verify that the module is fully seated in the chassis slot and secured with the top and bottom mounting screws.
Use shielded cabling for encoder feedback and analog output signals to minimize electromagnetic interference (EMI).
Route signal cables away from high-voltage power lines and inductive loads.
Ensure the module is installed in an environment that meets the specified thermal dissipation requirements to maintain optimal operating temperatures.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module.
FAQ
What type of feedback does the 1756-M02AE support?
The module supports quadrature encoder feedback for monitoring axis position and velocity.
Is this module compatible with all ControlLogix chassis?
Yes, the 1756-M02AE is designed for standard ControlLogix I/O chassis mounting.
What is the primary function of the analog output?
The analog output provides the control signal (typically +/- 10V) required to command the speed and direction of an external analog servo drive.
