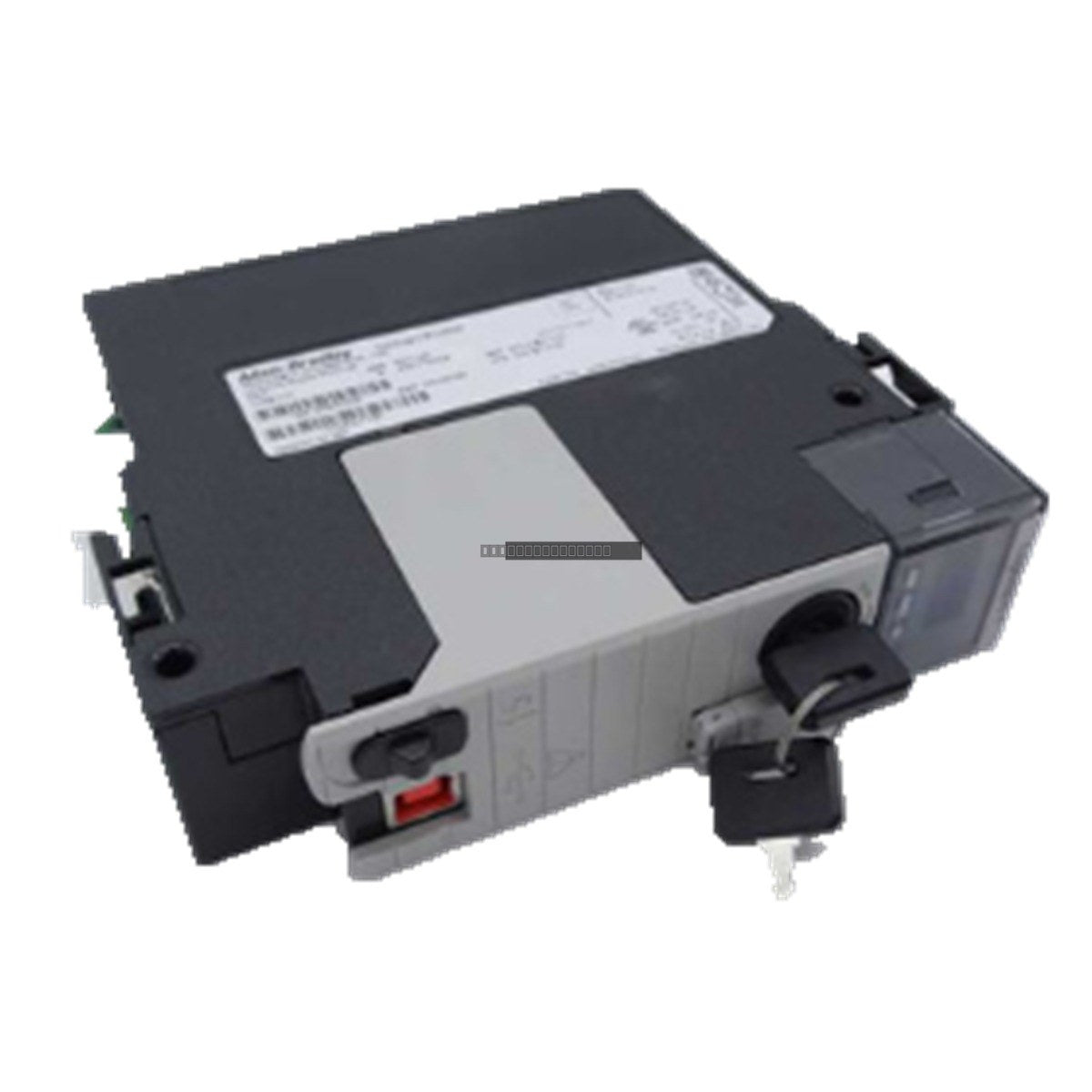

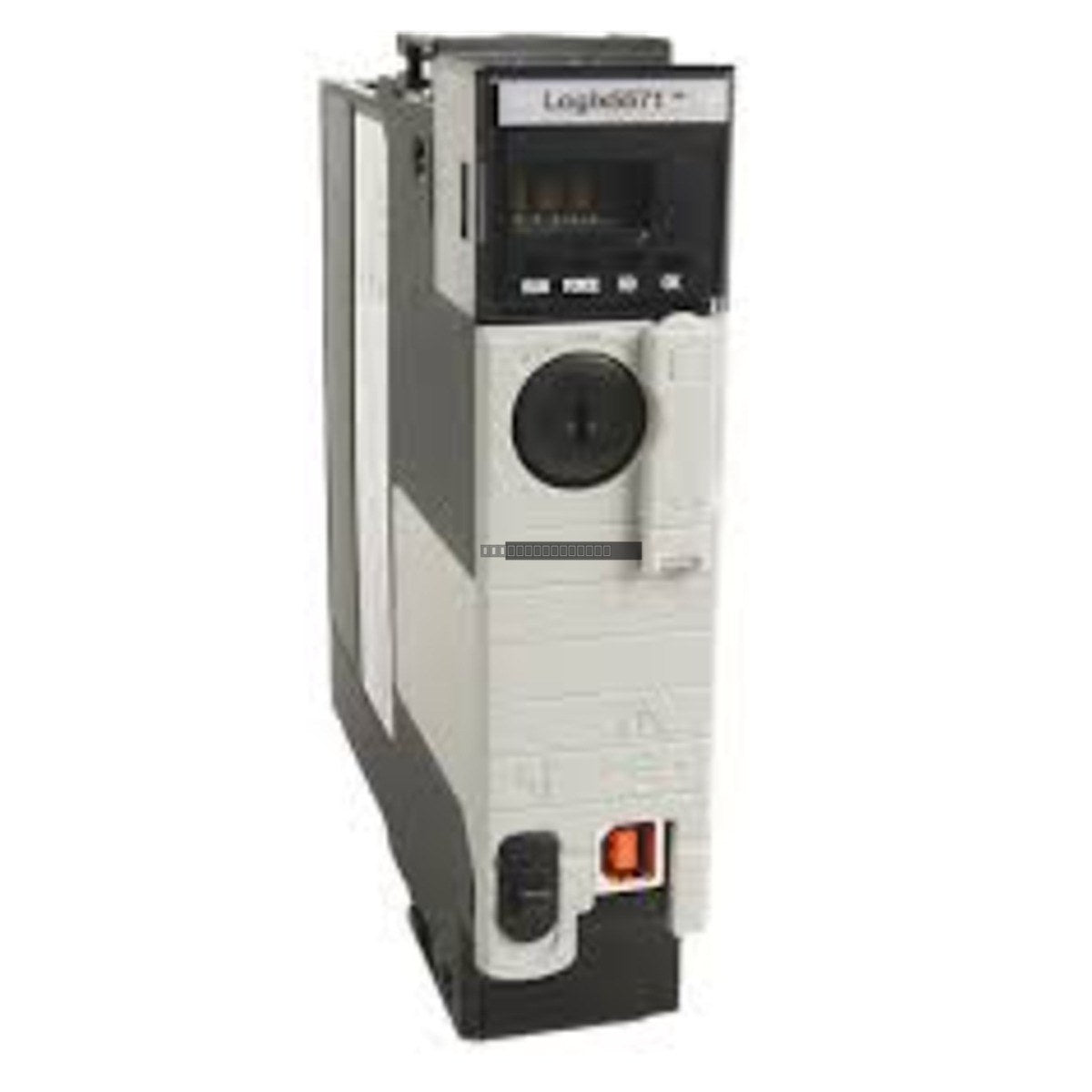

The Allen-Bradley 1756-L71S is a GuardLogix 5571S safety controller designed for high-performance automation and safety-critical applications within the ControlLogix platform. This controller provides integrated safety functionality, allowing users to manage both standard and safety-related control tasks within a single, unified environment. It features 2 MB of user memory and 1 MB of dedicated safety memory to support complex logic execution.
Features
Integrated safety and standard control in a single controller.
Supports high-density I/O configurations for large-scale automation systems.
Designed for use with the ControlLogix chassis-based architecture.
High-speed processing for demanding industrial control loops.
Supports standard communication protocols for seamless integration with plant-wide networks.
Technical Specifications
Product Model
1756-L71S
User Memory
2 MB
Safety Memory
1 MB
I/O Memory
0.98 MB
Current Draw (1.2V DC)
5 mA
Current Draw (5.1V DC)
800 mA
Power Dissipation
2.5 W
Thermal Dissipation
8.5 BTU/hr
Isolation Voltage
30V Continuous
Max Digital I/O
128,000
Max Analog I/O
4,000
Installation Guidelines
Ensure the controller is installed in a compatible ControlLogix chassis.
Power down the chassis before inserting or removing the controller module to prevent electrical damage.
Maintain proper ventilation around the chassis to ensure thermal dissipation remains within specified limits.
Use shielded cables for communication and I/O connections to minimize EMI interference.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
Verify that the module is fully seated and the locking latch is engaged before applying power.
FAQ
What is the primary function of the 1756-L71S?
The 1756-L71S is a GuardLogix safety controller used to execute safety-rated logic in industrial automation systems, ensuring machine and process safety alongside standard control operations.
Is this controller compatible with standard ControlLogix I/O?
Yes, the 1756-L71S is designed to operate within the ControlLogix environment and is compatible with standard ControlLogix I/O modules, provided the system is configured correctly for safety applications.
