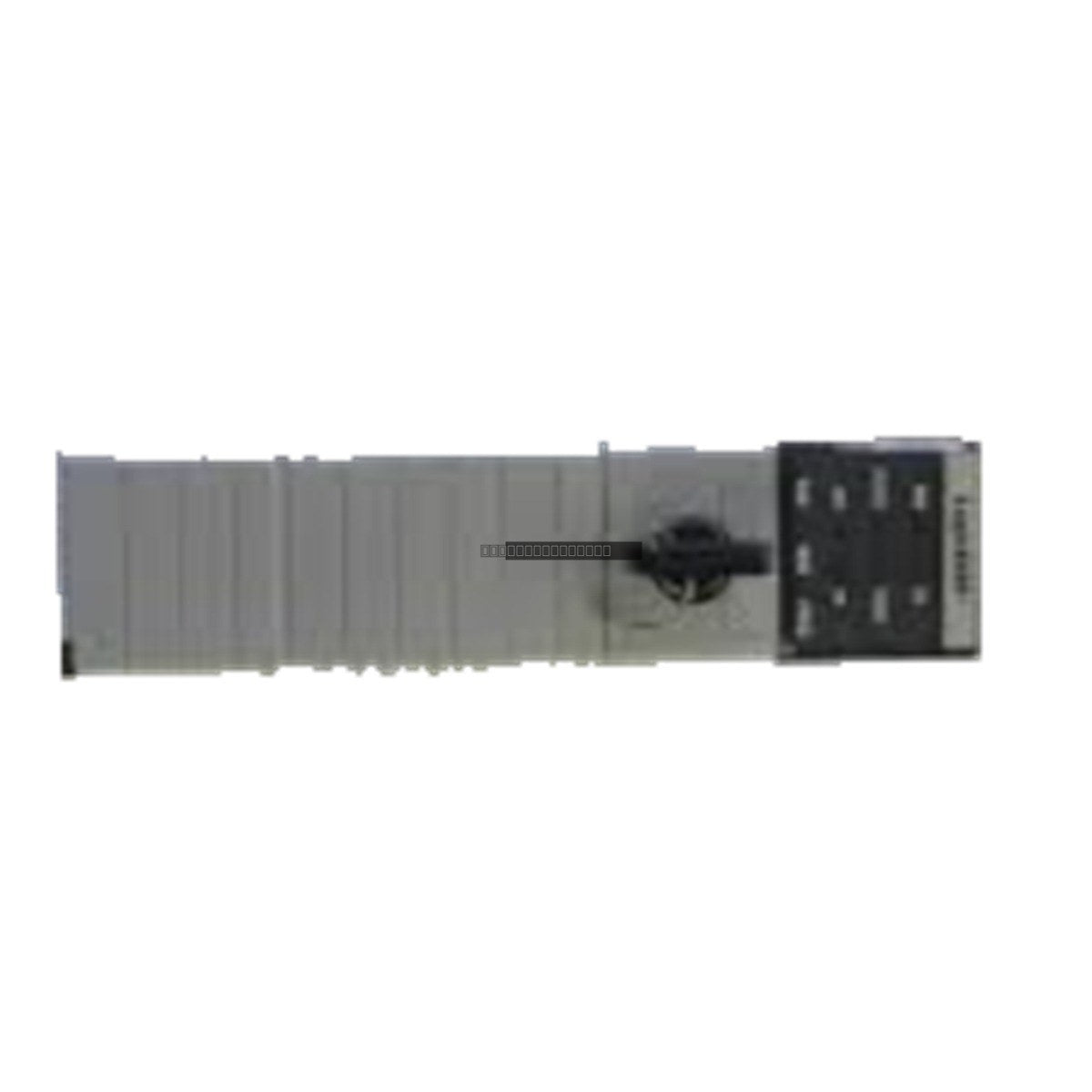

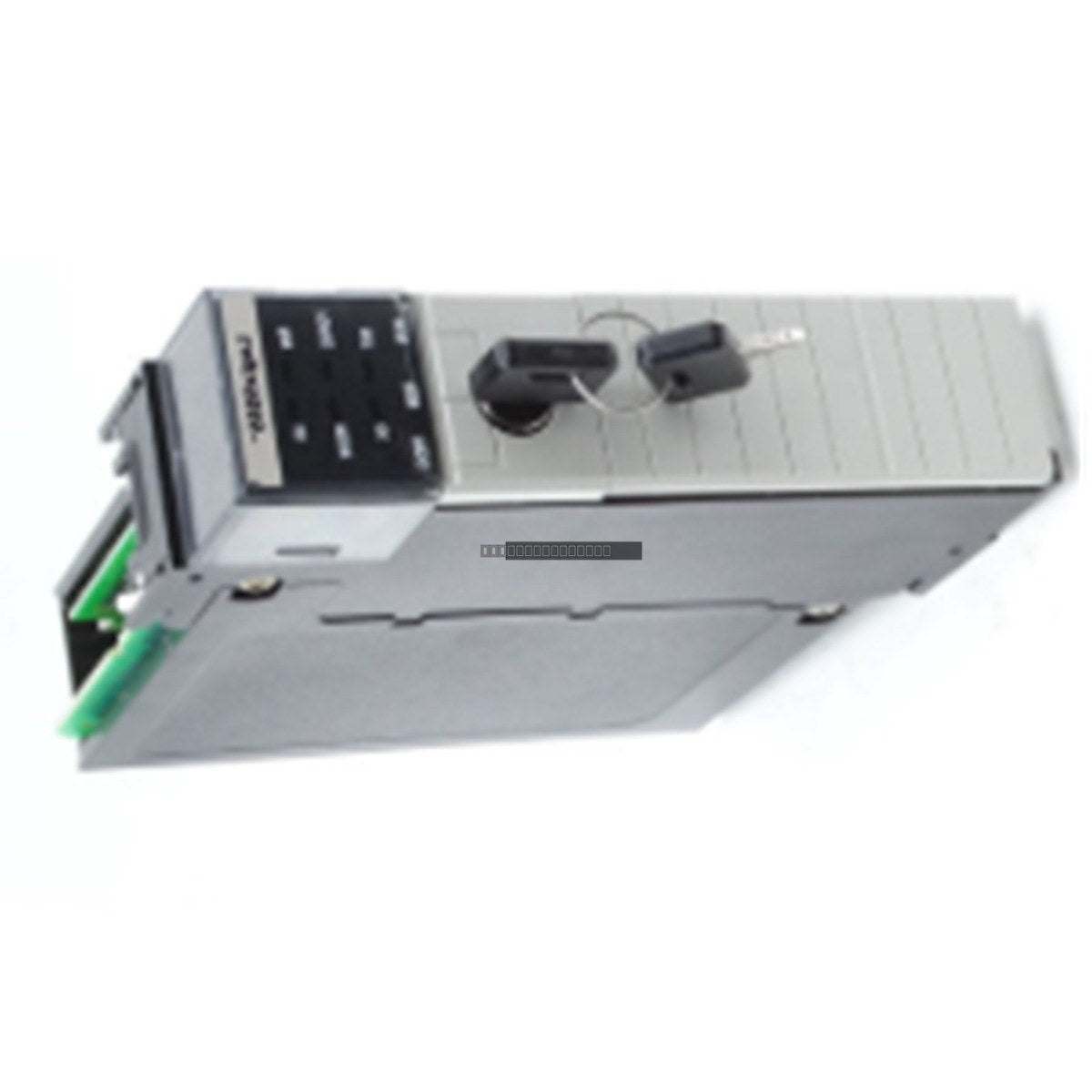

The Allen-Bradley 1756-L63/A is a high-performance ControlLogix Logix5563 controller module designed for demanding industrial automation applications. As part of the ControlLogix platform, this processor provides the computational power and memory capacity required for complex control tasks, including motion control, process control, and high-speed discrete logic execution. The 1756-L63/A features 8 MB of user memory and 478 KB of I/O memory, supporting up to 32 tasks and 100 programs per task to ensure efficient system operation.
Features
High-speed processing for complex automation control.
8 MB user memory for large-scale application logic.
Supports 32 concurrent tasks with 100 programs per task.
Integrated RS-232 serial port for communication and programming.
Supports optional nonvolatile memory storage up to 128 MB.
High I/O capacity: supports up to 128,000 digital I/O and 4,000 analog I/O points.
Technical Specifications
Model
1756-L63/A
Series
A
User Memory
8 MB
I/O Memory
478 KB
Optional Nonvolatile Storage
128 MB
Digital I/O (Max)
128,000
Analog I/O (Max)
4,000
Current Draw @ 5.1V DC
1200 mA
Current Draw @ 24V DC
14 mA
Power Dissipation
3.5 W
Thermal Dissipation
11.9 BTU/hr
Installation Guidelines
Ensure the ControlLogix chassis is properly grounded before installing the module.
The 1756-L63/A is designed to be inserted into any slot of a ControlLogix chassis.
Always power down the chassis before inserting or removing the processor module to prevent electrical damage.
Ensure proper ventilation around the chassis to maintain operating temperatures within specified limits.
Use shielded communication cables for the RS-232 port to minimize EMI interference in industrial environments.
Handle the module using ESD-safe practices to prevent damage to internal components.
FAQ
What is the primary function of the 1756-L63/A?
The 1756-L63/A is a central processing unit (CPU) for the ControlLogix system, responsible for executing user-defined control programs, managing I/O data, and coordinating communication across the backplane.
Can this module be used in any ControlLogix chassis?
Yes, the 1756-L63/A is compatible with standard ControlLogix chassis (1756-A series). It can be placed in any slot, though it is typically placed in the first slot for primary control.
Does this module require a battery?
Yes, like other Logix5563 controllers, it utilizes a battery for memory retention. Ensure the battery is installed and replaced periodically according to the maintenance schedule to prevent loss of user programs during power cycles.
