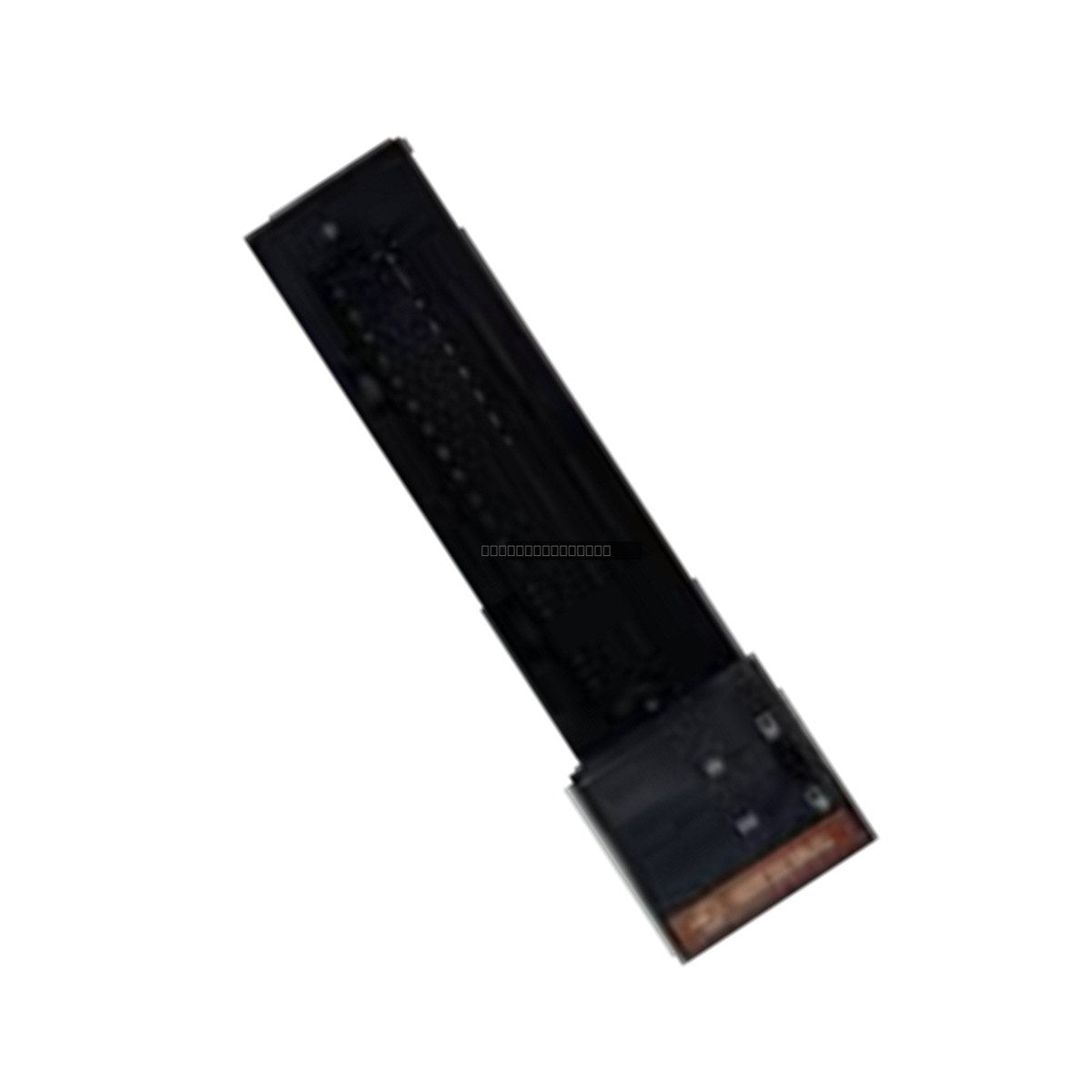

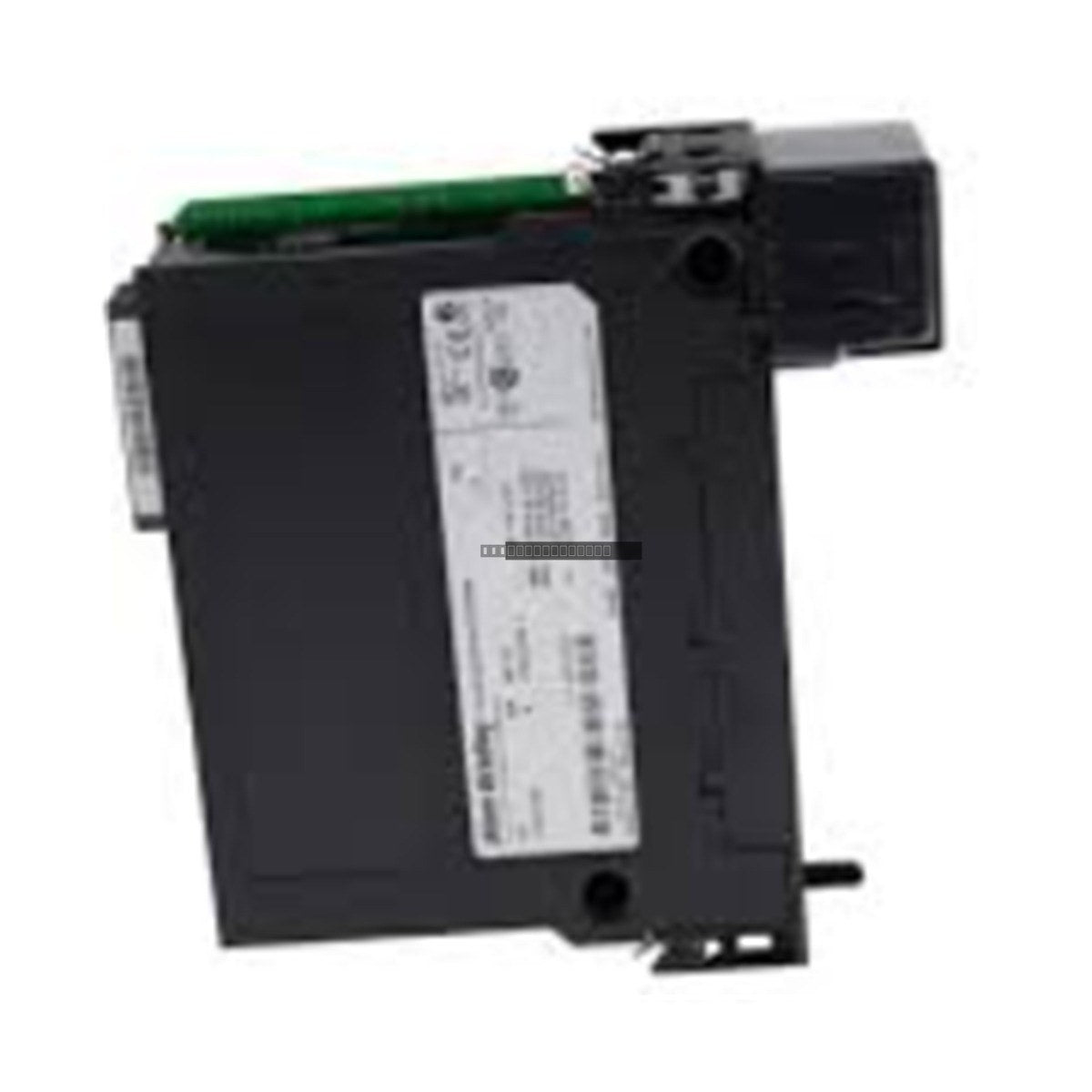

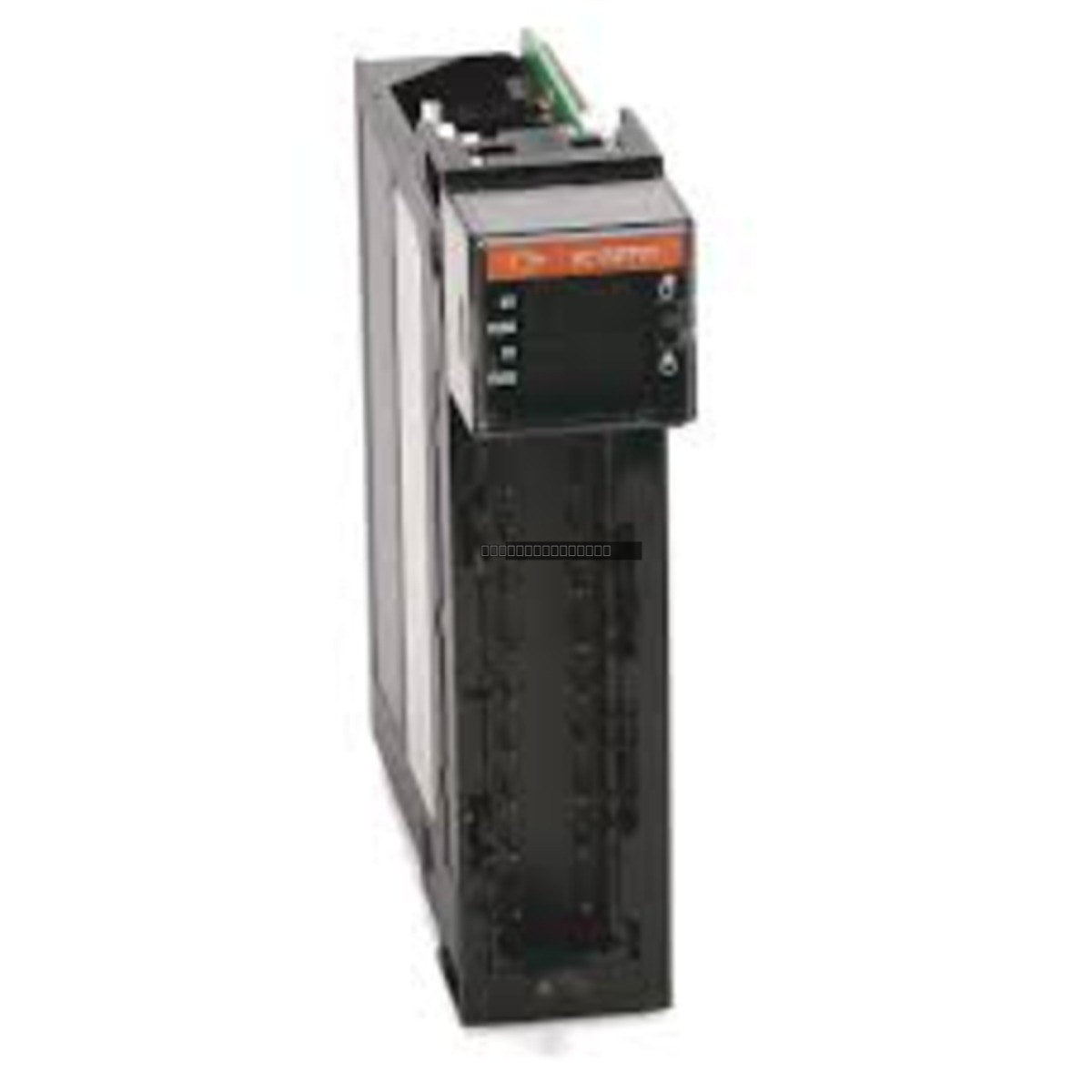

The Allen-Bradley 1756-IF8H is a high-performance analog input module designed for the ControlLogix platform. This module features 8 differential input channels and provides integrated support for the HART (Highway Addressable Remote Transducer) protocol, facilitating precise communication with smart field instruments for advanced process control and diagnostic monitoring.
Features
Integrated HART communication support for bi-directional data exchange with field devices.
8 differential analog input channels for high-accuracy signal acquisition.
Configurable for both current and voltage input signal ranges.
Designed for seamless integration into standard ControlLogix chassis architectures.
Robust diagnostic capabilities including open circuit detection.
Applications
This module is engineered for demanding industrial environments requiring HART-enabled instrumentation, such as chemical processing, oil and gas, power generation, and water treatment facilities. It is ideal for monitoring process variables like pressure, temperature, flow, and level while simultaneously accessing secondary device diagnostics.
Technical Specifications
Model
1756-IF8H
Module Type
Analog Differential Input with HART
Channels
8 Differential
Current Draw (5.1 VDC)
300 mA
Current Draw (24 VDC)
135 mA
Thermal Dissipation
13.7 BTU/hr
Open Circuit Detection
Positive full-scale reading within 5 seconds
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
Use appropriate shielded cabling for analog signals to minimize electromagnetic interference (EMI) and noise.
Verify that the module is properly seated in the chassis slot and the locking mechanism is engaged.
Follow standard ESD (Electrostatic Discharge) mitigation practices during handling.
Ensure adequate ventilation around the chassis to maintain operating temperatures within the specified range.
FAQ
Does the 1756-IF8H support both voltage and current inputs? Yes, the module is designed to handle both current and voltage input signals, providing flexibility for various field instrumentation requirements.
What is the primary function of the HART capability on this module? The HART protocol allows the module to communicate with smart field devices to retrieve diagnostic data and configuration information alongside the primary process variable.
