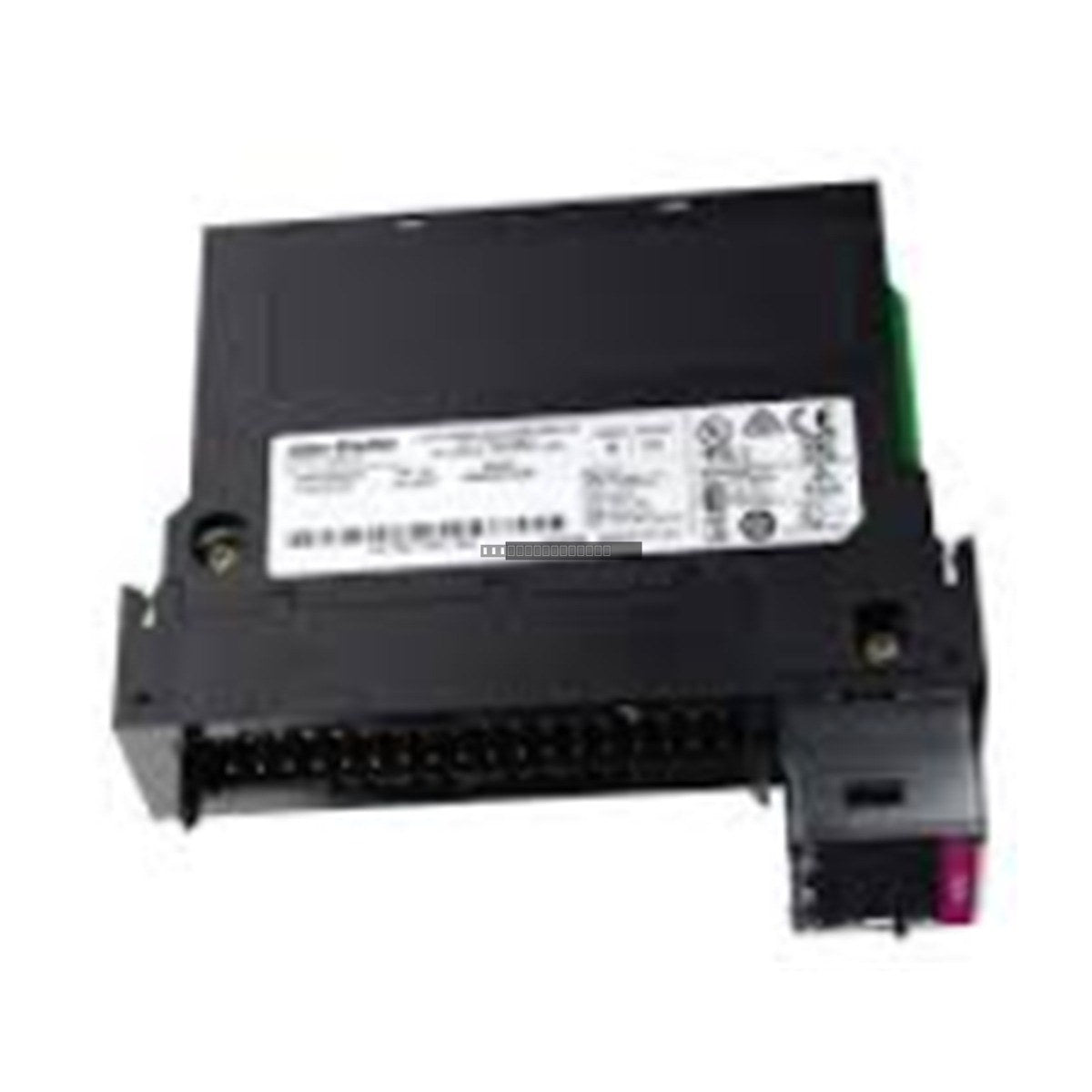

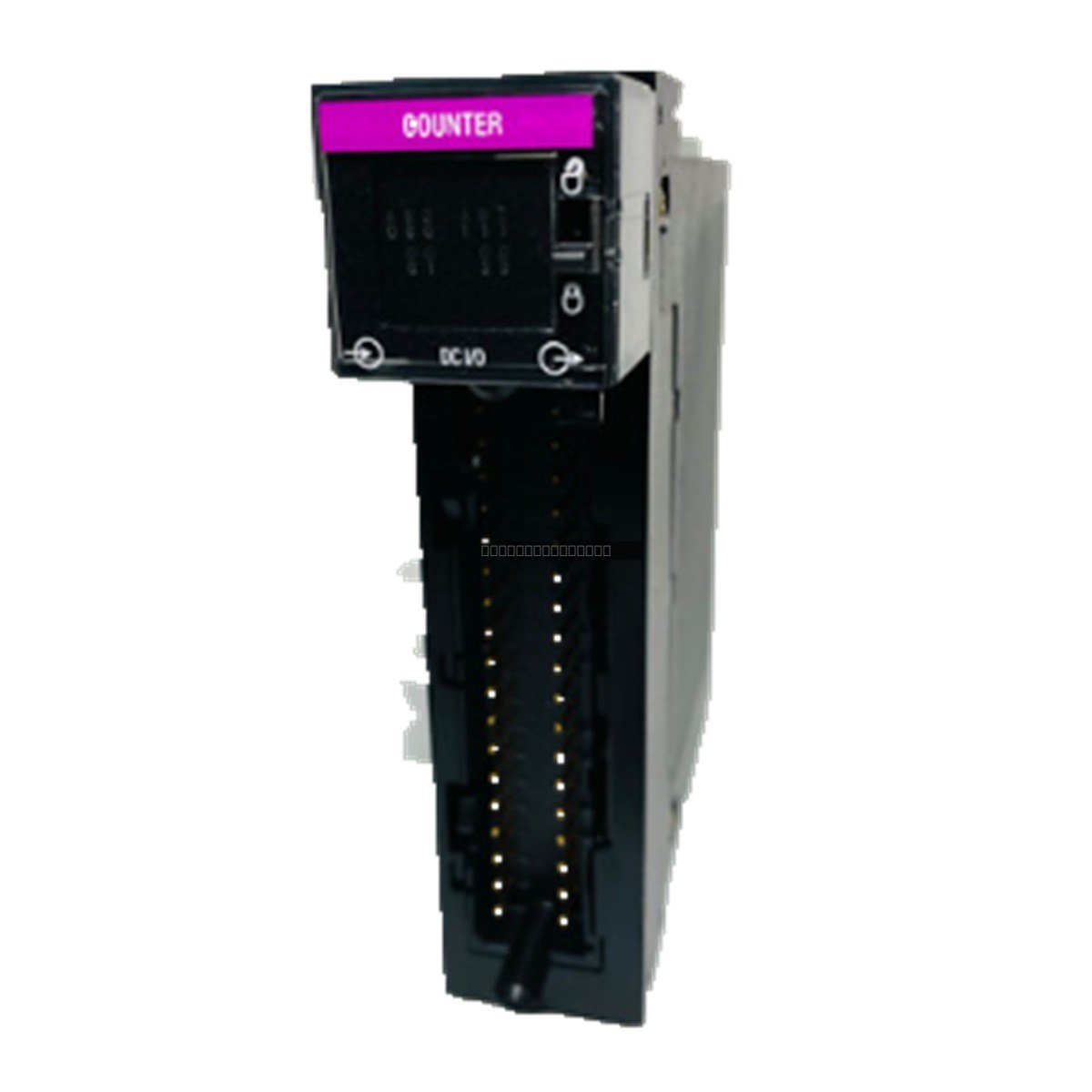

The Allen-Bradley 1756-HSC is a high-performance input module designed for the ControlLogix platform, specifically engineered to handle high-speed pulse counting and encoder interfacing. This module provides precise monitoring for industrial applications requiring rapid count acquisition, such as motion control, flow metering, and high-speed production line tracking. It integrates directly into the ControlLogix chassis, allowing for seamless communication with the CPU and other I/O modules across the backplane.
Features
Supports high-speed counting with a wide range of up to 16,214,777.
Equipped with 3 inputs per counter and 4 output points for versatile control.
Compatible with 1756-TBCH and 1756-TBS6H removable terminal blocks for efficient wiring and maintenance.
Optimized for low power consumption with a maximum dissipation of 5.6 Watts at 60 degC.
Flexible installation; the module can be mounted in any available slot within a ControlLogix chassis.
Technical Specifications
Product Model
1756-HSC
Module Type
High Speed Counter
Backplane Current (5V)
300 mA
Backplane Current (24V)
3 mA
Max Power Dissipation
5.6 W at 60 degC
Count Range
0 to 16,214,777
Compatible RTB
1756-TBCH, 1756-TBS6H
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-HSC module to prevent electrical damage.
Verify that the module is fully seated and the locking mechanism is engaged to ensure reliable backplane communication.
Use shielded cabling for all high-speed input signals to minimize electromagnetic interference (EMI).
Maintain proper ventilation in the control cabinet to keep the ambient temperature below the maximum rated operating threshold.
Always follow standard ESD (Electrostatic Discharge) mitigation practices when handling the module to protect sensitive internal circuitry.
FAQ
What is the primary function of the 1756-HSC? The 1756-HSC is designed to count high-speed pulses from devices such as encoders or flow meters and report that data to the ControlLogix processor for real-time monitoring and control.
Which terminal blocks are compatible with this module? This module is compatible with the 1756-TBCH and 1756-TBS6H removable terminal blocks.
Does the module require external power? The module draws its power from the ControlLogix backplane; please refer to the technical specifications for current draw requirements at 5V and 24V.
