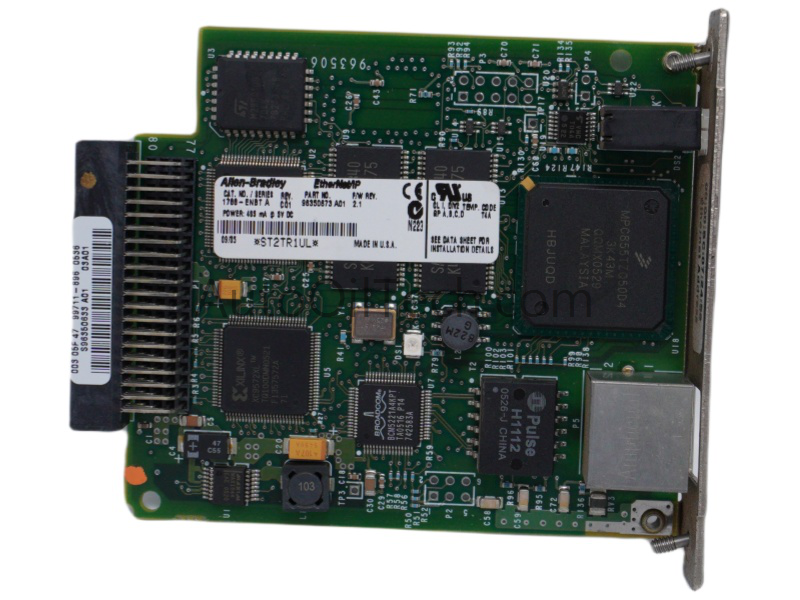

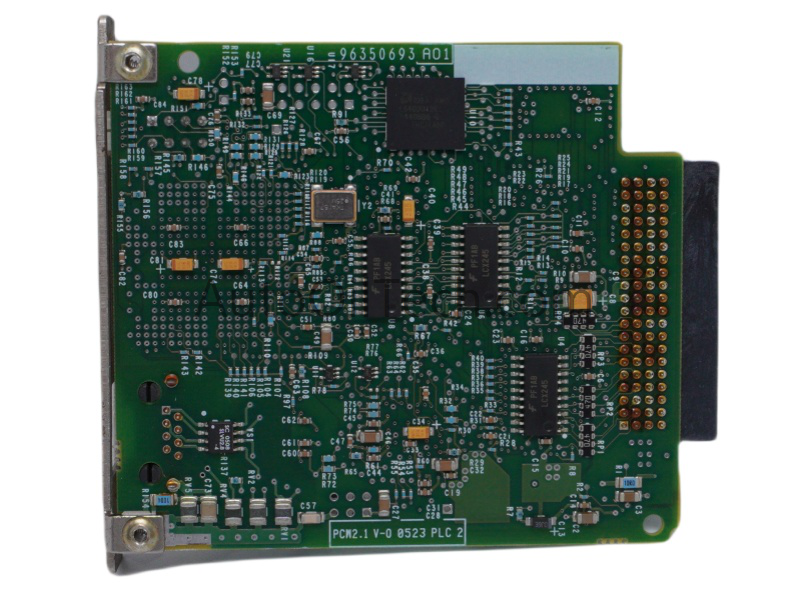

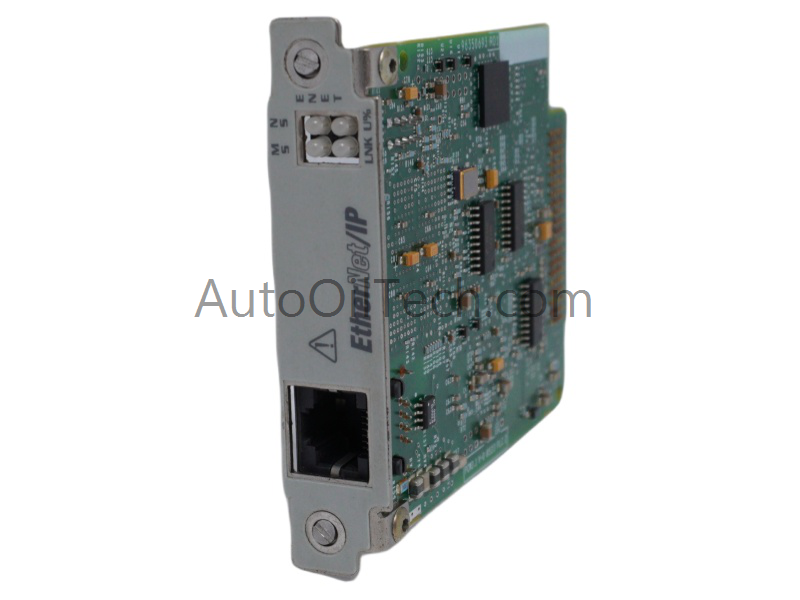

The 1756-ENBT Ethernet/IP Communication Module by Allen-Bradley is a high-performance bridge module for ControlLogix systems. It enables real-time data exchange across industrial networks with support for up to 128 simultaneous Logix connections and CIP Safety bridging, making it essential for scalable, safety-critical automation architectures.
Technical Specifications
Parameter
Value
Manufacturer
Allen-Bradley
Model Number
1756-ENBT
Module Type
Ethernet/IP Communication Module
Product Range
ControlLogix Series
Communication Speed
10/100 Mbps
Supported Connections
Up to 128 Logix connections
CIP Safety Bridging
Supported
Power Supply Requirement
24V DC
Power Consumption
3mA
Network Topology
Dual-port, supports daisy-chaining
Diagnostics
Advanced status and fault monitoring
Integration
Compatible with GuardLogix SIL3/PLe systems
Dimensions (W×H×D)
5.7 × 10.5 × 13 cm
Weight
0.2 kg
HS Code
8537101190
System Compatibility
PLC (ControlLogix)
Product Origin
USA
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
Enables high-speed Ethernet/IP communication for ControlLogix controllers and HMIs.
Supports up to 128 simultaneous connections for scalable system integration.
CIP Safety bridging extends safety control across multiple zones.
