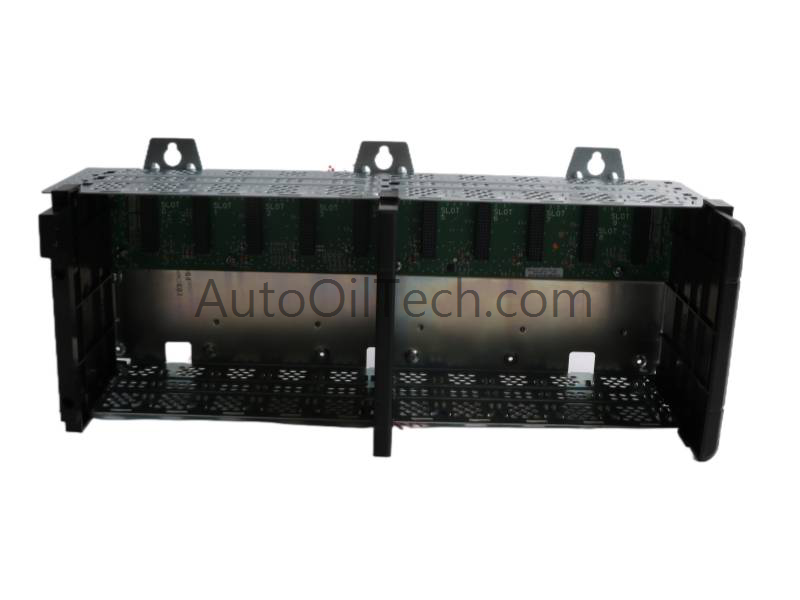

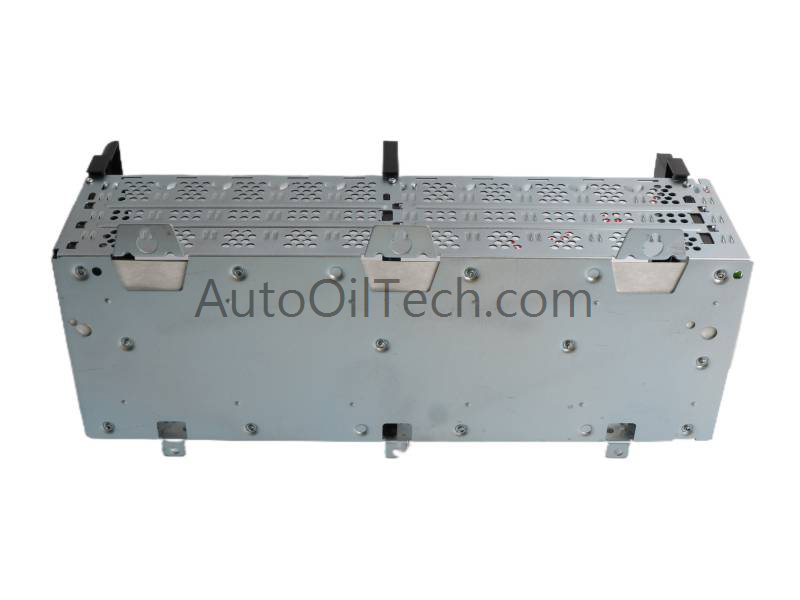

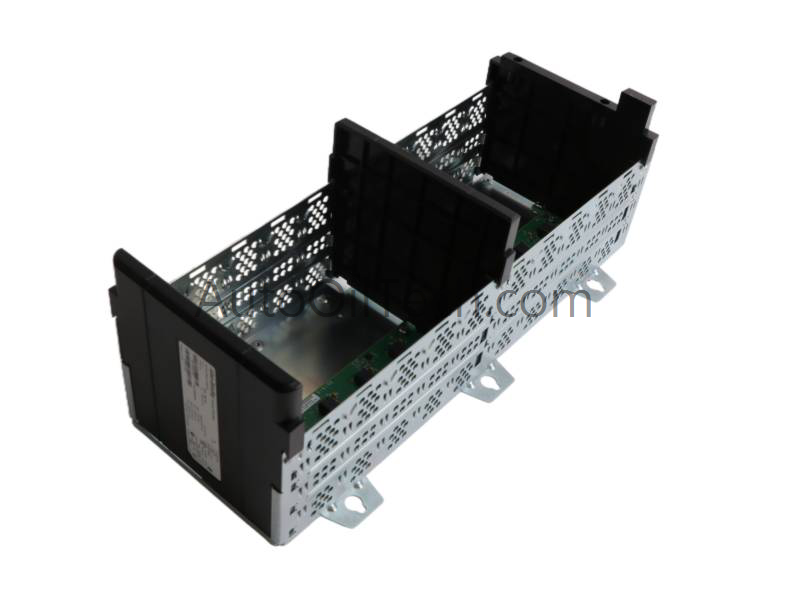

The Allen-Bradley 1756-A10 ControlLogix Chassis provides a 10-slot backplane for housing ControlLogix modules. It distributes both 5V and 24V power across installed modules, ensuring reliable operation in industrial automation systems. The 1756-A10 supports flexible module combinations, enabling engineers to build scalable PLC architectures for complex control applications.
Technical Specifications
Parameter
Value
Model Number
1756-A10
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
ControlLogix Chassis
Slots Available
10
Backplane Current (5V)
15A
Backplane Current (24V)
2.8A
Mounting
Panel or cabinet installation
Dimensions
3.5 × 13 × 14.5 cm
Weight
0.9 kg
System
PLC
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
The Allen-Bradley 1756-A10 provides mechanical support and electrical backplane connectivity for ControlLogix modules.
Distributes regulated 5V and 24V power to all installed modules.
Supports a wide range of ControlLogix processors, communication adapters, and I/O modules.
Designed for panel or cabinet mounting, ensuring easy integration into industrial control systems.
Compact and durable construction suitable for demanding automation environments.
